TP-Link TL-SG3210XHP-M2 2.6
Hardware Highlights
The TL-SG3210XHP-M2 (bigboi) is an 10 port PoE switch with 8 x 2.5G PoE ports and two SFP+ cages.
Hardware Details
It is based on a Marvel Alleycat3 SOC, with PJ4B CPU running at 800MHz. Firmware is stored on a 256 Mbit SPI NOR flash, and other ICs:
- Winbond 25Q256JVFQ SPI flash
- CA-IS3741HW isolator IC (3 TX, 1 RX)
- (2) MP3924 quad-port PoE controllers
- ...

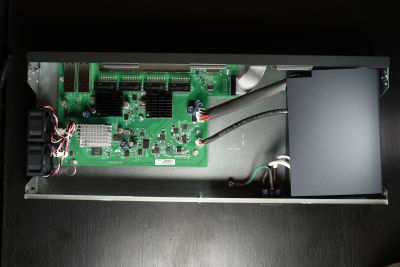

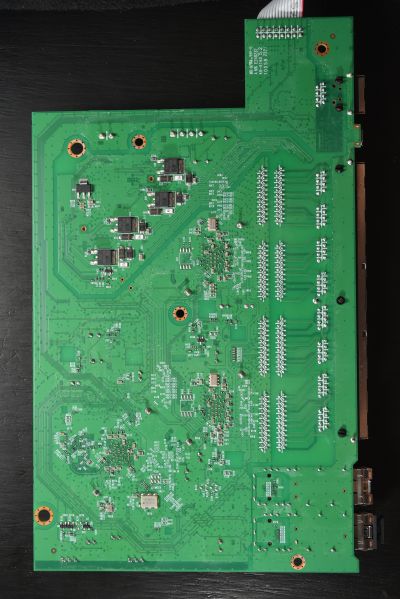

Device Photos
