Cudy AP3000 v1
The Cudy AP3000 v1 is an Indoor Wifi6 Ceiling / Wall Access Point with 1x 2.5GB LAN Port. It has 2 antennas for the 2.4GHz band and 3 antennas for the 5GHz band. The Power Option includes 12V DC (1.5A), 802.3at (PoE+) as well as passive PoE. shop listings often call the device with an additional letter P, so “Cudy AP3000_P” is just an alias.
Supported Versions
Experimental Versions
None at this time.
Hardware Highlights
Installation
See OEM easy installation for a guide on how to install OpenWrt after unboxing the device
As of jan. 2026, some devices are shipped with an alternate chip for single LAN port. Latest OpenWrt 24.10.5 image won't detect this chip (supported in upcoming 24.10.6). This is fixed by a commit in main (04 feb. 2026) and 25.12.0-rc5: image must include the kmod-phy-motorcomm driver. It would have been smarter from Cudy to create a v2 for this device rather than changing the hardware without noticing the user. Info in the commits: https://github.com/openwrt/openwrt/commit/8d407de4910712213afff1919830b3fe5c33e1b4 https://github.com/openwrt/openwrt/commit/31f30f5a6cffa2046328a933ed8063e9f8fc30b2
Flash Layout
root@OpenWrt:/# cat /proc/mtd dev: size erasesize name mtd0: 00100000 00020000 "bl2" mtd1: 00080000 00020000 "u-boot-env" mtd2: 00200000 00020000 "factory" mtd3: 00040000 00020000 "bdinfo" mtd4: 00200000 00020000 "fip" mtd5: 04000000 00020000 "ubi"
OEM easy installation
Note: Reset router to factory defaults if it has been previously configured.
- Download the appropriate Cudy-signed OpenWrt image from Cudy's Google Disk or ask the Cudy Support to send you the file
- Download the latest OpenWrt stable sysupgrade image
- Browse to
http://192.168.10.254/ - Choose a password. This won't be needed later
- Navigate to
http://192.168.10.254/cgi-bin/luci/admin/panel - Click on the Firmware button
- Upload the Cudy-signed OpenWrt image
- Click on the proceed button
- Wait for the device to reboot
- SSH to 192.168.1.1 or browse to
http://192.168.1.1 - Flash the latest OpenWrt stable sysupgrade image
OEM installation using the TFTP method
TFTP is only available since Stock Firmware Version 2.4.7. It is necessary to install the stock firmware in order for U-Boot to be updated.
Instructions:
- Give yourself the IP
192.168.1.88 - Configure your TFTP Server to serve the firmware file as
recovery.bin - Press and hold the reset button on the device
- Power on the device
- The device will be reachable under
192.168.1.112 - When the TFTP Upload starts you can release the reset button
U-Boot env info (on a firmware Version before 2.4.7):
MT7981> env print baudrate=115200 bootdelay=2 ethact=ethernet@15100000 ethaddr=fe:b8:08:27:1d:6d fdtcontroladdr=5ffc3a00 ipaddr=192.168.1.112 loadaddr=0x46000000 netmask=255.255.255.0 serverip=192.168.1.88 stderr=serial@11002000 stdin=serial@11002000 stdout=serial@11002000 Environment size: 257/131068 bytes
Upgrading OpenWrt
Debricking
Failsafe mode
The failsafe mode has the limitation of only working with IPv6. You need to find out the IPv6 link-local address of your specific device in order to reach it. IPv4 is not working, likely due to a bug, as there is no IPv4 address set on the lan interface when in failsafe mode
Basic configuration
→ Basic configuration After flashing, proceed with this.
Set up your Internet connection, configure wireless, configure USB port, etc.
Specific Configuration
Network interfaces
The default network configuration is:
| Interface Name | Description | Default configuration |
|---|---|---|
| br-lan | LAN & WiFi | 192.168.1.1/24 |
| eth0 | 2.5GBit Ethernet LAN Port | part of the br-lan |
| radio0 | 2.4GHz Radio | Disabled |
| radio1 | 5GHz Radio | Disabled |
Switch Ports (for VLANs)
The device has no switch ports
Buttons
→ hardware.button on howto use and configure the hardware button(s).
The Cudy AP3000 has the following buttons:
| BUTTON | Event |
|---|---|
| Reset | reset |
Hardware
Info
- This table is automatically generated, once the correct filters for Brand and Model are set.
- If you see “Nothing.” instead of a table, please edit this section and adjust the filters with the proper Brand and Model. Just try, it's easy.
- If you still don't see a table here, or a table filled with '¿': Is there already a Techdata page available for Cudy AP3000 v1? If not: Create one.
- If you see a table with the desired device data, everything is OK and you can delete this text and the
<WRAP>that encloses it. - If it still doesn't work: Don't panic, calm down, take a deep breath and contact a wiki admin (tmomas) for help.
---- datatemplatelist dttpllist ---- template: meta:template_datatemplatelist cols : Brand, Model, Versions, Device Type, Availability, Supported Since Commit_git, Supported since Rel, Supported current Rel, Unsupported, Bootloader, CPU, Target, CPU MHz, Flash MBs, RAM MB, Switch, Ethernet 100M ports_, Ethernet Gbit ports_, Comments network ports_, Modem, VLAN, WLAN 2.4GHz, WLAN 5.0GHz, WLAN Hardwares, WLAN Comments_, Detachable Antennas_, USB ports_, SATA ports_, Comments USB SATA ports_, Serial, JTAG, LED count, Button count, Power supply, Device Techdata_pageid, Forum topic URL_url, wikidevi URL_url, OEM Device Homepage URL_url, Firmware OEM Stock URL_url, Firmware OpenWrt Install URL_url, Firmware OpenWrt Upgrade URL_url, Comments_ filter : Brand=Cudy filter : Model=AP3000 filter : Versions=v1
Photos
Front view of the device:
Bottom of the device including the ports:
Device Label:
Front of PCB with heatsink:

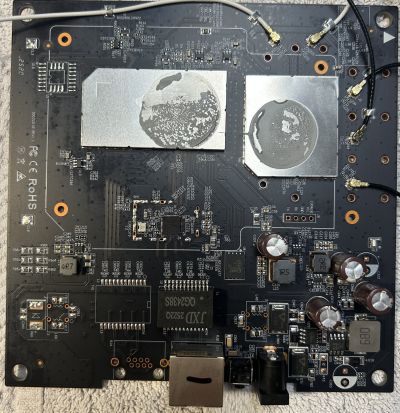

Front of PCB without heatsink:

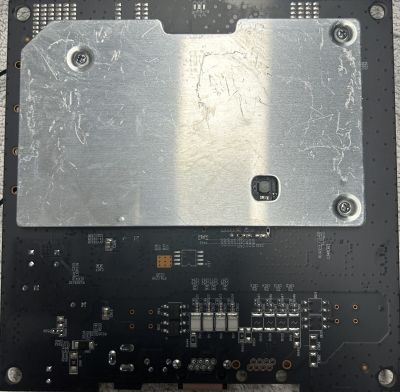

Back of PCB with shield:

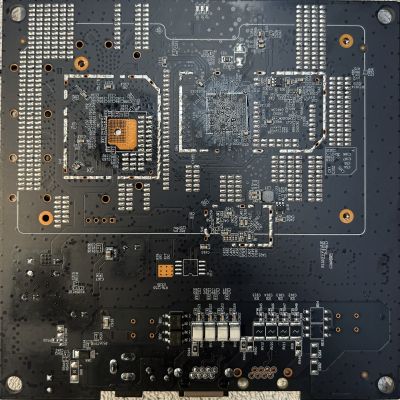

Back of PCB without shield:
Opening the case
→ Warranty
To open the device unscrew the two cross screws at the bottom of the device. The top case is clipped in so you can use a flat tool get in between the top and the main case and lift the top case up.
Device with case openend:
Serial
→ port.serial general information about the serial port, serial port cable, etc.

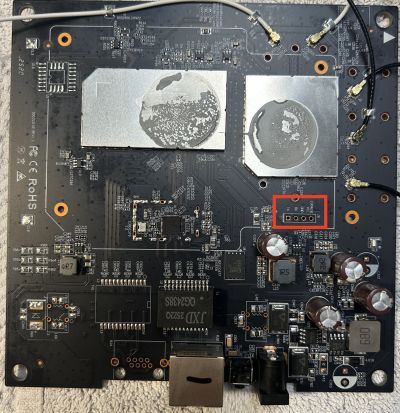

How to connect to the Serial Port of this specific device:
The pins are located on the top of the PCB under the heatsink. You need to remove the heatsink in order to reach the pins.
| Serial connection parameters for Cudy AP3000 v1 | 115200, 8N1, 3.3V |
|---|
Bootlogs
OEM bootlog
AP3000 | R49 | 80AFCABBCCB8 | 2.2.7-20240911-151101
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 0.000000] Linux version 5.4.246 (jenkins@release_server) (gcc version 8.4.0 (OpenWrt GCC 8.4.0 2.2.7)) #0 SMP Tue Sep 10 07:22:10 2024
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] Machine model: MediaTek MT7981 RFB/R49
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] earlycon: uart8250 at MMIO32 0x0000000011002000 (options '')
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] printk: bootconsole [uart8250] enabled
Thu Jan 22 10:34:32 2026 kern.debug kernel: [ 0.000000] On node 0 totalpages: 130048
Thu Jan 22 10:34:32 2026 kern.debug kernel: [ 0.000000] DMA32 zone: 2048 pages used for memmap
Thu Jan 22 10:34:32 2026 kern.debug kernel: [ 0.000000] DMA32 zone: 0 pages reserved
Thu Jan 22 10:34:32 2026 kern.debug kernel: [ 0.000000] DMA32 zone: 130048 pages, LIFO batch:31
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] psci: probing for conduit method from DT.
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] psci: PSCIv1.1 detected in firmware.
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] psci: Using standard PSCI v0.2 function IDs
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] psci: SMC Calling Convention v1.0
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] percpu: Embedded 20 pages/cpu s44120 r8192 d29608 u81920
Thu Jan 22 10:34:32 2026 kern.debug kernel: [ 0.000000] pcpu-alloc: s44120 r8192 d29608 u81920 alloc=20*4096
Thu Jan 22 10:34:32 2026 kern.debug kernel: [ 0.000000] pcpu-alloc: [0] 0 [0] 1
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] Detected VIPT I-cache on CPU0
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] CPU features: detected: GIC system register CPU interface
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 128000
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 0.000000] Kernel command line: console=ttyS0,115200n1 loglevel=8 earlycon=uart8250,mmio32,0x11002000
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] Dentry cache hash table entries: 65536 (order: 7, 524288 bytes, linear)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] Inode-cache hash table entries: 32768 (order: 6, 262144 bytes, linear)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] Memory: 491584K/520192K available (6974K kernel code, 380K rwdata, 1964K rodata, 448K init, 288K bss, 28608K reserved, 0K cma-reserved)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] rcu: Hierarchical RCU implementation.
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] rcu: CONFIG_RCU_FANOUT set to non-default value of 32.
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] GICv3: 640 SPIs implemented
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] GICv3: 0 Extended SPIs implemented
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] GICv3: Distributor has no Range Selector support
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] GICv3: 16 PPIs implemented
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] GICv3: no VLPI support, no direct LPI support
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x000000000c080000
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] arch_timer: cp15 timer(s) running at 13.00MHz (phys).
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2ff89eacb, max_idle_ns: 440795202429 ns
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.000003] sched_clock: 56 bits at 13MHz, resolution 76ns, wraps every 4398046511101ns
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.008204] Calibrating delay loop (skipped), value calculated using timer frequency.. 26.00 BogoMIPS (lpj=52000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.018524] pid_max: default: 32768 minimum: 301
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.023251] Mount-cache hash table entries: 1024 (order: 1, 8192 bytes, linear)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.030603] Mountpoint-cache hash table entries: 1024 (order: 1, 8192 bytes, linear)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.039308] ASID allocator initialised with 65536 entries
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.044816] rcu: Hierarchical SRCU implementation.
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.049950] smp: Bringing up secondary CPUs ...
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.054828] Detected VIPT I-cache on CPU1
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.054849] GICv3: CPU1: found redistributor 1 region 0:0x000000000c0a0000
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.054872] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.054934] smp: Brought up 1 node, 2 CPUs
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.076547] SMP: Total of 2 processors activated.
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.081273] CPU features: detected: 32-bit EL0 Support
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.086435] CPU features: detected: CRC32 instructions
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.091705] CPU: All CPU(s) started at EL2
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.095827] alternatives: patching kernel code
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.102694] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.112508] futex hash table entries: 512 (order: 3, 32768 bytes, linear)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.119412] pinctrl core: initialized pinctrl subsystem
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.125337] NET: Registered protocol family 16
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.130025] DMA: preallocated 256 KiB pool for atomic allocations
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 0.152786] SCSI subsystem initialized
Thu Jan 22 10:34:32 2026 kern.debug kernel: [ 0.156701] libata version 3.00 loaded.
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.160863] usbcore: registered new interface driver usbfs
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.166426] usbcore: registered new interface driver hub
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.171808] usbcore: registered new device driver usb
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.177695] Bluetooth: Core ver 2.22
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.181338] NET: Registered protocol family 31
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.185805] Bluetooth: HCI device and connection manager initialized
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.192196] Bluetooth: HCI socket layer initialized
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.197097] Bluetooth: L2CAP socket layer initialized
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.202178] Bluetooth: SCO socket layer initialized
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.207327] rbus 18000000.wbsys: PCI host bridge to bus 0000:00
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.213287] pci_bus 0000:00: root bus resource [mem 0x18000000-0x18ffffff]
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.220198] pci_bus 0000:00: root bus resource [bus 00-ff]
Thu Jan 22 10:34:32 2026 kern.debug kernel: [ 0.225709] pci_bus 0000:00: scanning bus
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.229748] pci 0000:00:00.0: [14c3:7981] type 00 class 0x000280
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.235793] pci 0000:00:00.0: reg 0x10: [mem 0x18000000-0x1800000f 64bit]
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.242616] pci 0000:00:00.0: reg 0x18: [mem 0x00000000-0x0000000f]
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.248914] pci 0000:00:00.0: reg 0x1c: [mem 0x00000000-0x0000000f]
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.255212] pci 0000:00:00.0: reg 0x20: [mem 0x00000000-0x0000000f]
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.261510] pci 0000:00:00.0: reg 0x24: [mem 0x00000000-0x0000000f]
Thu Jan 22 10:34:32 2026 kern.debug kernel: [ 0.268725] pci_bus 0000:00: fixups for bus
Thu Jan 22 10:34:32 2026 kern.debug kernel: [ 0.272933] pci_bus 0000:00: bus scan returning with max=00
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.279514] clocksource: Switched to clocksource arch_sys_counter
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.286261] thermal_sys: Registered thermal governor 'fair_share'
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.286264] thermal_sys: Registered thermal governor 'bang_bang'
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.292405] thermal_sys: Registered thermal governor 'step_wise'
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.298441] thermal_sys: Registered thermal governor 'user_space'
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.304476] thermal_sys: Registered thermal governor 'power_allocator'
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.310848] NET: Registered protocol family 2
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.321887] IP idents hash table entries: 8192 (order: 4, 65536 bytes, linear)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.329559] tcp_listen_portaddr_hash hash table entries: 256 (order: 0, 4096 bytes, linear)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.338000] TCP established hash table entries: 4096 (order: 3, 32768 bytes, linear)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.345812] TCP bind hash table entries: 4096 (order: 4, 65536 bytes, linear)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.353029] TCP: Hash tables configured (established 4096 bind 4096)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.359481] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.366055] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.373166] NET: Registered protocol family 1
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.377573] PCI: CLS 0 bytes, default 64
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.382322] workingset: timestamp_bits=46 max_order=17 bucket_order=0
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.391776] squashfs: version 4.0 (2009/01/31) Phillip Lougher
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.397657] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.420835] phy phy-usb-phy@11e10000.1: type_sw - reg 0x218, index 0
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.427676] gpio-export gpio_export: 1 gpio(s) exported
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.443274] Serial: 8250/16550 driver, 3 ports, IRQ sharing disabled
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.450377] printk: console [ttyS0] disabled
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.474794] 11002000.serial: ttyS0 at MMIO 0x11002000 (irq = 12, base_baud = 2500000) is a ST16650V2
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.484006] printk: console [ttyS0] enabled
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.492369] printk: bootconsole [uart8250] disabled
Thu Jan 22 10:34:32 2026 kern.warn kernel: [ 0.502733] cacheinfo: Unable to detect cache hierarchy for CPU 0
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.511130] loop: module loaded
Thu Jan 22 10:34:32 2026 kern.err kernel: [ 0.514413] mediatek,mt2701-ice_debug ice_debug: get dbg_sel clock fail: -2
Thu Jan 22 10:34:32 2026 kern.warn kernel: [ 0.521380] mediatek,mt2701-ice_debug: probe of ice_debug failed with error -2
Thu Jan 22 10:34:32 2026 kern.err kernel: [ 0.529538] mt7981-pinctrl 11d00000.pinctrl: pin_config_set op failed for pin 19
Thu Jan 22 10:34:32 2026 kern.err kernel: [ 0.536941] mtk-spi 1100a000.spi: Error applying setting, reverse things back
Thu Jan 22 10:34:32 2026 kern.err kernel: [ 0.544591] spi-nand spi0.0: Failed to calibrate SPI-NAND (err = -22)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.551175] spi-nand spi0.0: Micron SPI NAND was found. Flash Model: MT29F2G01ABAGD, ID: 2C24
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.559712] spi-nand spi0.0: 256 MiB, block size: 128 KiB, page size: 2048, OOB size: 128
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.570362] usbcore: registered new interface driver r8152
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.575911] usbcore: registered new interface driver ax88179_178a
Thu Jan 22 10:34:32 2026 kern.warn kernel: [ 0.582135] xhci-mtk 11200000.xhci: 11200000.xhci supply vbus not found, using dummy regulator
Thu Jan 22 10:34:32 2026 kern.warn kernel: [ 0.590772] xhci-mtk 11200000.xhci: 11200000.xhci supply vusb33 not found, using dummy regulator
Thu Jan 22 10:34:32 2026 kern.err kernel: [ 0.599663] phy phy-usb-phy@11e10000.0: try to get sw efuse
Thu Jan 22 10:34:32 2026 kern.err kernel: [ 0.605237] phy phy-usb-phy@11e10000.1: try to get sw efuse
Thu Jan 22 10:34:32 2026 kern.err kernel: [ 0.610800] phy phy-usb-phy@11e10000.1: try to get sw efuse+
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.616473] phy phy-usb-phy@11e10000.1: u3 efuse - intr 28, rx_imp 10, tx_imp f
Thu Jan 22 10:34:32 2026 kern.err kernel: [ 0.623810] phy_efuse_set set efuse, tx_imp f, rx_imp 10 intr 28
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.629895] xhci-mtk 11200000.xhci: xHCI Host Controller
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.635286] xhci-mtk 11200000.xhci: new USB bus registered, assigned bus number 1
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.645751] xhci-mtk 11200000.xhci: hcc params 0x01403f99 hci version 0x110 quirks 0x0000000000210010
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.655001] xhci-mtk 11200000.xhci: irq 89, io mem 0x11200000
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.660833] xhci-mtk 11200000.xhci: xHCI Host Controller
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.666145] xhci-mtk 11200000.xhci: new USB bus registered, assigned bus number 2
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.673625] xhci-mtk 11200000.xhci: Host supports USB 3.2 Enhanced SuperSpeed
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.681123] hub 1-0:1.0: USB hub found
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.684909] hub 1-0:1.0: 1 port detected
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.689197] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.697638] hub 2-0:1.0: USB hub found
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.701421] hub 2-0:1.0: 1 port detected
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.705851] usbcore: registered new interface driver uas
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.711242] usbcore: registered new interface driver usb-storage
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.717369] i2c /dev entries driver
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.721791] mtk-wdt 1001c000.watchdog: Watchdog enabled (timeout=31 sec, nowayout=0)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.729786] device-mapper: ioctl: 4.41.0-ioctl (2019-09-16) initialised: dm-devel@redhat.com
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.738341] Bluetooth: HCI UART driver ver 2.3
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.742806] Bluetooth: HCI UART protocol H4 registered
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.747935] Bluetooth: HCI UART protocol BCSP registered
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.753335] Bluetooth: HCI UART protocol Broadcom registered
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.759005] Bluetooth: HCI UART protocol QCA registered
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.766403] NET: Registered protocol family 10
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.771561] Segment Routing with IPv6
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.775256] NET: Registered protocol family 17
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 0.779763] Bridge firewalling registered
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.783766] 8021q: 802.1Q VLAN Support v1.8
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.797114] nmbm nmbm_spim_nand: Signature found at block 2047 [0x0ffe0000]
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.805130] nmbm nmbm_spim_nand: First info table with writecount 0 found in block 1920
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.816182] nmbm nmbm_spim_nand: Second info table with writecount 0 found in block 1923
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.824299] nmbm nmbm_spim_nand: NMBM has been successfully attached
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 0.830932] 6 fixed-partitions partitions found on MTD device nmbm_spim_nand
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 0.837986] Creating 6 MTD partitions on "nmbm_spim_nand":
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 0.843469] 0x000000000000-0x000000100000 : "BL2"
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 0.848717] 0x000000100000-0x000000180000 : "u-boot-env"
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 0.854528] 0x000000180000-0x000000380000 : "Factory"
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 0.860088] 0x000000380000-0x0000003c0000 : "bdinfo"
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 0.865604] 0x0000003c0000-0x0000005c0000 : "FIP"
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 0.870804] 0x0000005c0000-0x0000045c0000 : "ubi"
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.876524] [mtk_hw_init] reset_lock:0, force:0
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.881090] [mtk_hw_init] execute fe cold reset
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.896630] mtk_soc_eth 15100000.ethernet: MDC is running on 2500000 Hz
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.941676] MediaTek MT7981 PHY mdio-bus:00: TX-VCM SW cal result: 0x3
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.950138] mtk_soc_eth 15100000.ethernet eth0: mediatek frame engine at 0xffffffc011980000, irq 79
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 0.959810] mtk_soc_eth 15100000.ethernet eth1: mediatek frame engine at 0xffffffc011980000, irq 79
Thu Jan 22 10:34:32 2026 kern.err kernel: [ 0.968864] (unnamed net_device) (dummy): netif_napi_add() called with weight 256
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 0.976789] UBI: auto-attach mtd6
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 0.980182] ubi0: attaching mtd6
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 1.154254] ubi0: scanning is finished
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 1.162437] ubi0: attached mtd6 (name "ubi", size 64 MiB)
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 1.167839] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 1.174707] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 1.181488] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 1.188439] ubi0: good PEBs: 512, bad PEBs: 0, corrupted PEBs: 0
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 1.194435] ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 1.201646] ubi0: max/mean erase counter: 2/0, WL threshold: 4096, image sequence number: 1725952930
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 1.210764] ubi0: available PEBs: 0, total reserved PEBs: 512, PEBs reserved for bad PEB handling: 38
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 1.219977] ubi0: background thread "ubi_bgt0d" started, PID 658
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 1.220714] block ubiblock0_1: created from ubi0:1(rootfs)
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 1.231475] ubiblock: device ubiblock0_1 (rootfs) set to be root filesystem
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 1.238430] hctosys: unable to open rtc device (rtc0)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 1.246811] VFS: Mounted root (squashfs filesystem) readonly on device 253:0.
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 1.254155] Freeing unused kernel memory: 448K
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 1.271556] Run /sbin/init as init process
Thu Jan 22 10:34:32 2026 user.info kernel: [ 1.488811] init: Console is alive
Thu Jan 22 10:34:32 2026 user.info kernel: [ 1.492359] init: - watchdog -
Thu Jan 22 10:34:32 2026 user.info kernel: [ 1.928663] kmodloader: loading kernel modules from /etc/modules-boot.d/*
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 1.952309] conninfra@(mtk_conninfra_drv_init:644) Before platform_driver_register
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 1.960000] Get Index(0-TOP_MISC_BASE) phy_addr(0x11d10000) vir_addr=(0xffffffc010b05000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 1.969387] Get Index(1-TOPRGU_BASE) phy_addr(0x1001c000) vir_addr=(0xffffffc010b0d000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 1.978593] Get Index(2-GPIO_BASE) phy_addr(0x11d00000) vir_addr=(0xffffffc010b0f000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 1.987627] Get Index(3-IOCFG_TR_BASE) phy_addr(0x11f00000) vir_addr=(0xffffffc010b11000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 1.997006] Get Index(4-IOCFG_TL_BASE) phy_addr(0x11f10000) vir_addr=(0xffffffc010b13000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.006388] Get Index(5-INFRACFG_AO_BASE) phy_addr(0x10003000) vir_addr=(0xffffffc010b15000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.016028] Get Index(6-CONN_INFRA_CFG_BASE) phy_addr(0x18001000) vir_addr=(0xffffffc010b17000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.025929] Get Index(7-CONN_INFRA_SYSRAM_BASE) phy_addr(0x18050000) vir_addr=(0xffffffc010b19000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.036088] Get Index(8-CONN_INFRA_CLKGEN_ON_TOP_BASE) phy_addr(0x18009000) vir_addr=(0xffffffc010b1b000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.046855] Get Index(9-CONN_HOST_CSR_TOP_BASE) phy_addr(0x18060000) vir_addr=(0xffffffc010b1d000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.057015] Get Index(10-CONN_INFRA_BUS_CR_BASE) phy_addr(0x1800e000) vir_addr=(0xffffffc010b1f000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.067262] Get Index(11-CONN_INFRA_RGU_BASE) phy_addr(0x18000000) vir_addr=(0xffffffc010b21000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.077249] Get Index(12-CONN_WT_SLP_CTL_REG_BASE) phy_addr(0x18005000) vir_addr=(0xffffffc010b23000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.087669] Get Index(13-INST2_CONN_WT_SLP_CTL_REG_BASE) phy_addr(0x18085000) vir_addr=(0xffffffc010b25000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.098609] Get Index(14-CONN_RF_SPI_MST_REG_BASE) phy_addr(0x18004000) vir_addr=(0xffffffc010b6e000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.109032] Get Index(15-INST2_CONN_RF_SPI_MST_REG_BASE) phy_addr(0x18084000) vir_addr=(0xffffffc010b70000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.119974] Get Index(16-CONN_SEMAPHORE_BASE) phy_addr(0x18070000) vir_addr=(0xffffffc010b80000) size=(0x10000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.130048] Get Index(17-CONN_AFE_CTL_BASE) phy_addr(0x18003000) vir_addr=(0xffffffc010b72000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.139861] Get Index(18-CONN_AFE_CTL_2ND_BASE) phy_addr(0x18083000) vir_addr=(0xffffffc010b74000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.150022] Get Index(19-WF_TOP_SLPPROT_ON_BASE) phy_addr(0x184c0000) vir_addr=(0xffffffc010ba0000) size=(0x10000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.160356] Get Index(20-WF_TOP_CFG_BASE) phy_addr(0x184b0000) vir_addr=(0xffffffc010b76000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.169996] Get Index(21-WF_MCU_CONFIG_LS_BASE) phy_addr(0x184f0000) vir_addr=(0xffffffc010b78000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.180161] Get Index(22-WF_MCU_BUS_CR_BASE) phy_addr(0x18400000) vir_addr=(0xffffffc010b7a000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.190061] Get Index(23-WF_MCUSYS_INFRA_BUS_FULL_U_DEBUG_CTRL_AO_BASE) phy_addr(0x18500000) vir_addr=(0xffffffc010b7c000) size=(0x1000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.202305] Get Index(24-WF_TOP_CFG_ON_BASE) phy_addr(0x184c0000) vir_addr=(0xffffffc010bd0000) size=(0x10000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.212292] conninfra@(consys_plt_hw_init:162) adie_cfg_type = 1, one_adie_dbdc = 1
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.219942] [emi_mng_init] gConEmiPhyBase = [0x47c80000] size = [0x100000] fw size = [0x100000] ops=[(____ptrval____)]
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.230726] conninfra@(mtk_conninfra_drv_init:650) After platform_driver_register
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.238596] ConnInfra Dev: init (0)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.243535] conninfra@(_consys_polling_chipid_int:306) Read CONNSYS HW IP version successfully! (0x02090000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.253386] conninfra@(connsys_d_die_cfg:377) D-die efuse: 0x00000000
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.260842] conninfra@(_connsys_a_die_cfg_7976:932) adie_idx[0], A-die CHIP ID = 0x7976, HW Version = 0x8a10
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.271660] conninfra@(consys_spi_write_nolock:513) addr=0x0a00, val=0xffffffff
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.279964] conninfra@(consys_spi_write_nolock:513) addr=0x04ac, val=0x0000001c
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.288266] conninfra@(consys_spi_write_nolock:513) addr=0x0144, val=0x00000002
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.297576] conninfra@(consys_spi_write_nolock:513) addr=0x0148, val=0x00000000
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.306885] conninfra@(consys_spi_write_nolock:513) addr=0x0148, val=0x43a60000
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.320224] conninfra@(connsys_a_die_efuse_read_nolock:749) efuse = [0x00000001, 0x00c40000, 0x008700bf, 0x00000000]
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.331737] conninfra@(consys_spi_write_nolock:513) addr=0x0144, val=0x00000002
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.341047] conninfra@(consys_spi_write_nolock:513) addr=0x0148, val=0x23a6003a
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.350358] conninfra@(consys_spi_write_nolock:513) addr=0x0148, val=0x63a7003a
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.363699] conninfra@(connsys_a_die_efuse_read_nolock:749) efuse = [0x00000001, 0x00c40000, 0x008700bf, 0x00000000]
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.375211] conninfra@(consys_spi_write_nolock:513) addr=0x0144, val=0x00000002
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.384520] conninfra@(consys_spi_write_nolock:513) addr=0x0148, val=0x23a7003a
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.393830] conninfra@(consys_spi_write_nolock:513) addr=0x0148, val=0x63ac003a
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.407169] conninfra@(connsys_a_die_efuse_read_nolock:749) efuse = [0x00000001, 0x00c40000, 0x008700bf, 0x00000000]
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.418680] conninfra@(consys_spi_write_nolock:513) addr=0x0038, val=0x4a563b00
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.426982] conninfra@(consys_spi_write_nolock:513) addr=0x065c, val=0x1d59080f
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.435283] conninfra@(consys_spi_write_nolock:513) addr=0x0664, val=0x34c00fe0
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.443590] conninfra@(consys_spi_write_nolock:513) addr=0x0070, val=0x88888005
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.452852] conninfra@(consys_spi_write_nolock:513) addr=0x0070, val=0x00000005
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.461087] conninfra@(_consys_polling_chipid_int:306) Read CONNSYS HW IP version successfully! (0x02090000)
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.470901] conninfra@(_consys_hw_conninfra_wakeup:470) conninfra_wakeup refcnt=[0]->[1] wakeup!!
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.479765] conninfra@(_consys_hw_conninfra_sleep:490) conninfra_sleep refcnt=[1]->[0] sleep!!
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.488364] conninfra@(opfunc_power_on_internal:241) [Conninfra Pwr On] BT=[0] FM=[0] GPS=[0] WF=[0] CONNINFRA=[1]
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.502638] mediatek_soc_hnat 15100000.hnat: wan = eth0
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.507881] mediatek_soc_hnat 15100000.hnat: lan = eth1
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.513100] mediatek_soc_hnat 15100000.hnat: lan2 = eth2
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.518403] mediatek_soc_hnat 15100000.hnat: ppd = eth1
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.523623] mediatek_soc_hnat 15100000.hnat: gmac num = 2
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.529013] mediatek_soc_hnat 15100000.hnat: mtketh-lan-gmac= 2
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.534924] mediatek_soc_hnat 15100000.hnat: mtketh-wan-gmac= 1
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.540835] mediatek_soc_hnat 15100000.hnat: ppe num = 1
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.546593] mediatek_soc_hnat 15100000.hnat: PPE0 entry number = 8192
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.563389] mediatek_soc_hnat 15100000.hnat: PPE0 hwnat start
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.569186] hnat roaming work enable
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.575837] warp_module_init(): module init and register callback for warp
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.582723] create warp_ctrl ok!!!
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.586160] wed_get_slot_map(): assign slot_id:0 for entry: 0!
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.591999] wed_get_slot_map(): assign slot_id:1 for entry: 1!
Thu Jan 22 10:34:32 2026 user.info kernel: [ 2.598299] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
Thu Jan 22 10:34:32 2026 user.info kernel: [ 2.608756] init: - preinit -
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.897741] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode
Thu Jan 22 10:34:32 2026 kern.info kernel: [ 2.906178] mtk_soc_eth 15100000.ethernet eth0: Link is Up - 2.5Gbps/Full - flow control rx/tx
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 2.921853] random: procd: uninitialized urandom read (4 bytes read)
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 2.975662] UBIFS (ubi0:2): Mounting in unauthenticated mode
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 2.981403] UBIFS (ubi0:2): background thread "ubifs_bgt0_2" started, PID 721
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 3.001417] UBIFS (ubi0:2): recovery needed
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 3.066931] UBIFS (ubi0:2): recovery completed
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 3.071435] UBIFS (ubi0:2): UBIFS: mounted UBI device 0, volume 2, name "rootfs_data"
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 3.079261] UBIFS (ubi0:2): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 3.089163] UBIFS (ubi0:2): FS size: 42029056 bytes (40 MiB, 331 LEBs), journal size 2158592 bytes (2 MiB, 17 LEBs)
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 3.099584] UBIFS (ubi0:2): reserved for root: 1985135 bytes (1938 KiB)
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 3.106190] UBIFS (ubi0:2): media format: w5/r0 (latest is w5/r0), UUID 5B2AE467-9BAF-4CCC-9789-89915DD5FF89, small LPT model
Thu Jan 22 10:34:32 2026 user.info kernel: [ 3.121111] mount_root: switching to ubifs overlay
Thu Jan 22 10:34:32 2026 user.debug kernel: [ 3.130720] urandom-seed: Seeding with /etc/urandom.seed
Thu Jan 22 10:34:32 2026 user.info kernel: [ 3.227284] procd: - early -
Thu Jan 22 10:34:32 2026 user.info kernel: [ 3.230250] procd: - watchdog -
Thu Jan 22 10:34:32 2026 user.info kernel: [ 3.756569] procd: - watchdog -
Thu Jan 22 10:34:32 2026 user.info kernel: [ 3.762659] procd: - ubus -
Thu Jan 22 10:34:32 2026 kern.notice kernel: [ 3.806926] random: ubusd: uninitialized urandom read (4 bytes read)
Thu Jan 22 10:34:33 2026 kern.notice kernel: [ 3.816315] random: ubusd: uninitialized urandom read (4 bytes read)
Thu Jan 22 10:34:33 2026 user.info kernel: [ 3.823753] procd: - init -
Thu Jan 22 10:34:33 2026 kern.notice kernel: [ 3.923539] random: crng init done
Thu Jan 22 10:34:33 2026 kern.notice kernel: [ 3.926936] random: 17 urandom warning(s) missed due to ratelimiting
Thu Jan 22 10:34:33 2026 user.info kernel: [ 4.201154] urngd: v1.0.2 started.
Thu Jan 22 10:34:33 2026 user.info kernel: [ 4.215927] kmodloader: loading kernel modules from /etc/modules.d/*
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 4.240278] NET: Registered protocol family 15
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 4.246239] Initializing XFRM netlink socket
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 4.252743] tun: Universal TUN/TAP device driver, 1.6
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 4.273183] l2tp_core: L2TP core driver, V2.0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 4.279863] l2tp_netlink: L2TP netlink interface
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 4.285651] nat46: module (version 362640b41ae52b732d9e9729e61ac555492442a3) loaded.
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 4.294846] gre: GRE over IPv4 demultiplexor driver
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 4.301076] ip_gre: GRE over IPv4 tunneling driver
Thu Jan 22 10:34:33 2026 kern.warn kernel: [ 5.388032] mt_wifi: module license 'Proprietary' taints kernel.
Thu Jan 22 10:34:33 2026 kern.warn kernel: [ 5.394054] Disabling lock debugging due to kernel taint
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.438063] conninfra@(conninfra_pwr_on:120) [conninfra_pwr_on] drv=[3]
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.445644] conninfra@(_consys_polling_chipid_int:306) Read CONNSYS HW IP version successfully! (0x02090000)
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 5.463509] [1;32mAdie Type: 0x7976[0m
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 5.463511] [1;32mSKU Type: 3000[0m
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.467423] conninfra@(opfunc_power_on_internal:241) [Conninfra Pwr On] BT=[0] FM=[0] GPS=[0] WF=[1] CONNINFRA=[1]
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 5.481516] WiFi@C12L1,get_dbg_setting_by_profile() 4480: debug level setting=INDEX0_debug_level not found!!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 5.491352] WiFi@C12L1,get_dbg_setting_by_profile() 4503: debug option setting=INDEX0_debug_option not found!!
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 5.501409] mt_rbus 0000:00:00.0: runtime IRQ mapping not provided by arch
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 5.515257] mt7981_init()-->
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 5.518165] Use the default iPAiLNA bin image!
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 5.522644] <--mt7981_init()
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 5.525665] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX1
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 5.533008] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX2
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 5.540328] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX3
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 5.547645] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX4
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 5.554961] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX5
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 5.562277] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX6
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 5.569593] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX7
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 5.576909] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX8
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 5.584229] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX9
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 5.591787] mt7981 nlwifi attach OK
Thu Jan 22 10:34:33 2026 kern.warn kernel: [ 5.603556] mtk_warp_proxy: module uses symbols from proprietary module mt_wifi, inheriting taint.
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.636325] wireguard: WireGuard 1.0.20210219 loaded. See www.wireguard.com for information.
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.644799] wireguard: Copyright (C) 2015-2019 Jason A. Donenfeld <Jason@zx2c4.com>. All Rights Reserved.
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.668784] xt_time: kernel timezone is -0000
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.705550] PPP generic driver version 2.4.2
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.711047] PPP MPPE Compression module registered
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.716988] NET: Registered protocol family 24
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.722515] PPTP driver version 0.8.5
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.739352] l2tp_ppp: PPPoL2TP kernel driver, V2.0
Thu Jan 22 10:34:33 2026 user.info kernel: [ 5.749088] kmodloader: done loading kernel modules from /etc/modules.d/*
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.829454] client_get_axi_slot_id(): wrong BUS_TYPE
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.834454] warp_cap_support(): chip_id=7981 is in WHNAT support list
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.840895] warp_entry_acquire(): bus slot:0, hook to WARP, entry id=0, entry: 0000000018581ef1
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.849582] client_hif_specific_get(): hw->base_phy_addr 0x18000000!!
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.856012] client_chip_specific_get(): 0x7981 chip id 0x7981!!
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.862016] warp_entry_get_by_pdev(): return entry[0]
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.867226] warp_msg_register():warp,pid,1596,id,0,wed_idx,0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.872890] warp_dev0 15010000.wed: Using 32bit DMA for streaming map
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.879322] warp_dev0 15010000.wed: Using 32bit DMA for coherent map
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.885697] wed_init(0): res_start = 0x15010000, size = 1000, irq=7,base_addr=0xffffffc010bfe000
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.894867] wed_ring_init(): wed tx ring init result = 0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.900352] wed_ring_init(): wed rx ring init result = 0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.912575] create wed ok!!!
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.915473] wdma_init(): wdma(0) base_addr=0xffffffc010e4d800, base_phy_addr=0x15104800
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.924198] warp_woif_bus_init_hw(): bus:000000002ef10b84, txring: 20, pa: 0x00000000569a8000, 0x00000000569a8000, 24, 28, 3c
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.935514] warp_woif_bus_init_hw(): bus:000000002ef10b84, rxring: 50, pa: 0x00000000569aa000, 0x00000000569aa000, 54, 58, 6c
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.946831] get_region_info(): wed_idx = 0, base_addr = 0x00000000d1f53a33, size = 0x40000, res.start = 0x47d80000, shared:0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.958047] get_region_info(): wed_idx = 0, base_addr = 0x00000000b32f98b9, size = 0x8000, res.start = 0x151e0000, shared:0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.969202] get_region_info(): wed_idx = 0, base_addr = 0x00000000575486af, size = 0x240000, res.start = 0x47dc0000, shared:1
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.980502] get_region_info(): wed_idx = 0, base_addr = 0x00000000d9432fae, size = 0x1000, res.start = 0x15194000, shared:0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 5.991616] warp_fwdl_mcu_mode(): mcu mode, need fwdl
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.034863] ########## WO Firmware ##########
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.039262] Chip ID: 0x0000
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.042049] ECO version:0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.044665] Version: DEV_000000
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.047802] Build date: 20231228201845
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.051541] Total region:3
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.054235] #################################
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.058582] Parsing tailer region 0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.062061] Target address: 0x151e0000
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.065887] Download size: 22112
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.069221] Parsing tailer region 1
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.072701] Target address: 0x47d80000
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.076527] Download size: 86960
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.079915] Parsing tailer region 2
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.083389] Target address: 0x47dc0000
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.087217] Download size: 2345040
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.093025] warp_fwdl_ready_check_mcu_mode(): waiting for wocpu
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.114361] warp_fwdl_ready_check_mcu_mode(): wocpu is ready
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.120033] warp_woctrl_init_state(), wo_state: WO_STATE_ENABLE
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.125953] wo_proc_init done 00000000ef50624d
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.130477] wo_exep_proc_init done 00000000ef50624d
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.135461] wo_exception_init(0): exp log= 0x0000000021ca1013, phy_addr= 0x00000000566c8000 size= 32768
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.224161] WiFi@C12L1,RTMPWirelessModeCfg() 607: Init: BSS0 PhyMode=78
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.230775] WiFi@C12L1,RTMPWirelessModeCfg() 607: Init: BSS1 PhyMode=78
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.237380] WiFi@C12L1,RTMPWirelessModeCfg() 607: Init: BSS2 PhyMode=78
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.243985] WiFi@C12L1,RTMPWirelessModeCfg() 607: Init: BSS3 PhyMode=177
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.250677] WiFi@C12L1,RTMPWirelessModeCfg() 607: Init: BSS4 PhyMode=177
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.257369] WiFi@C12L1,RTMPWirelessModeCfg() 607: Init: BSS5 PhyMode=177
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.314362] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=0, Desired MFPC=1
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.321750] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=1, Desired MFPC=1
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.329135] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=2, Desired MFPC=1
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.336521] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=3, Desired MFPC=1
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.343906] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=4, Desired MFPC=1
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.351290] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=5, Desired MFPC=1
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.364913] WiFi@C12L1,rtmp_read_ap_client_from_file() 1635: APCLI[0] ApCliMuMimoDlEnable = 0
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.373426] WiFi@C12L1,rtmp_read_ap_client_from_file() 1635: APCLI[1] ApCliMuMimoDlEnable = 0
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.382116] WiFi@C12L1,rtmp_read_ap_client_from_file() 1654: APCLI[0] ApCliMuMimoUlEnable = 0
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.390632] WiFi@C12L1,rtmp_read_ap_client_from_file() 1654: APCLI[1] ApCliMuMimoUlEnable = 0
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.399519] WiFi@C03L1,AndesSendCmdMsg() 754: Could not send in band command due to diablefRTMP_ADAPTER_MCU_SEND_IN_BAND_CMD
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.410729] WiFi@C03L1,AndesSendCmdMsg() 754: Could not send in band command due to diablefRTMP_ADAPTER_MCU_SEND_IN_BAND_CMD
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.496265] wdma_dma_ctrl(): WDMA_GLO_CFG=50404e70, txrx = 0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.505493] wdma_dma_ctrl(): WDMA_GLO_CFG=40404e70, txrx = 0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.519614] warp_tx_ring_init_hw(): configure ring 0 setting
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.525277] warp_tx_ring_init_hw(): wed:00000000cd8ced55 wifi:000000008c2bfd65: 24420=57cd0000,24424=2048,24428=0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.535525] warp_tx_ring_init_hw(): configure ring 1 setting
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.541174] warp_tx_ring_init_hw(): wed:00000000cd8ced55 wifi:000000008c2bfd65: 24430=57d30000,24434=2048,24438=0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.551539] set_rrocfg,0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 6.576935] wdma_dma_ctrl(): WDMA_GLO_CFG=40404e74, txrx = 3
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.582584] using E1 ROM patch
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.585629] using E1 RAM
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.588162] current sync CR = 0x1
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.591465] Built date: 20231228201236a
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.595386] Platform: ALPS
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.598172] HW/SW version: 0x8a108a10
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.601914] Patch version: 0xffffffff
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.615998] current sync CR = 0x1
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.619301] Chip ID: 0x14
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.622006] Eco version: 0x00
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.625054] Region number: 0x0b
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.628274] Format version: 0x02
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.631581] Format flag: 0x01
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.634624] Ram version: ____000000
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.638194] Built date: 20231228201255
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.642027] Common crc: 0xb19053d0
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.645507] Release info: header tag = 0, total length = 64
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.651158] tag 1, padding length = 1, tag length = 59
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.656371] payload: t-neptune-main-mt7915-1953-MT7981_MP2111_IMP-20231228201156
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.684139] Chip ID: 0x00
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.686845] Eco version: 0x00
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.689903] Region number: 0x03
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.693126] Format version: 0x02
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.696442] Format flag: 0x01
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.699484] Ram version: DEV_000000
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.703056] Built date: 20231228201757
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.706890] Common crc: 0x9d94838d
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.710370] Release info: header tag = 0, total length = 0
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.801016] current sync CR = 0x7
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 6.804358] efuse_probe: efuse = deaddead
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 6.931266] WiFi@C02L1,is_cal_free_ic() 831: [32m[a-die version:1][m
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.293329] WiFi@C17L1,RTMPReadTxPwrPerRate() 450: (450): Don't Support this now!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.300862] WiFi@C01L1,AntCfgInit() 3165: Not support for HIF_MT yet!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.325225] WiFi@C17L1,tx_pwr_comp_init() 641: NotSupportYet!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.331054] WiFi@C12L1,SCS_init() 880: INIT SCSEnable [0]= 1
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.336728] WiFi@C12L1,SCS_init() 887: INIT SCSEnable [1]= 0
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.342691] WiFi@C14L1,IPMacTable_init() 348: IPMacTable already inited!
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 9.369567] wdma_dma_ctrl(): WDMA_GLO_CFG=50804e75, txrx = 3
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.375554] WiFi@C00L1,set_ack_timeout_mode_byband() 13556: CTS/ACK Timeout Range should between [0xFFFF:0]!!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.385459] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13644: DAT config band(0) cck_timeout Fail!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.394147] WiFi@C00L1,set_ack_timeout_mode_byband() 13556: CTS/ACK Timeout Range should between [0xFFFF:0]!!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.404049] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13655: DAT config band(0) ofdm_timeout Fail!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.412822] WiFi@C00L1,set_ack_timeout_mode_byband() 13556: CTS/ACK Timeout Range should between [0xFFFF:0]!!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.422723] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13666: DAT config band(0) ofdma_timeout Fail!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.431583] WiFi@C00L1,set_ack_timeout_mode_byband() 13556: CTS/ACK Timeout Range should between [0xFFFF:0]!!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.441485] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13644: DAT config band(1) cck_timeout Fail!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.450170] WiFi@C00L1,set_ack_timeout_mode_byband() 13556: CTS/ACK Timeout Range should between [0xFFFF:0]!!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.460071] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13655: DAT config band(1) ofdm_timeout Fail!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.468844] WiFi@C00L1,set_ack_timeout_mode_byband() 13556: CTS/ACK Timeout Range should between [0xFFFF:0]!!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.478744] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13666: DAT config band(1) ofdma_timeout Fail!
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 9.490067] phy_freq_adjust : no prim_ch value for adjust!
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 9.496506] phy_freq_adjust : no prim_ch value for adjust!
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 9.502050] phy_freq_adjust : no prim_ch value for adjust!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.639139] WiFi@C00L1,MtCmdCr4RedSet() 914: MtCmdCr4RedSet: (ret = 0)
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.646112] WiFi@C23L1,DfsBuildChannelList() 4093: [RDM]: wdev is not 5G.
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 9.652981] phy_freq_adjust : no prim_ch value for adjust!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 9.658764] WiFi@C23L1,HcGetBandByChannel() 1238: No hdev parking on channel:0, just return a default band_idx 0!
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 12.404732] WiFi@C23L1,DfsBuildChannelList() 4093: [RDM]: wdev is not 5G.
Thu Jan 22 10:34:33 2026 kern.err kernel: [ 12.490053] WiFi@C00L1,TxCCKStreamCtrl() 20928: set wrong parameters
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.506644] PrintSrCmd:
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.506644] u1CmdSubId = 1, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.506644] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.520687] PrintSrCmd:
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.520687] u1CmdSubId = 5, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.520687] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.534672] PrintSrCmd:
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.534672] u1CmdSubId = 3, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.534672] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.548663] PrintSrCmd:
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.548663] u1CmdSubId = 23, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.548663] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.562740] PrintSrCmd:
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.562740] u1CmdSubId = 31, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.562740] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.576818] PrintSrCmd:
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.576818] u1CmdSubId = 33, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.576818] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 12.590979] mtk_ppe_dev_register_hook : ineterface ra0 register (1)
Thu Jan 22 10:34:33 2026 kern.debug kernel: [ 12.597249] [mtf_txpower_all_rate_info] band_idx:0 pwr:46 ChBand:2G ePAGain:0
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 12.611044] extif_put_dev(ra0)
Thu Jan 22 10:34:33 2026 kern.info kernel: [ 12.614110] mtk_ppe_dev_unregister_hook : ineterface ra0 set null (1)
Thu Jan 22 10:34:33 2026 daemon.info hyfibr: hyfibr start
Thu Jan 22 10:34:33 2026 daemon.warn wireless[2784]: MSG_INFO: softapd start
Thu Jan 22 10:34:33 2026 daemon.info dnsmasq[2960]: Connected to system UBus
Thu Jan 22 10:34:33 2026 daemon.info dnsmasq[2960]: started, version 2.85 cachesize 150
Thu Jan 22 10:34:33 2026 daemon.info dnsmasq[2960]: DNS service limited to local subnets
Thu Jan 22 10:34:33 2026 daemon.info dnsmasq[2960]: compile time options: IPv6 GNU-getopt no-DBus UBus no-i18n regex(+ipset) no-IDN DHCP no-DHCPv6 no-Lua TFTP conntrack ipset no-auth no-cryptohash no-DNSSEC no-ID loop-detect inotify dumpfile
Thu Jan 22 10:34:33 2026 daemon.info dnsmasq[2960]: UBus support enabled: connected to system bus
Thu Jan 22 10:34:33 2026 daemon.info dnsmasq[2960]: using only locally-known addresses for domain test
Thu Jan 22 10:34:33 2026 daemon.info dnsmasq[2960]: using only locally-known addresses for domain onion
Thu Jan 22 10:34:33 2026 daemon.info dnsmasq[2960]: using only locally-known addresses for domain localhost
Thu Jan 22 10:34:33 2026 daemon.info dnsmasq[2960]: using only locally-known addresses for domain local
Thu Jan 22 10:34:33 2026 daemon.info dnsmasq[2960]: using only locally-known addresses for domain invalid
Thu Jan 22 10:34:33 2026 daemon.info dnsmasq[2960]: using only locally-known addresses for domain bind
Thu Jan 22 10:34:33 2026 daemon.info dnsmasq[2960]: using only locally-known addresses for domain lan
Thu Jan 22 10:34:33 2026 daemon.warn dnsmasq[2960]: no servers found in /tmp/resolv.conf.d/resolv.conf.auto, will retry
Thu Jan 22 10:34:33 2026 daemon.info dnsmasq[2960]: read /etc/hosts - 4 addresses
Thu Jan 22 10:34:33 2026 daemon.info dnsmasq[2960]: read /tmp/hosts/dhcp.cfg01411c - 0 addresses
Thu Jan 22 10:34:34 2026 user.notice : Added device handler type: bonding
Thu Jan 22 10:34:34 2026 user.notice : Added device handler type: 8021ad
Thu Jan 22 10:34:34 2026 user.notice : Added device handler type: 8021q
Thu Jan 22 10:34:34 2026 user.notice : Added device handler type: macvlan
Thu Jan 22 10:34:34 2026 user.notice : Added device handler type: veth
Thu Jan 22 10:34:34 2026 user.notice : Added device handler type: bridge
Thu Jan 22 10:34:34 2026 user.notice : Added device handler type: Network device
Thu Jan 22 10:34:34 2026 user.notice : Added device handler type: tunnel
Thu Jan 22 10:34:34 2026 user.notice wireless: procd[1]-->sh[3128]-->wifi reload_legacy
Thu Jan 22 10:34:34 2026 daemon.notice procd: /etc/init.d/network: wireless: procd[1]-->sh[3128]-->wifi reload_legacy
Thu Jan 22 10:34:34 2026 daemon.warn wireless[2784]: MSG_INFO: ubus_handle_wds down
Thu Jan 22 10:34:34 2026 daemon.warn wireless[2784]: MSG_INFO: ubus_handle_wds down
Thu Jan 22 10:34:34 2026 cron.err crond[3379]: crond (busybox 1.33.2) started, log level 5
Thu Jan 22 10:34:34 2026 kern.info kernel: [ 14.573331] mtk_soc_eth 15100000.ethernet eth0: Link is Down
Thu Jan 22 10:34:34 2026 kern.info kernel: [ 14.635024] mtk_soc_eth 15100000.ethernet eth1: PHY [mdio-bus:00] driver [MediaTek MT7981 PHY]
Thu Jan 22 10:34:34 2026 kern.info kernel: [ 14.647339] mtk_soc_eth 15100000.ethernet eth1: configuring for phy/gmii link mode
Thu Jan 22 10:34:34 2026 kern.info kernel: [ 14.666605] br-lan: port 1(eth1) entered blocking state
Thu Jan 22 10:34:34 2026 kern.info kernel: [ 14.671881] br-lan: port 1(eth1) entered disabled state
Thu Jan 22 10:34:34 2026 kern.info kernel: [ 14.677323] device eth1 entered promiscuous mode
Thu Jan 22 10:34:34 2026 kern.info kernel: [ 14.689438] br-lan: port 1(eth1) entered blocking state
Thu Jan 22 10:34:34 2026 kern.info kernel: [ 14.694692] br-lan: port 1(eth1) entered forwarding state
Thu Jan 22 10:34:34 2026 daemon.notice netifd: Interface 'lan' is enabled
Thu Jan 22 10:34:34 2026 daemon.notice netifd: Interface 'lan' is setting up now
Thu Jan 22 10:34:34 2026 daemon.notice netifd: Interface 'lan' is now up
Thu Jan 22 10:34:34 2026 daemon.notice netifd: bridge 'br-lan' link is up
Thu Jan 22 10:34:34 2026 daemon.notice netifd: Interface 'lan' has link connectivity
Thu Jan 22 10:34:34 2026 kern.info kernel: [ 14.708146] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode
Thu Jan 22 10:34:34 2026 kern.info kernel: [ 14.717244] mtk_soc_eth 15100000.ethernet eth0: Link is Up - 2.5Gbps/Full - flow control rx/tx
Thu Jan 22 10:34:34 2026 kern.info kernel: [ 14.726483] br-wan: port 1(eth0) entered blocking state
Thu Jan 22 10:34:34 2026 kern.info kernel: [ 14.731741] br-wan: port 1(eth0) entered disabled state
Thu Jan 22 10:34:34 2026 kern.info kernel: [ 14.737188] device eth0 entered promiscuous mode
Thu Jan 22 10:34:34 2026 kern.info kernel: [ 14.747856] br-wan: port 1(eth0) entered blocking state
Thu Jan 22 10:34:34 2026 kern.info kernel: [ 14.753095] br-wan: port 1(eth0) entered forwarding state
Thu Jan 22 10:34:34 2026 daemon.notice netifd: Interface 'wan' is enabled
Thu Jan 22 10:34:34 2026 daemon.notice netifd: bridge 'br-wan' link is up
Thu Jan 22 10:34:34 2026 daemon.notice netifd: Interface 'wan' has link connectivity
Thu Jan 22 10:34:34 2026 daemon.notice netifd: Interface 'wan' is setting up now
Thu Jan 22 10:34:34 2026 daemon.notice netifd: Interface 'loopback' is enabled
Thu Jan 22 10:34:34 2026 daemon.notice netifd: Interface 'loopback' is setting up now
Thu Jan 22 10:34:34 2026 daemon.notice netifd: Interface 'loopback' is now up
Thu Jan 22 10:34:34 2026 daemon.notice procd: /etc/init.d/hyfibrd: {
Thu Jan 22 10:34:34 2026 daemon.notice procd: /etc/init.d/hyfibrd: "bridge": "br-wan"
Thu Jan 22 10:34:34 2026 daemon.notice procd: /etc/init.d/hyfibrd: }
Thu Jan 22 10:34:34 2026 daemon.notice netifd: Network device 'eth0' link is up
Thu Jan 22 10:34:34 2026 daemon.notice netifd: Network device 'lo' link is up
Thu Jan 22 10:34:34 2026 daemon.notice netifd: Interface 'loopback' has link connectivity
Thu Jan 22 10:34:34 2026 daemon.info hyfibr: ubus init br-wan as relovr APS
Thu Jan 22 10:34:34 2026 user.notice wireless: iface { "iface": "eth0", "action": "join" }
Thu Jan 22 10:34:34 2026 daemon.notice netifd: wan (3551): udhcpc: started, v1.33.2
Thu Jan 22 10:34:34 2026 daemon.notice netifd: wan (3551): udhcpc: sending discover
Thu Jan 22 10:34:35 2026 kern.info kernel: [ 15.155060] device eth0 left promiscuous mode
Thu Jan 22 10:34:35 2026 kern.info kernel: [ 15.159586] br-wan: port 1(eth0) entered disabled state
Thu Jan 22 10:34:35 2026 kern.info kernel: [ 15.176999] mtk_soc_eth 15100000.ethernet eth0: Link is Down
Thu Jan 22 10:34:35 2026 daemon.notice netifd: Network device 'eth0' link is down
Thu Jan 22 10:34:35 2026 daemon.notice netifd: bridge 'br-wan' link is down
Thu Jan 22 10:34:35 2026 daemon.notice netifd: Interface 'wan' has link connectivity loss
Thu Jan 22 10:34:35 2026 kern.info kernel: [ 15.226384] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode
Thu Jan 22 10:34:35 2026 daemon.notice netifd: Network device 'eth0' link is up
Thu Jan 22 10:34:35 2026 kern.info kernel: [ 15.272470] mtk_soc_eth 15100000.ethernet eth0: Link is Up - 2.5Gbps/Full - flow control rx/tx
Thu Jan 22 10:34:35 2026 kern.info kernel: [ 15.281912] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
Thu Jan 22 10:34:35 2026 kern.info kernel: [ 15.309586] br-lan: port 2(eth0) entered blocking state
Thu Jan 22 10:34:35 2026 kern.info kernel: [ 15.314890] br-lan: port 2(eth0) entered disabled state
Thu Jan 22 10:34:35 2026 kern.info kernel: [ 15.320322] device eth0 entered promiscuous mode
Thu Jan 22 10:34:35 2026 kern.info kernel: [ 15.325036] br-lan: port 2(eth0) entered blocking state
Thu Jan 22 10:34:35 2026 kern.info kernel: [ 15.330317] br-lan: port 2(eth0) entered forwarding state
Thu Jan 22 10:34:35 2026 daemon.notice netifd: wan (3551): udhcpc: received SIGTERM
Thu Jan 22 10:34:35 2026 daemon.notice netifd: wan (3551): udhcpc: entering released state
Thu Jan 22 10:34:35 2026 user.notice wan-detect: detect phys 0|1
Thu Jan 22 10:34:35 2026 kern.debug kernel: [ 15.368477] wan-detect: macaddr 80:af:ca:bb:cc:b8, proto dhcp
Thu Jan 22 10:34:35 2026 daemon.notice netifd: wan (3551): Command failed: Permission denied
Thu Jan 22 10:34:35 2026 daemon.notice netifd: Interface 'wan' is now down
Thu Jan 22 10:34:35 2026 kern.err kernel: [ 15.395891] hyfi_bridge_dev_event:197:Interface br-wan is down, ptr = 00000000089e9cad
Thu Jan 22 10:34:35 2026 daemon.notice netifd: Interface 'wan' is disabled
Thu Jan 22 10:34:35 2026 daemon.warn wireless[2784]: MSG_INFO: ubus_handle_notify ifname: wlan00, command: device, argu: up
Thu Jan 22 10:34:35 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set ra0, command: device, argu: up
Thu Jan 22 10:34:35 2026 kern.err kernel: [ 15.533804] WiFi@C23L1,DfsBuildChannelList() 4093: [RDM]: wdev is not 5G.
Thu Jan 22 10:34:35 2026 kern.err kernel: [ 15.540869] WiFi@C23L1,DfsBuildChannelList() 4093: [RDM]: wdev is not 5G.
Thu Jan 22 10:34:35 2026 kern.debug kernel: [ 15.547812] nlwifi set ra0 channel=0
Thu Jan 22 10:34:35 2026 kern.info kernel: [ 15.592025] br-lan: port 1(eth1) entered disabled state
Thu Jan 22 10:34:35 2026 daemon.warn wireless[2784]: MSG_INFO: ubus_handle_up ra0
Thu Jan 22 10:34:35 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set ra0, command: iface, argu: up
Thu Jan 22 10:34:35 2026 daemon.warn wireless[2784]: MSG_INFO: up interface ra0
Thu Jan 22 10:34:35 2026 kern.debug kernel: [ 15.606302] phy_freq_adjust : no prim_ch value for adjust!
Thu Jan 22 10:34:35 2026 kern.err kernel: [ 15.614029] WiFi@C23L1,HcGetBandByChannel() 1238: No hdev parking on channel:0, just return a default band_idx 0!
Thu Jan 22 10:34:35 2026 daemon.notice procd: /etc/rc.d/S80mosquitto: timestamp: 1710212156
Thu Jan 22 10:34:35 2026 daemon.notice procd: /etc/rc.d/S80mosquitto: build: 2.0.8-20240312-100828
Thu Jan 22 10:34:35 2026 daemon.notice procd: /etc/rc.d/S80mosquitto: timestamp: 1710212213
Thu Jan 22 10:34:35 2026 daemon.notice procd: /etc/rc.d/S80mosquitto: build: 2.0.8-20240312-100828
Thu Jan 22 10:34:35 2026 daemon.notice procd: /etc/rc.d/S80mosquitto: timestamp: 1710212204
Thu Jan 22 10:34:35 2026 daemon.notice procd: /etc/rc.d/S80mosquitto: build: 2.0.8-20240312-100828
Thu Jan 22 10:34:35 2026 daemon.notice procd: /etc/rc.d/S80mosquitto: timestamp: 1710212179
Thu Jan 22 10:34:35 2026 daemon.notice procd: /etc/rc.d/S80mosquitto: build: 2.0.8-20240312-100828
Thu Jan 22 10:34:35 2026 daemon.notice procd: /etc/rc.d/S80mosquitto: timestamp: 1710212190
Thu Jan 22 10:34:35 2026 daemon.notice procd: /etc/rc.d/S80mosquitto: build: 2.0.8-20240312-100828
Thu Jan 22 10:34:35 2026 user.err : bdinfo:__bdinfo_read(542)read from bdinfo failed
Thu Jan 22 10:34:35 2026 user.err : bdinfo:bdinfo_read(568)error
Thu Jan 22 10:34:35 2026 user.err : bdinfo:__bdinfo_read(542)read from bdinfo failed
Thu Jan 22 10:34:35 2026 user.err : bdinfo:bdinfo_read(568)error
Thu Jan 22 10:34:36 2026 daemon.notice cmagent: cmagent start
Thu Jan 22 10:34:36 2026 daemon.notice cmagent: mqtt id 76105A4024|000000000000
Thu Jan 22 10:34:36 2026 daemon.info dnsmasq[2960]: exiting on receipt of SIGTERM
Thu Jan 22 10:34:36 2026 daemon.info pingcheck[4536]: Configured interface 'wan' interval 10 timeout 60 host @dns+private ICMP (80)
Thu Jan 22 10:34:36 2026 daemon.info pingcheck[4536]: Configured interface 'wan6' interval 10 timeout 60 host @dns6 NSLOOKUP (80)
Thu Jan 22 10:34:36 2026 daemon.info pingcheck[4536]: Configured interface 'wisp' interval 10 timeout 60 host @dns ICMP (80)
Thu Jan 22 10:34:36 2026 daemon.info pingcheck[4536]: Interface 'wan' not up
Thu Jan 22 10:34:36 2026 daemon.info pingcheck[4536]: Interface 'wan6' not found or error
Thu Jan 22 10:34:36 2026 daemon.info pingcheck[4536]: Interface 'wisp' not found or error
Thu Jan 22 10:34:36 2026 daemon.warn procd: Seccomp support for umdns::instance1 not available
Thu Jan 22 10:34:37 2026 daemon.notice cmagent: connect to mqtt server, Connection Accepted.
Thu Jan 22 10:34:37 2026 daemon.notice cmagent: mosquitto_loop write(socket buffer is full)
Thu Jan 22 10:34:37 2026 daemon.notice cmagent: connect to mqtt server ok
Thu Jan 22 10:34:37 2026 daemon.notice cmagent: subscribed (mid: 1): 1
Thu Jan 22 10:34:37 2026 daemon.notice cmagent: subscribed (mid: 2): 1
Thu Jan 22 10:34:37 2026 daemon.info cmagent[4352]: connection: 000000000000 connected
Thu Jan 22 10:34:38 2026 kern.err kernel: [ 18.381243] WiFi@C23L1,DfsBuildChannelList() 4093: [RDM]: wdev is not 5G.
Thu Jan 22 10:34:38 2026 kern.err kernel: [ 18.473860] WiFi@C00L1,TxCCKStreamCtrl() 20928: set wrong parameters
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.490461] PrintSrCmd:
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.490461] u1CmdSubId = 1, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.490461] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.504467] PrintSrCmd:
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.504467] u1CmdSubId = 5, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.504467] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.518458] PrintSrCmd:
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.518458] u1CmdSubId = 3, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.518458] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.532454] PrintSrCmd:
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.532454] u1CmdSubId = 23, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.532454] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.546537] PrintSrCmd:
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.546537] u1CmdSubId = 31, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.546537] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.560618] PrintSrCmd:
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.560618] u1CmdSubId = 33, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.560618] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:38 2026 kern.info kernel: [ 18.574785] extif_set_dev(ra0)
Thu Jan 22 10:34:38 2026 kern.debug kernel: [ 18.577852] [mtf_txpower_all_rate_info] band_idx:0 pwr:46 ChBand:2G ePAGain:0
Thu Jan 22 10:34:38 2026 kern.info kernel: [ 18.584987] mtk_ppe_dev_register_hook : ineterface ra0 register (1)
Thu Jan 22 10:34:38 2026 kern.info kernel: [ 18.591377] IPv6: ADDRCONF(NETDEV_CHANGE): ra0: link becomes ready
Thu Jan 22 10:34:38 2026 daemon.warn wireless[2784]: MSG_INFO: wpa_init_auth: ra0 init wpa success, ssid: Cudy-CCB8
Thu Jan 22 10:34:38 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set ra0, command: hidden, argu: (null)
Thu Jan 22 10:34:38 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set ra0, command: isolate, argu: (null)
Thu Jan 22 10:34:38 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set ra0, command: lowrssi, argu: (null)
Thu Jan 22 10:34:38 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set ra0, command: maxsta, argu: 256
Thu Jan 22 10:34:38 2026 daemon.warn wireless[2784]: MSG_INFO: ra0: update GTK
Thu Jan 22 10:34:38 2026 daemon.warn wireless[2784]: MSG_INFO: neighbor add bss ra0:Cudy-CCB8 (80:AF:CA:BB:CC:B8)
Thu Jan 22 10:34:38 2026 user.notice wireless: iface { "iface": "wlan00", "action": "up" }
Thu Jan 22 10:34:38 2026 daemon.notice procd: /etc/init.d/network: Command failed: Not found
Thu Jan 22 10:34:38 2026 daemon.notice netifd: Network device 'ra0' link is up
Thu Jan 22 10:34:38 2026 kern.info kernel: [ 18.874900] br-lan: port 3(ra0) entered blocking state
Thu Jan 22 10:34:38 2026 kern.info kernel: [ 18.880088] br-lan: port 3(ra0) entered disabled state
Thu Jan 22 10:34:38 2026 kern.info kernel: [ 18.885441] device ra0 entered promiscuous mode
Thu Jan 22 10:34:38 2026 kern.info kernel: [ 18.890065] br-lan: port 3(ra0) entered blocking state
Thu Jan 22 10:34:38 2026 kern.info kernel: [ 18.895244] br-lan: port 3(ra0) entered forwarding state
Thu Jan 22 10:34:38 2026 daemon.warn wireless[2784]: MSG_INFO: ubus_handle_up ra2
Thu Jan 22 10:34:38 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set ra2, command: iface, argu: up
Thu Jan 22 10:34:38 2026 daemon.warn wireless[2784]: MSG_INFO: up interface ra2
Thu Jan 22 10:34:38 2026 daemon.info cmagent[4352]: connection: 000000000000 connected
Thu Jan 22 10:34:38 2026 kern.err kernel: [ 18.947906] WiFi@C00L1,ApAutoChannelAtBootUp() 521: not 5G A band
Thu Jan 22 10:34:38 2026 kern.err kernel: [ 18.954060] WiFi@C08L1,ap_run_at_boot() 668: [41m ACS is disable !![m
Thu Jan 22 10:34:39 2026 kern.err kernel: [ 19.041139] WiFi@C00L1,TxCCKStreamCtrl() 20928: set wrong parameters
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.057796] PrintSrCmd:
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.057796] u1CmdSubId = 1, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.057796] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.071856] PrintSrCmd:
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.071856] u1CmdSubId = 5, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.071856] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.085913] PrintSrCmd:
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.085913] u1CmdSubId = 3, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.085913] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.099953] PrintSrCmd:
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.099953] u1CmdSubId = 23, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.099953] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.114084] PrintSrCmd:
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.114084] u1CmdSubId = 31, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.114084] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.128232] PrintSrCmd:
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.128232] u1CmdSubId = 33, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.128232] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:39 2026 kern.info kernel: [ 19.142427] mtk_ppe_dev_register_hook : ra2 is in hwnat blackList, not to register
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.150143] [mtf_txpower_all_rate_info] band_idx:0 pwr:46 ChBand:2G ePAGain:0
Thu Jan 22 10:34:39 2026 daemon.warn wireless[2784]: MSG_INFO: wpa_init_auth: ra2 init wpa success, ssid: 95e33db68025468574d40211a804cc75
Thu Jan 22 10:34:39 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set ra2, command: hidden, argu: 1
Thu Jan 22 10:34:39 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set ra2, command: isolate, argu: (null)
Thu Jan 22 10:34:39 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set ra2, command: lowrssi, argu: (null)
Thu Jan 22 10:34:39 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set ra2, command: maxsta, argu: (null)
Thu Jan 22 10:34:39 2026 daemon.warn wireless[2784]: MSG_INFO: ra2: update GTK
Thu Jan 22 10:34:39 2026 daemon.warn wireless[2784]: MSG_INFO: neighbor add bss ra2:95e33db68025468574d40211a804cc75 (82:AF:CA:AB:CC:B8)
Thu Jan 22 10:34:39 2026 user.notice wireless: iface { "iface": "wlan03", "action": "up" }
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.331644] wan-detect: stop detect
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/init.d/network: Command failed: Not found
Thu Jan 22 10:34:39 2026 daemon.notice netifd: Network device 'ra2' link is up
Thu Jan 22 10:34:39 2026 kern.info kernel: [ 19.480407] br-lan: port 4(ra2) entered blocking state
Thu Jan 22 10:34:39 2026 kern.info kernel: [ 19.485617] br-lan: port 4(ra2) entered disabled state
Thu Jan 22 10:34:39 2026 kern.info kernel: [ 19.490993] device ra2 entered promiscuous mode
Thu Jan 22 10:34:39 2026 kern.info kernel: [ 19.495841] br-lan: port 4(ra2) entered blocking state
Thu Jan 22 10:34:39 2026 kern.info kernel: [ 19.501053] br-lan: port 4(ra2) entered forwarding state
Thu Jan 22 10:34:39 2026 daemon.warn wireless[2784]: MSG_INFO: ubus_handle_wds up
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90wifi_e2p: 54B: 6c
Thu Jan 22 10:34:39 2026 daemon.warn wireless[2784]: MSG_INFO: ubus_handle_notify ifname: wlan00, command: htbw, argu: auto
Thu Jan 22 10:34:39 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set ra0, command: htbw, argu: auto
Thu Jan 22 10:34:39 2026 user.notice wan-detect: detect phys 0|1
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90wifi_e2p: 54C: 70
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90wifi_e2p: 54D: 74
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.593694] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 0, duty: 100
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.602781] wan-detect: macaddr 80:af:ca:bb:cc:b8, proto dhcp
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.604610] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 1, duty: 20
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90wifi_e2p: 54E: 7c
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.624586] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 2, duty: 15
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90wifi_e2p: 54F: 7f
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.638455] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 3, duty: 10
Thu Jan 22 10:34:39 2026 daemon.warn wireless[2784]: MSG_INFO: ubus_handle_cleanup (null)
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.652674] SetThermalProtectEnable(): band_idx: 0, protection_type: 1, trigger_type: 1
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.660751] SetThermalProtectEnable(): trigger_temp: 112, restore_temp: 106, recheck_time: 5
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90wifi_e2p: 550: 7f
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.675740] SetThermalProtectEnable(): band_idx: 0, protection_type: 2, trigger_type: 1
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.683765] SetThermalProtectEnable(): trigger_temp: 124, restore_temp: 0, recheck_time: 5
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.692133] (Thermal Protect) Radio Notify.
Thu Jan 22 10:34:39 2026 kern.debug kernel: [ 19.696342] band_idx: 0, level_idx: 0
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90wifi_e2p: 551: 7f , 552: 0
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90wifi_e2p: 55C: 6c
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90wifi_e2p: 55D: 70
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90wifi_e2p: 55E: 74
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90wifi_e2p: 55F: 7c
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90wifi_e2p: 560: 7f
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90wifi_e2p: 561: 7f
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90wifi_e2p: 562: 7f , 563: 0
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90wifi_e2p: base addr 9A8: BF
Thu Jan 22 10:34:39 2026 kern.err kernel: [ 19.823465] hyfi_netlink_receive:72:Device not found: br-wan
Thu Jan 22 10:34:39 2026 daemon.notice procd: /etc/rc.d/S90zerotier: disabled in config
Thu Jan 22 10:34:39 2026 daemon.info cmagent[4352]: clients: 000000000000 connected
Thu Jan 22 10:34:40 2026 kern.info kernel: [ 20.323240] sh (5628): drop_caches: 3
Thu Jan 22 10:34:40 2026 kern.info kernel: [ 20.399234] sh (5607): drop_caches: 3
Thu Jan 22 10:34:40 2026 daemon.warn wireless[2784]: MSG_INFO: ubus_handle_notify ifname: wlan10, command: device, argu: up
Thu Jan 22 10:34:40 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set rax0, command: device, argu: up
Thu Jan 22 10:34:40 2026 kern.debug kernel: [ 20.781160] phy_freq_adjust : no prim_ch value for adjust!
Thu Jan 22 10:34:40 2026 kern.debug kernel: [ 20.786767] phy_freq_adjust : no prim_ch value for adjust!
Thu Jan 22 10:34:40 2026 kern.debug kernel: [ 20.792393] phy_freq_adjust : no prim_ch value for adjust!
Thu Jan 22 10:34:40 2026 kern.debug kernel: [ 20.797950] nlwifi set rax0 channel=0
Thu Jan 22 10:34:40 2026 daemon.warn wireless[2784]: MSG_INFO: ubus_handle_up rax0
Thu Jan 22 10:34:40 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set rax0, command: iface, argu: up
Thu Jan 22 10:34:40 2026 kern.debug kernel: [ 20.827302] phy_freq_adjust : no prim_ch value for adjust!
Thu Jan 22 10:34:40 2026 kern.debug kernel: [ 20.832845] phy_freq_adjust : no prim_ch value for adjust!
Thu Jan 22 10:34:40 2026 kern.debug kernel: [ 20.841080] phy_freq_adjust : no prim_ch value for adjust!
Thu Jan 22 10:34:40 2026 daemon.warn wireless[2784]: MSG_INFO: up interface rax0
Thu Jan 22 10:34:40 2026 user.notice ddns-scripts[5606]: myddns: PID '5606' started at 2026-01-22 10:34
Thu Jan 22 10:34:40 2026 kern.err kernel: [ 20.850027] 7981@C23L1,HcGetBandByChannel() 1238: No hdev parking on channel:0, just return a default band_idx 0!
Thu Jan 22 10:34:40 2026 user.warn ddns-scripts[5606]: myddns: Service section disabled! - TERMINATE
Thu Jan 22 10:34:40 2026 user.warn ddns-scripts[5606]: myddns: PID '5606' exit WITH ERROR '1' at 2026-01-22 10:34
Thu Jan 22 10:34:41 2026 user.notice automesh: init
Thu Jan 22 10:34:41 2026 cron.err crond[5884]: crond (busybox 1.33.2) started, log level 5
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 22.938796] PrintSrCmd:
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 22.938796] u1CmdSubId = 1, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 22.938796] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 22.952805] PrintSrCmd:
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 22.952805] u1CmdSubId = 5, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 22.952805] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 22.966803] PrintSrCmd:
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 22.966803] u1CmdSubId = 3, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 22.966803] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 22.980795] PrintSrCmd:
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 22.980795] u1CmdSubId = 23, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 22.980795] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 22.994869] PrintSrCmd:
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 22.994869] u1CmdSubId = 31, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 22.994869] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 23.008944] PrintSrCmd:
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 23.008944] u1CmdSubId = 33, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 23.008944] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:42 2026 kern.info kernel: [ 23.023054] mtk_ppe_dev_register_hook : ineterface rax0 register (2)
Thu Jan 22 10:34:42 2026 kern.debug kernel: [ 23.025558] [mtf_txpower_all_rate_info] band_idx:1 pwr:46 ChBand:5G ePAGain:0
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq[5938]: Connected to system UBus
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq[5938]: started, version 2.85 cachesize 150
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq[5938]: DNS service limited to local subnets
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq[5938]: compile time options: IPv6 GNU-getopt no-DBus UBus no-i18n regex(+ipset) no-IDN DHCP no-DHCPv6 no-Lua TFTP conntrack ipset no-auth no-cryptohash no-DNSSEC no-ID loop-detect inotify dumpfile
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq[5938]: UBus support enabled: connected to system bus
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq-dhcp[5938]: DHCP, IP range 192.168.10.10 -- 192.168.10.250, lease time 2m
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq[5938]: using only locally-known addresses for domain test
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq[5938]: using only locally-known addresses for domain onion
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq[5938]: using only locally-known addresses for domain localhost
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq[5938]: using only locally-known addresses for domain local
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq[5938]: using only locally-known addresses for domain invalid
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq[5938]: using only locally-known addresses for domain bind
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq[5938]: using only locally-known addresses for domain lan
Thu Jan 22 10:34:42 2026 daemon.warn dnsmasq[5938]: no servers found in /tmp/resolv.conf.d/resolv.conf.auto, will retry
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq[5938]: read /etc/hosts - 4 addresses
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq[5938]: read /tmp/hosts/dhcp.cfg01411c - 0 addresses
Thu Jan 22 10:34:42 2026 daemon.info dnsmasq-dhcp[5938]: read /etc/ethers - 0 addresses
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: wpa_init_auth: rax0 init wpa success, ssid: Cudy-CCB8-5G
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set rax0, command: hidden, argu: (null)
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set rax0, command: isolate, argu: (null)
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set rax0, command: lowrssi, argu: (null)
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set rax0, command: maxsta, argu: 256
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: rax0: update GTK
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: neighbor add bss rax0:Cudy-CCB8-5G (82:AF:CA:BB:CC:B8)
Thu Jan 22 10:34:43 2026 user.notice wireless: iface { "iface": "wlan10", "action": "up" }
Thu Jan 22 10:34:43 2026 daemon.notice procd: /etc/init.d/network: Command failed: Not found
Thu Jan 22 10:34:43 2026 daemon.notice netifd: Network device 'rax0' link is up
Thu Jan 22 10:34:43 2026 kern.info kernel: [ 23.202107] br-lan: port 5(rax0) entered blocking state
Thu Jan 22 10:34:43 2026 kern.info kernel: [ 23.207368] br-lan: port 5(rax0) entered disabled state
Thu Jan 22 10:34:43 2026 kern.info kernel: [ 23.212775] device rax0 entered promiscuous mode
Thu Jan 22 10:34:43 2026 kern.info kernel: [ 23.217474] br-lan: port 5(rax0) entered blocking state
Thu Jan 22 10:34:43 2026 kern.info kernel: [ 23.222705] br-lan: port 5(rax0) entered forwarding state
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: ubus_handle_up rax2
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set rax2, command: iface, argu: up
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: up interface rax2
Thu Jan 22 10:34:43 2026 kern.err kernel: [ 23.263407] 7981@C00L1,ApAutoChannelAtBootUp() 515: zero-wait DFS is not enabled
Thu Jan 22 10:34:43 2026 kern.err kernel: [ 23.270806] 7981@C08L1,ap_run_at_boot() 668: [41m ACS is disable !![m
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.369935] PrintSrCmd:
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.369935] u1CmdSubId = 1, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.369935] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.383942] PrintSrCmd:
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.383942] u1CmdSubId = 5, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.383942] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.397932] PrintSrCmd:
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.397932] u1CmdSubId = 3, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.397932] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.411928] PrintSrCmd:
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.411928] u1CmdSubId = 23, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.411928] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.426010] PrintSrCmd:
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.426010] u1CmdSubId = 31, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.426010] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.440092] PrintSrCmd:
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.440092] u1CmdSubId = 33, u1ArgNum = 0, u1DbdcIdx = 1, u1Status = 0
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.440092] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0
Thu Jan 22 10:34:43 2026 kern.info kernel: [ 23.454233] mtk_ppe_dev_register_hook : rax2 is in hwnat blackList, not to register
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.461984] [mtf_txpower_all_rate_info] band_idx:1 pwr:46 ChBand:5G ePAGain:0
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: wpa_init_auth: rax2 init wpa success, ssid: 95e33db68025468574d40211a804cc75
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set rax2, command: hidden, argu: 1
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set rax2, command: isolate, argu: (null)
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set rax2, command: lowrssi, argu: (null)
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set rax2, command: maxsta, argu: (null)
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: rax2: update GTK
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: neighbor add bss rax2:95e33db68025468574d40211a804cc75 (82:AF:CA:DB:CC:B8)
Thu Jan 22 10:34:43 2026 user.notice wireless: iface { "iface": "wlan13", "action": "up" }
Thu Jan 22 10:34:43 2026 daemon.notice procd: /etc/init.d/network: Command failed: Not found
Thu Jan 22 10:34:43 2026 daemon.notice netifd: Network device 'rax2' link is up
Thu Jan 22 10:34:43 2026 kern.info kernel: [ 23.594038] br-lan: port 6(rax2) entered blocking state
Thu Jan 22 10:34:43 2026 kern.info kernel: [ 23.599279] br-lan: port 6(rax2) entered disabled state
Thu Jan 22 10:34:43 2026 kern.info kernel: [ 23.604702] device rax2 entered promiscuous mode
Thu Jan 22 10:34:43 2026 kern.info kernel: [ 23.609394] br-lan: port 6(rax2) entered blocking state
Thu Jan 22 10:34:43 2026 kern.info kernel: [ 23.614622] br-lan: port 6(rax2) entered forwarding state
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: ubus_handle_wds up
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: ubus_handle_notify ifname: wlan10, command: htbw, argu: auto
Thu Jan 22 10:34:43 2026 daemon.warn wireless[2784]: MSG_INFO: nlwifi set rax0, command: htbw, argu: auto
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.670028] SetThermalProtectDutyCfg(): band_idx: 1, level_idx: 0, duty: 100
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.678604] SetThermalProtectDutyCfg(): band_idx: 1, level_idx: 1, duty: 30
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.687085] SetThermalProtectDutyCfg(): band_idx: 1, level_idx: 2, duty: 20
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.695651] SetThermalProtectDutyCfg(): band_idx: 1, level_idx: 3, duty: 10
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.704181] SetThermalProtectEnable(): band_idx: 1, protection_type: 1, trigger_type: 1
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.712201] SetThermalProtectEnable(): trigger_temp: 112, restore_temp: 106, recheck_time: 5
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.722148] SetThermalProtectEnable(): band_idx: 1, protection_type: 2, trigger_type: 1
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.730175] SetThermalProtectEnable(): trigger_temp: 124, restore_temp: 0, recheck_time: 5
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.738569] (Thermal Protect) Radio Notify.
Thu Jan 22 10:34:43 2026 kern.debug kernel: [ 23.742754] band_idx: 1, level_idx: 0
Thu Jan 22 10:34:48 2026 kern.debug kernel: [ 28.606907] rtl8221b phy init (VERID=6b90)
Thu Jan 22 10:34:48 2026 daemon.notice procd: /etc/rc.d/S99smp: run smp.sh....
Thu Jan 22 10:34:48 2026 cron.err crond[6552]: crond (busybox 1.33.2) started, log level 5
Thu Jan 22 10:34:49 2026 daemon.info procd: - init complete -
OpenWrt bootlog
F0: 102B 0000
FA: 1040 0000
FA: 1040 0000 [0200]
F9: 0000 0000
V0: 0000 0000 [0001]
00: 0000 0000
BP: 2400 0041 [0000]
G0: 1190 0000
EC: 0000 0000 [1000]
T0: 0000 024B [010F]
Jump to BL
NOTICE: BL2: v2.7(release):ba36282065
NOTICE: BL2: Built : 07:22:10, Sep 10 2024
NOTICE: WDT: disabled
NOTICE: EMI: Using DDR4 settings
dump toprgu registers data:
1001c000 | 00000000 0000ffe0 00000000 00000000
1001c010 | 00000fff 00000000 00f00000 00000000
1001c020 | 00000000 00000000 00000000 00000000
1001c030 | 003c0003 003c0003 00000000 00000000
1001c040 | 00000000 00000000 00000000 00000000
1001c050 | 00000000 00000000 00000000 00000000
1001c060 | 00000000 00000000 00000000 00000000
1001c070 | 00000000 00000000 00000000 00000000
1001c080 | 00000000 00000000 00000000 00000000
dump drm registers data:
1001d000 | 00000000 00000000 00000000 00000000
1001d010 | 00000000 00000000 00000000 00000000
1001d020 | 00000000 00000000 00000000 00000000
1001d030 | 00a083f1 000003ff 00100000 00000000
1001d040 | 00000000 00000000 00020303 000000ff
1001d050 | 00000000 00000000 00000000 00000000
1001d060 | 00000002 00000000 00000000 00000000
drm: 500 = 0x8
[DDR Reserve] ddr reserve mode not be enabled yet
DDR RESERVE Success 0
[EMI] ComboMCP not ready, using default setting
BYTE_swap:0
BYTE_swap:0
Window Sum 548, worse bit 1, min window 64
Window Sum 552, worse bit 8, min window 68
[TxChooseVref] Worse bit 1, Min win 24, Win sum 405, Final Vref 40
Window Sum 310, worse bit 3, min window 34
Window Sum 314, worse bit 8, min window 36
Window Sum 336, worse bit 1, min window 38
Window Sum 328, worse bit 8, min window 38
Window Sum 348, worse bit 3, min window 38
Window Sum 344, worse bit 8, min window 40
Window Sum 360, worse bit 1, min window 42
Window Sum 360, worse bit 10, min window 42
Window Sum 376, worse bit 1, min window 44
Window Sum 376, worse bit 10, min window 44
Window Sum 382, worse bit 3, min window 44
Window Sum 388, worse bit 10, min window 44
Window Sum 392, worse bit 3, min window 44
Window Sum 396, worse bit 10, min window 46
Window Sum 404, worse bit 3, min window 46
Window Sum 414, worse bit 10, min window 50
Window Sum 414, worse bit 1, min window 48
Window Sum 422, worse bit 3, min window 48
Window Sum 434, worse bit 11, min window 50
Window Sum 436, worse bit 3, min window 50
Window Sum 444, worse bit 11, min window 52
Window Sum 440, worse bit 1, min window 52
Window Sum 450, worse bit 3, min window 52
Window Sum 458, worse bit 10, min window 54
Window Sum 458, worse bit 3, min window 54
Window Sum 466, worse bit 15, min window 54
Window Sum 462, worse bit 3, min window 54
Window Sum 466, worse bit 10, min window 56
Window Sum 474, worse bit 1, min window 56
Window Sum 482, worse bit 10, min window 58
Window Sum 478, worse bit 1, min window 58
Window Sum 486, worse bit 11, min window 58
Window Sum 490, worse bit 11, min window 58
Window Sum 486, worse bit 3, min window 58
Window Sum 496, worse bit 9, min window 60
NOTICE: EMI: Detected DRAM size: 512MB
NOTICE: EMI: complex R/W mem test passed
NOTICE: CPU: MT7981 (1300MHz)
NOTICE: SPI_NAND parses attributes from parameter page.
NOTICE: SPI_NAND Detected ID 0x2c
NOTICE: Page size 2048, Block size 131072, size 268435456
NOTICE: Initializing NMBM ...
NOTICE: Signature found at block 2047 [0x0ffe0000]
NOTICE: First info table with writecount 0 found in block 1920
NOTICE: Second info table with writecount 0 found in block 1923
NOTICE: NMBM has been successfully attached in read-only mode
NOTICE: BL2: Booting BL31
NOTICE: BL31: v2.7(release):ba36282065
NOTICE: BL31: Built : 07:22:10, Sep 10 2024
NOTICE: Hello BL31!!!
U-Boot 2022.07-rc3 (Sep 10 2024 - 07:22:10 +0000), Build: jenkins-AP3000-22
CPU: MediaTek MT7981
Model: mt7981-rfb
DRAM: 512 MiB
Core: 44 devices, 20 uclasses, devicetree: embed
Initializing NMBM ...
spi-nand: spi_nand spi_nand@0: Micron SPI NAND was found.
spi-nand: spi_nand spi_nand@0: 256 MiB, block size: 128 KiB, page size: 2048, OOB size: 128
Could not find a valid device for nmbm0
Signature found at block 2047 [0x0ffe0000]
First info table with writecount 0 found in block 1920
Second info table with writecount 0 found in block 1923
NMBM has been successfully attached
Loading Environment from MTD... *** Warning - bad CRC, using default environment
In: serial@11002000
Out: serial@11002000
Err: serial@11002000
Net:
Warning: ethernet@15100000 (eth0) using random MAC address - 02:8a:9d:8c:37:da
eth0: ethernet@15100000
gpio: pin 39 (gpio 39) value is 0
ubi0: attaching mtd7
ubi0: scanning is finished
ubi0: attached mtd7 (name "ubi", size 64 MiB)
ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
ubi0: good PEBs: 512, bad PEBs: 0, corrupted PEBs: 0
ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128
ubi0: max/mean erase counter: 3/2, WL threshold: 4096, image sequence number: 1922569072
ubi0: available PEBs: 4, total reserved PEBs: 508, PEBs reserved for bad PEB handling: 38
Reading from volume 'kernel' to 0x46000000, size 0x0 ... OK
## Loading kernel from FIT Image at 46000000 ...
Using 'config-1' configuration
Trying 'kernel-1' kernel subimage
Description: ARM64 OpenWrt Linux-6.6.110
Type: Kernel Image
Compression: lzma compressed
Data Start: 0x460000e8
Data Size: 4132682 Bytes = 3.9 MiB
Architecture: AArch64
OS: Linux
Load Address: 0x48000000
Entry Point: 0x48000000
Hash algo: crc32
Hash value: 5bfad146
Hash algo: sha1
Hash value: 7e7b62b9716fb07c6a68836f399014fbcdf3ad87
Verifying Hash Integrity ... crc32+ sha1+ OK
## Loading fdt from FIT Image at 46000000 ...
Using 'config-1' configuration
Trying 'fdt-1' fdt subimage
Description: ARM64 OpenWrt cudy_ap3000-v1 device tree blob
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0x463f1174
Data Size: 22348 Bytes = 21.8 KiB
Architecture: AArch64
Hash algo: crc32
Hash value: cf1a40f6
Hash algo: sha1
Hash value: 1d0c56bcb17fda0fd9b4d7425d03b2c528e8c479
Verifying Hash Integrity ... crc32+ sha1+ OK
Booting using the fdt blob at 0x463f1174
Uncompressing Kernel Image
Loading Device Tree to 000000005f7f0000, end 000000005f7f874b ... OK
Starting kernel ...
[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[ 0.000000] Linux version 6.6.110 (builder@buildhost) (aarch64-openwrt-linux-musl-gcc (OpenWrt GCC 13.3.0 r28959-29397011cc) 13.3.0, GNU ld (GNU Binutils) 2.42) #0 SMP Sun Oct 19 16:37:45 2025
[ 0.000000] Machine model: Cudy AP3000 v1
[ 0.000000] OF: reserved mem: 0x0000000042ff0000..0x0000000042ffffff (64 KiB) map non-reusable ramoops@42ff0000
[ 0.000000] OF: reserved mem: 0x0000000043000000..0x000000004302ffff (192 KiB) nomap non-reusable secmon@43000000
[ 0.000000] OF: reserved mem: 0x0000000047c80000..0x0000000047d7ffff (1024 KiB) nomap non-reusable wmcpu-reserved@47c80000
[ 0.000000] OF: reserved mem: 0x0000000047d80000..0x0000000047dbffff (256 KiB) nomap non-reusable wo-emi@47d80000
[ 0.000000] OF: reserved mem: 0x0000000047dc0000..0x0000000047ffffff (2304 KiB) nomap non-reusable wo-data@47dc0000
[ 0.000000] Zone ranges:
[ 0.000000] DMA [mem 0x0000000040000000-0x000000005fffffff]
[ 0.000000] DMA32 empty
[ 0.000000] Normal empty
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000040000000-0x0000000042ffffff]
[ 0.000000] node 0: [mem 0x0000000043000000-0x000000004302ffff]
[ 0.000000] node 0: [mem 0x0000000043030000-0x0000000047c7ffff]
[ 0.000000] node 0: [mem 0x0000000047c80000-0x0000000047ffffff]
[ 0.000000] node 0: [mem 0x0000000048000000-0x000000005fffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x000000005fffffff]
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.1 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
[ 0.000000] psci: SMC Calling Convention v1.2
[ 0.000000] percpu: Embedded 18 pages/cpu s35624 r8192 d29912 u73728
[ 0.000000] pcpu-alloc: s35624 r8192 d29912 u73728 alloc=18*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: detected: GIC system register CPU interface
[ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration
[ 0.000000] alternatives: applying boot alternatives
[ 0.000000] Kernel command line:
[ 0.000000] Dentry cache hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 32768 (order: 6, 262144 bytes, linear)
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 129024
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] software IO TLB: SWIOTLB bounce buffer size adjusted to 0MB
[ 0.000000] software IO TLB: area num 2.
[ 0.000000] software IO TLB: mapped [mem 0x000000005fd69000-0x000000005fde9000] (0MB)
[ 0.000000] Memory: 496980K/524288K available (9088K kernel code, 1000K rwdata, 1676K rodata, 448K init, 307K bss, 27308K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] rcu: RCU restricting CPUs from NR_CPUS=4 to nr_cpu_ids=2.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
[ 0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=2
[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode
[ 0.000000] GICv3: 640 SPIs implemented
[ 0.000000] GICv3: 0 Extended SPIs implemented
[ 0.000000] Root IRQ handler: 0xffffffc080010080
[ 0.000000] GICv3: GICv3 features: 16 PPIs
[ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x000000000c080000
[ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[ 0.000000] arch_timer: cp15 timer(s) running at 13.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2ff89eacb, max_idle_ns: 440795202429 ns
[ 0.000000] sched_clock: 56 bits at 13MHz, resolution 76ns, wraps every 4398046511101ns
[ 0.000076] Calibrating delay loop (skipped), value calculated using timer frequency.. 26.00 BogoMIPS (lpj=130000)
[ 0.000084] pid_max: default: 32768 minimum: 301
[ 0.002956] Mount-cache hash table entries: 1024 (order: 1, 8192 bytes, linear)
[ 0.002966] Mountpoint-cache hash table entries: 1024 (order: 1, 8192 bytes, linear)
[ 0.005133] cacheinfo: Unable to detect cache hierarchy for CPU 0
[ 0.005676] RCU Tasks Trace: Setting shift to 1 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=2.
[ 0.005820] rcu: Hierarchical SRCU implementation.
[ 0.005824] rcu: Max phase no-delay instances is 1000.
[ 0.006210] smp: Bringing up secondary CPUs ...
[ 0.006572] Detected VIPT I-cache on CPU1
[ 0.006616] GICv3: CPU1: found redistributor 1 region 0:0x000000000c0a0000
[ 0.006645] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[ 0.006716] smp: Brought up 1 node, 2 CPUs
[ 0.006722] SMP: Total of 2 processors activated.
[ 0.006726] CPU features: detected: 32-bit EL0 Support
[ 0.006729] CPU features: detected: CRC32 instructions
[ 0.006761] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching
[ 0.006764] CPU: All CPU(s) started at EL2
[ 0.006766] alternatives: applying system-wide alternatives
[ 0.010304] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.010321] futex hash table entries: 512 (order: 3, 32768 bytes, linear)
[ 0.011580] pinctrl core: initialized pinctrl subsystem
[ 0.012727] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.013061] DMA: preallocated 128 KiB GFP_KERNEL pool for atomic allocations
[ 0.013086] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[ 0.013107] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations
[ 0.013491] thermal_sys: Registered thermal governor 'fair_share'
[ 0.013494] thermal_sys: Registered thermal governor 'bang_bang'
[ 0.013497] thermal_sys: Registered thermal governor 'step_wise'
[ 0.013499] thermal_sys: Registered thermal governor 'user_space'
[ 0.013538] ASID allocator initialised with 65536 entries
[ 0.014451] pstore: Using crash dump compression: deflate
[ 0.014456] pstore: Registered ramoops as persistent store backend
[ 0.014459] ramoops: using 0x10000@0x42ff0000, ecc: 0
[ 0.015822] /soc/interrupt-controller@c000000: Fixed dependency cycle(s) with /soc/interrupt-controller@c000000
[ 0.021481] Modules: 29600 pages in range for non-PLT usage
[ 0.021489] Modules: 521120 pages in range for PLT usage
[ 0.022595] cryptd: max_cpu_qlen set to 1000
[ 0.023690] SCSI subsystem initialized
[ 0.023883] libata version 3.00 loaded.
[ 0.025670] clocksource: Switched to clocksource arch_sys_counter
[ 0.027946] NET: Registered PF_INET protocol family
[ 0.028063] IP idents hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.029469] tcp_listen_portaddr_hash hash table entries: 256 (order: 0, 4096 bytes, linear)
[ 0.029483] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.029493] TCP established hash table entries: 4096 (order: 3, 32768 bytes, linear)
[ 0.029526] TCP bind hash table entries: 4096 (order: 5, 131072 bytes, linear)
[ 0.029625] TCP: Hash tables configured (established 4096 bind 4096)
[ 0.029946] MPTCP token hash table entries: 512 (order: 1, 12288 bytes, linear)
[ 0.030153] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 0.030171] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 0.030390] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.030415] PCI: CLS 0 bytes, default 64
[ 0.031652] workingset: timestamp_bits=46 max_order=17 bucket_order=0
[ 0.036486] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.036495] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 0.094004] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251)
[ 0.104704] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
[ 0.108497] printk: console [ttyS0] disabled
[ 0.128894] 11002000.serial: ttyS0 at MMIO 0x11002000 (irq = 72, base_baud = 2500000) is a ST16650V2
[ 0.128937] printk: console [ttyS0] enabled
[ 0.885255] loop: module loaded
[ 0.891515] spi-nand spi0.0: calibration result: 0x2
[ 0.896648] spi-nand spi0.0: Micron SPI NAND was found.
[ 0.901865] spi-nand spi0.0: 256 MiB, block size: 128 KiB, page size: 2048, OOB size: 128
[ 0.910388] Signature found at block 2047 [0x0ffe0000]
[ 0.915516] NMBM management region starts at block 1920 [0x0f000000]
[ 0.923238] First info table with writecount 0 found in block 1920
[ 0.932718] Second info table with writecount 0 found in block 1923
[ 0.939001] NMBM has been successfully attached
[ 0.943870] 6 fixed-partitions partitions found on MTD device spi0.0
[ 0.950242] Creating 6 MTD partitions on "spi0.0":
[ 0.955023] 0x000000000000-0x000000100000 : "bl2"
[ 0.960674] 0x000000100000-0x000000180000 : "u-boot-env"
[ 0.966755] 0x000000180000-0x000000380000 : "factory"
[ 0.973513] 0x000000380000-0x0000003c0000 : "bdinfo"
[ 0.979392] 0x0000003c0000-0x0000005c0000 : "fip"
[ 0.985600] 0x0000005c0000-0x0000045c0000 : "ubi"
[ 1.530074] mtk_soc_eth 15100000.ethernet eth0: mediatek frame engine at 0xffffffc081700000, irq 75
[ 1.539838] i2c_dev: i2c /dev entries driver
[ 1.545951] mtk-wdt 1001c000.watchdog: Watchdog enabled (timeout=31 sec, nowayout=0)
[ 1.555095] NET: Registered PF_INET6 protocol family
[ 1.561154] Segment Routing with IPv6
[ 1.564853] In-situ OAM (IOAM) with IPv6
[ 1.568843] NET: Registered PF_PACKET protocol family
[ 1.573919] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[ 1.587129] 8021q: 802.1Q VLAN Support v1.8
[ 1.617360] UBI: auto-attach mtd5
[ 1.620685] ubi0: default fastmap pool size: 25
[ 1.625205] ubi0: default fastmap WL pool size: 12
[ 1.630004] ubi0: attaching mtd5
[ 1.813710] ubi0: scanning is finished
[ 1.822562] ubi0: attached mtd5 (name "ubi", size 64 MiB)
[ 1.827984] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[ 1.834847] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[ 1.841624] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[ 1.848579] ubi0: good PEBs: 512, bad PEBs: 0, corrupted PEBs: 0
[ 1.854573] ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128
[ 1.861787] ubi0: max/mean erase counter: 3/2, WL threshold: 4096, image sequence number: 1922569072
[ 1.870907] ubi0: available PEBs: 2, total reserved PEBs: 510, PEBs reserved for bad PEB handling: 38
[ 1.880124] ubi0: background thread "ubi_bgt0d" started, PID 572
[ 1.880858] block ubiblock0_1: created from ubi0:1(rootfs)
[ 1.891619] ubiblock: device ubiblock0_1 (rootfs) set to be root filesystem
[ 1.898698] clk: Disabling unused clocks
[ 1.907687] VFS: Mounted root (squashfs filesystem) readonly on device 254:0.
[ 1.914982] Freeing unused kernel memory: 448K
[ 1.919553] Run /sbin/init as init process
[ 1.923642] with arguments:
[ 1.926614] /sbin/init
[ 1.929309] with environment:
[ 1.932437] HOME=/
[ 1.934785] TERM=linux
[ 2.128798] init: Console is alive
[ 2.132365] init: - watchdog -
[ 2.469120] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[ 2.495728] gpio_button_hotplug: loading out-of-tree module taints kernel.
[ 2.505473] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 2.523037] init: - preinit -
[ 3.075748] mtk_soc_eth 15100000.ethernet eth0: PHY [mdio-bus:01] driver [RTL8221B-VB-CG 2.5Gbps PHY (C45)] (irq=53)
[ 3.089839] mtk_soc_eth 15100000.ethernet eth0: configuring for phy/2500base-x link mode
Press the [f] key and hit [enter] to enter failsafe mode
Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level
[ 7.325700] random: crng init done
[ 7.332403] UBIFS (ubi0:2): Mounting in unauthenticated mode
[ 7.338177] UBIFS (ubi0:2): background thread "ubifs_bgt0_2" started, PID 703
[ 7.359285] UBIFS (ubi0:2): recovery needed
[ 7.431072] UBIFS (ubi0:2): recovery completed
[ 7.435583] UBIFS (ubi0:2): UBIFS: mounted UBI device 0, volume 2, name "rootfs_data"
[ 7.443427] UBIFS (ubi0:2): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 7.453332] UBIFS (ubi0:2): FS size: 48885760 bytes (46 MiB, 385 LEBs), max 395 LEBs, journal size 2412544 bytes (2 MiB, 19 LEBs)
[ 7.464971] UBIFS (ubi0:2): reserved for root: 2308995 bytes (2254 KiB)
[ 7.471577] UBIFS (ubi0:2): media format: w5/r0 (latest is w5/r0), UUID 64A3D40C-4D50-4430-BFA2-A27BCA614DA4, small LPT model
[ 7.485417] mount_root: switching to ubifs overlay
[ 7.493393] overlayfs: null uuid detected in lower fs '/', falling back to xino=off,index=off,nfs_export=off.
[ 7.507388] urandom-seed: Seeding with /etc/urandom.seed
[ 7.552890] procd: - early -
[ 7.555898] procd: - watchdog -
[ 8.102713] procd: - watchdog -
[ 8.152653] procd: - ubus -
[ 8.307008] procd: - init -
Please press Enter to activate this console.
[ 8.669276] kmodloader: loading kernel modules from /etc/modules.d/*
[ 8.708065] crypto-safexcel 10320000.crypto: EIP97:230(0,1,4,4)-HIA:270(0,5,5),PE:150/433(alg:7fcdfc00)/0/0/0
[ 8.725455] Loading modules backported from Linux version v6.12.52-0-g2b2cbdcede38
[ 8.733070] Backport generated by backports.git v6.1.110-1-35-g410656ef
[ 8.855346] urngd: v1.0.2 started.
[ 9.109429] mt798x-wmac 18000000.wifi: HW/SW Version: 0x8a108a10, Build Time: 20240823161240a
[ 9.109429]
[ 9.303225] mt798x-wmac 18000000.wifi: WM Firmware Version: ____000000, Build Time: 20240823161304
[ 9.397393] mt798x-wmac 18000000.wifi: WA Firmware Version: DEV_000000, Build Time: 20240823161841
[ 9.494955] mt798x-wmac 18000000.wifi: registering led 'mt76-phy0'
[ 9.577341] mt798x-wmac 18000000.wifi: registering led 'mt76-phy1'
[ 9.684912] mtdblock: MTD device 'bdinfo' is NAND, please consider using UBI block devices instead.
[ 9.696929] PPP generic driver version 2.4.2
[ 9.702388] NET: Registered PF_PPPOX protocol family
[ 9.711346] kmodloader: done loading kernel modules from /etc/modules.d/*
[ 9.947210] mtdblock: MTD device 'bdinfo' is NAND, please consider using UBI block devices instead.
[ 13.436063] mtk_soc_eth 15100000.ethernet eth0: PHY [mdio-bus:01] driver [RTL8221B-VB-CG 2.5Gbps PHY (C45)] (irq=53)
[ 13.450366] mtk_soc_eth 15100000.ethernet eth0: configuring for phy/2500base-x link mode
[ 13.496392] br-lan: port 1(eth0) entered blocking state
[ 13.501626] br-lan: port 1(eth0) entered disabled state
[ 13.506902] mtk_soc_eth 15100000.ethernet eth0: entered allmulticast mode
[ 13.513834] mtk_soc_eth 15100000.ethernet eth0: entered promiscuous mode
