Gemtek MXF-W1700K (Quantum Fiber W1700K)

Gemtek MXF-W1700K is a Wi-Fi 7 router distributed by Quantum Fiber as the Quantum Fiber W1700K in 2024 as part of their residential and small business offering.

Following the sale of Quantum Fiber to AT&T in 2025, moderate quantities of this device have been seen in various online marketplaces.

Key term used extensively in the guide that one should know:

U-Boot (boot loader) referenced below is the first option we have during boot to interrupt the booting process. Forces the system into a recovery menu, BIOS, or alternative boot state. Comes up as a prompt a few seconds into the boot sequence.

The guide assumes the following pre-reqs (please read)

You've got a UART Serial TTL Device More info...

You've opened the device More info...
- NOTE: you can actually use a spider board and get to the pins through the slits in the case! More info...

You know how to read/connect to the Serial Console More info...

You know how to change the IP of your computer More info...

You have TFTP software installed/setup More info...

The high level overview of what we are going to do is:

OPTIONAL - upgrade the device (AXON) stock firmware. Read further to find out why this is likely optional

OPTIONAL - Make a backup of the device (current advice is to skip this)

Install the U-Boot chainloader

Run the W1700K UBI Installer, which will automatically migrate the stock partitions and install OpenWrt

OPTIONAL: AXON Upgrade

AXON is part of the stock firmware on your device. The AXON version may have an impact on this how easy it is to transfer the initial OpenWRT image to your W1700k using TFTP. Older versions (v1.6) have been reported to be troublesome, upgrading it to v2.0 is optional.

Checking the current version is done by executing:

root@w1700k:~# strings /dev/mtd1 | grep U-Boot
ver=U-Boot 2014.04-rc1 (Jun 26 2024 - 16:03:23) AXON 2.0

Upgrading is done usingthe following commands:

# download the version of the stock fw containing the upgraded AXON
wget https://gcs-firmware-details-prod-002.storage.googleapis.com/W1700K/WXK001-05.00.30.82.bin

# split files into chunks, because of the badly coded stock TFTP client
split -b 10M WXK001-05.00.30.82.bin

# remaining commands are executed in U-boot
# erase flash
flash erase 0x600000 0x2a25c00

# start flashing firmware bit by bit
tftpboot 0x89000000 xaa
flash write 0x600000 0xa00000 0x89000000
reset
tftpboot 0x89000000 xab
flash write 0x1000000 0xa00000 0x89000000
reset
tftpboot 0x89000000 xac
flash write 0x1a00000 0xa00000 0x89000000
reset
tftpboot 0x89000000 xad
flash write 0x2400000 0xa00000 0x89000000
reset
tftpboot 0x89000000 xae
flash write 0x2e00000 0x225c00 0x89000000
reset
setenv loadaddr 0x81800000
setenv bootcmd "flash imgread 2048; bootm"
saveenv
reboot

During the next boot, you should see:

root: Reboot reason: Power On Reset
bootloader version: 1.6
Updating bootloader to 2.0

OPTIONAL: Backup stock firmware

With your serial device attached and serial session opened, boot the router and watch the serial console until presented with failsafe mode More info...

When prompted, hit 'F' then enter

Mount the root file system

mount_root

Once mounted, change the root password

passwd

Then we need to modify a file using VI

vi /etc/config/axon_platform_manager

Hit forward slash, opening a search, look for 'ssh'

Set sshServerEnable, localAccessEnable and remoteAccessEnable to 1. These options are found in the same section in the file

    "cli": {
        "telnetServerEnable": "0",
        "sshServerEnable": "1",
        "idleDisconnectTime": "0",
        "remoteAccessEnable": "1",
        "localAccessEnable": "1",
        "failedAttempts": "0",
        "failedBlockDuration": "0",
        "failedBlockReset": "0",
        "ipWhiteList": "",
        "users": "user.2.,user.5."
    },

Hit 'n', or start a new search for 'ssh' again. There are a few more updates needed

You'll find a match in a massive string that looks like this: Enabled%25252c1%25252cSSH%Drop

First 3 matches in the string will be just 'SSH'. Enter into edit mode 'i' and change the 'Drop' to 'Accept' to the right of 'SSH'. While on my device all (3) instances of 'SSH' were already 'Enabled', ensure to verify the preceding 'Enabled|Disabled' is 'Enabled'. 'Drop' did have to be changed to 'Accept' in all (3) instances

The next 2 matches in the string will be for 'Local SSH' and 'Remote SSH': Disabled%25252c1%25252cLocal SSH%25252cDrop | Disabled%25252c1%25252cRemote SSH%25252cDrop

Change 'Disabled' to 'Enabled', and 'Drop' to 'Accept'

Write and Quite the file (:wq)

Edit the following file

vi /etc/config/dropbear

Update the file to match EXACTLY below. Do not just update the existing lines to match their configuration values

config dropbear
	option PasswordAuth 'on'
	option RootPasswordAuth 'on'
	option Port '22'

Write and Quite the file (:wq)

Type

reboot

While rebooting, connect a cable to the 10g WAN port of the device to your existing network. You'll need to locate the DHCP IP of the device given by your router after it boots

Once you have the IP, SSH into the device from your computer (not the serial connection), using the 'root' user, and the password you set above

ssh root@DHCP_IP

Now we need to backup the mtdX partitions. There are (10) of them 0-9

NOTE: need verification from the community that the 'ro' partitions are just read-only mounts, and that just the main 10 need backing up

ls /dev/mtd*

Run this command (10) times, incrementing the (2) X's each time from 0 to 9

dd if=/dev/mtdX bs=1M | gzip -c | ssh SOMEUSER@SOME_LINUX_TARGET_HOST_IP 'dd of=/REMOTE_FILE_PATH/mtdX.img.gz

You can close your SSH connection.

Install the U-Boot Chainloader

The bootloader's default bootcmd will only run a signed image. However, we can still bootm our own image from flash

First, have your TFTP setup, TESTED, and ready to go More info...

Download 'openwrt-airoha-an7581-gemtek_w1700k-ubi-chainload-uboot.itb' from http://downloads.openwrt.org/snapshots/targets/airoha/an7581/.

Place this file at the configured 'base directory' of your TFTP server

Power up the device, and from the serial console, interrupt the boot loader

Now plug your computers LAN to the w1700k yellow 1g LAN port. I've personally always had success with the one closest to the 10g LAN port, but doubt this matters.

Set your clients Ethernet adapter's IP to 192.168.1.10.

Turn off your W1700k.

Delivery of the chainload image.

Option A - Download it from your TFTP server

Copy the following command to your clipboard

setenv serverip 192.168.1.10 ; setenv ipaddr 192.168.1.1 ; tftpboot 0x89000000 openwrt-airoha-an7581-gemtek_w1700k-ubi-chainload-uboot.itb

Plug the device back in and be ready to paste into your serial console the instant you enter U-BOOT. 'space - right click - enter' very quickly (interrupt - paste - execute) into the serial term window.

Your TFTP server should show the connection and the transfer progress. The serial connection should display matching information.

If you see 'T T T...', you've timed out. Reboot the W1700k and start over.

You need to then configure your boot command:

Option B - Use TFTP client to push the image

Switch on the W1700K, interrupt boot loader, in U-Boot paste:

setenv loadaddr 0x89000000

on your client put the openwrt-airoha-an7581-gemtek_w1700k-ubi-chainload-uboot.itb as as tclinux.bin to the IP of your W1700k using a TFTP client.

Once the transfer completed (any method), set the boot loader env variables and boot the chainloader:

setenv one flash read 0x600000 0x100000 \$loadaddr
setenv two "; bootm"
setenv bootcmd "$one$two"
saveenv
flash erase 0x600000 0x100000
flash write 0x600000 0x100000 0x89000000
reset

Let the device boot to the chainloader.

Uploading the Installer

Ensure your client has its IP set to 192.168.1.10.

Place the file '-ubi-initramfs-installer.itb' in the base directory of your TFTP server, this image can be found at https://github.com/hurrian/w1700k-ubi-installer/releases.

In the U-Boot Chainloader menu, select the “Boot installer via TFTP” option:

 *** U-Boot Boot Menu ***

     1. Run default boot command.
     2. Boot system via TFTP.
     3. Boot recovery system from flash.
     4. Boot installer via TFTP. <---------------- SELECT THIS
     5. Reboot.
     0. Exit

If you have previously installed OpenWrt on your device, you may be asked by the installer:

Existing UBI layout detected. Proceed and overwrite? (yes/no)

Please note that answering yes will proceed with reformatting your device.

The installer will automatically partition the flash, migrate the unique device data (EEPROM and MAC addresses), and install an initial build of OpenWrt on your device.

From there, you can sysupgrade to your desired build.

Change Your IP

Windows

Linux

TFTP Server

NOTE: there are a number of alternate tools for tftp functionality, feel free to use others. This guide will provide instructions using the Tftpd64 program

Download Tftpd64

Once running, go to 'Settings'

GLOBAL - only TFTP and TFTP client ticked

TFTP -

Base directory - set this to where you'll be placing the bootloader file. Just create a new folder in your desktop or downloads or wherever

TFTP Security - standard

Advanced options - enable ONLY the following, disable the rest
- Show Progress Bar
- Translate Unix file names
- Bind TFTP to this address (192.168.0.205) ← if chose the alternative path by modifying the TFTP address variable from above, adjust accordingly
- Allow \ as a virtual root

Everything else leave at default. Close and reopend the program. The 'Current Directory' should read your 'Base Directory' set above. And the 'Server Interface' should read the IP of what you set above. If they do not, check your settings, or change them in their respective drop downs

TEST YOUR TFTP SERVER BEFORE YOU ATTEMPT TO LOAD YOUR BOOTLOADER!!

This is way easier than troubleshooting from the device. Grab another computer in the house, install Tftpd64, use the 'client' function, and make sure you can connect. Or, if you have linux VM, use tftp commands to ensure you can download the file

This will save you time!

Wifi

radio	mode	band	channel	width	country-code	power	encryption
radio0	be	2.4	pick least congested	20 has better range and compatibility for IoT	US	driver default	sae-mixed
radio1	be	5	>=149 for most power output	80 has better range and compatibility for older equipment	US	driver default	sae-mixed
radio2	be	6	pick least congested	160	US	driver default	sae

FCC Filing Report for radiation patterns

Stock bootup light sequence.

To open, you will need a metal or plastic spudger tool as well as a T10 torque bit

Poke a hole through the barcode sticker with a screwdriver

There you will find a pretty deep T10 torque screw, if your bit is 1 1/8“ or bigger, you can remove this screw. Drop the bit into the hole, your put your screw head over it. It should be sticking out just enough to grab the bit and unscrew the screw. If you put the bit into the screw first, it will not reach

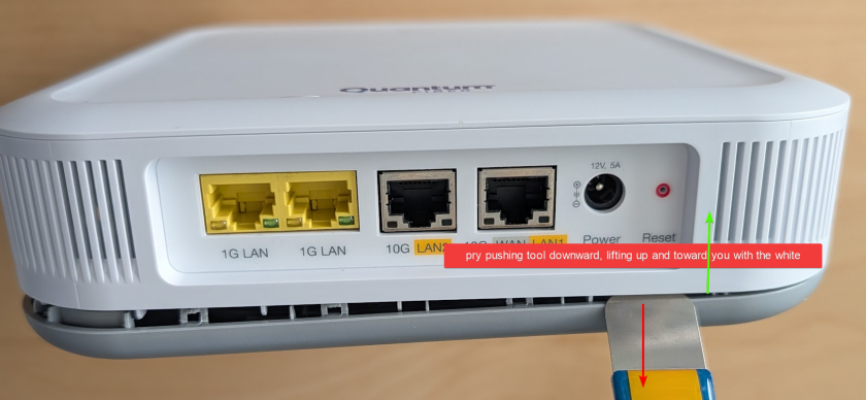

Start on the lan ports, and work your tool into the gap between the white and grey. Get the tool long end pointing in the direction of the grey. The goal is to get pressure on the white part, up and toward you, to separate the clips

Clip layout

You actually don't have to open the case, you can use a spider board and get to the pins through the slits

See below for the pin layout if you want to try this method and avoid having to open the case

You will need a USB serial dongle. There are pins on the w1700k motherboard that allow you to plug in a 'virtual monitor' or 'console port', to have direct hardwired console access. Here we will be able to see what the device is doing, send commands, and get into U-BOOT and failsafe modes. Also if you ever muck up your configuration, you can head into failsafe mode, modify the configuration files, and potentially un-muck your config.

Do not connect the VCC pin.

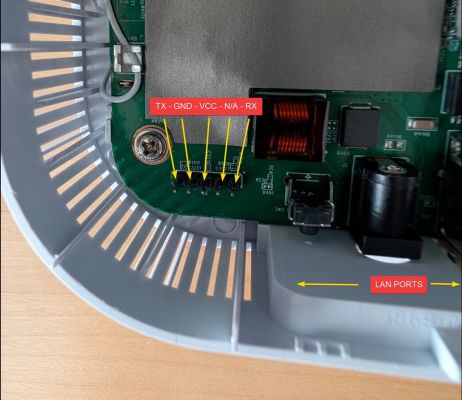

With the ethernet ports facing toward you, the pins are in the following order

TX - GND - VCC - N/A - RX

Few notes before you connect the pins mapped below

Some USB boards may have RX and TX wired/labeled incorrectly, and they are actually reversed. There is no harm in getting them backwards as they are data lanes, but if you do not see output or are unable to send commands, try flipping them.
Ensure the ground connection is high quality.
Do not connect the VCC pin.

USB PIN	W1700k PIN
RX	TX
GND	GND
* VCC 3.3v	VCC
TX	RX

Use putty for this, as it's the most straight forward and cross platform. However, there are a number of other tools for this, these are a few to highlight alternatives

Linux CLI: picocom, minicom, screen, tio, cu (uucp package), socat
Linux GUI: cutecom, putty, moserial, gtkterm
Windows: putty, tera term, realterm, coolterm, serialtool, termite

However the same configuration rules below apply: com/device-path and baud need to be set properly

Plug in your USB device, Control Panel (upper right change drop down from 'category' to large or small icons for easier navigation) → Device Manager. Expand the 'Ports (COM & LTP)'. Find the 'COMX' where X is the number

For linux, this is often /dev/ttyUSBx (e.g., /dev/ttyUSB0) or /dev/ttyACMx

Open putty and set the following

Connection type to 'Serial'

Serial Line = COMX (set your COM number)

Speed/Baud = 115200

Choose 'Open' and plug in your device, you should see console output in the terminal screen

Gemtek MXF-W1700K Flash Layout (UBI)
Layer0	raw SPI NAND flash (524288 KiB)
Layer1	mtd0 *vendor* 6144 KiB	mtd1 *chainloader* 1024 KiB	mtd2 *ubi* 505856 KiB								mtd3 *reserved_bmt* 2048 KiB
Layer2 (UBI)			ubi0_0 *ubootenv* 124 KiB	ubi0_1 *ubootenv2* 124 KiB	ubi0_2 *factory* 64KiB	ubi0_3 *recovery*	ubi0_4 *fit*			ubi0_5 *rootfs_data*
Layer3 (FIT)							*kernel-1*	*rootfs-1*	*dtb-1*	ubi0_5 *rootfs_data*
mountpoint								`/rom`		`/overlay`
filesystem								SquashFS		UBIFS

Gemtek MXF-W1700K Flash Layout (Stock)
Layer0	raw SPI NAND flash (524288 KiB)
Layer1	mtd0 *bootloader* 2048 KiB	mtd1 *u-boot-env* 2048 KiB	mtd2 *dsd* 4 KiB	mtd3 *factory* 2044 KiB	mtd4 *kernel* 16384 KiB	mtd5 *rootfs* 499712 KiB		mtd6 *reserved_bmt* 2048 KiB
Layer2						*rootfs*	*rootfs_data*
mountpoint						`/rom`	`/overlay`
filesystem						SquashFS	UBIFS
Layer3						OverlayFS (merged)
mountpoint						`/`
