Techdata: D-Link DAP-1330 A1
This device is NOT RECOMMENDED for future use with OpenWrt due to low flash/ram.
DO NOT BUY DEVICES WITH 8MB FLASH / 64MB RAM if you intend to flash an up-to-date and secure OpenWrt version onto it! See 8/64 warning for details.
This device does not have sufficient resources (flash and/or RAM) to provide secure and reliable operation.
This means that you will not be able to install many packages, and that you might experience crashes due to OOM situations more or less often. See OpenWrt on 8/64 devices what you can do now.
Usage
- IMPORTANT : Edit this page only via the LEFT edit button below the dataentry box
- After editing, please enter a short summary of your edit:
- Which field has been changed? (e.g. Ethernet 100M ports)
- What have you done? (e.g. added / updated / deleted / ...)
- Why has it been changed? / What is your datasource? (acc. devicepage / wikidevi / forum ...)
- Example summary: Ethernet 100M ports updated according wikidevi
- For adding new dropdown values, Contact an OpenWrt wiki admin (tmomas)
- For conventions / allowed values, see below
- For general usage help, see Dataentry template background
- Searching for pure technical facts? See table below.
- Searching for installation instructions, bootlogs, other info? See link to Device Page below.
Dataentry
- Device Type:
- Range Extender
- Brand:
- D-Link
- Model:
- DAP-1330
- Version:
- A1
- FCCID:
- https://fcc.io/KA2/AP1330A1
- Availability:
- Discontinued
- Supported Since Commit:
- https://git.openwrt.org/?p=openwrt/openwrt.git;a=commit;h=d265a8f2ca49a67a46493cf57de7c265855b317f
- Supported Since Rel:
- 18.06.0
- Supported Current Rel:
- 25.12.0
- Gluon support:
- Yes
- Target:
- ath79
- Subtarget:
- generic
- Package architecture:
- mips_24kc
- Bootloader:
- U-Boot
- CPU:
- Qualcomm Atheros QCA9533
- CPU Cores:
- 1
- CPU MHz:
- 650
- Flash MB:
- 8
- RAM MB:
- 64
- Ethernet 100M ports:
- 1
- Ethernet 1Gbit ports:
- -
- Ethernet 2.5Gbit ports:
- -
- Ethernet 5Gbit ports:
- -
- Ethernet 10Gbit ports:
- -
- SFP ports:
- -
- SFP+ ports:
- -
- Switch:
- -
- VLAN:
- ¿
- Modem:
- -
- WLAN Hardware:
- Qualcomm Atheros QCA9533
- WLAN 2.4GHz:
- b/g/n
- WLAN 5.0GHz:
- -
- WLAN Comments:
- 2T2R
- WLAN driver:
- ath9k
- Detachable Antennas:
- -
- Bluetooth:
- -
- miniPCI ports:
- ¿
- USB ports:
- -
- SATA ports:
- -
- Video ports:
- -
- Audio ports:
- -
- Phone ports:
- -
- Serial:
- Yes
- Serial connection parameters:
- ¿
- Serial connection voltage:
- ¿
- JTAG:
- ¿
- LED count:
- 6
- Button count:
- 2
- GPIOs:
- -
- Power Supply:
- 110-240 VAC, 50/60Hz
- Outdoor:
- No
- OpenVPN performance:
- ¿
- Wireguard performance:
- ¿
- Forum search:
- DAP-1330
- Git search:
- DAP-1330
- OEM Device Homepage URL:
- https://eu.dlink.com/uk/en/products/dap-1330-n300-wi-fi-range-extender
- Firmware OEM Stock URL:
- https://eu.dlink.com/uk/en/products/dap-1330-n300-wi-fi-range-extender
- Firmware OpenWrt Install URL:
- https://downloads.openwrt.org/releases/25.12.0/targets/ath79/generic/openwrt-25.12.0-ath79-generic-dlink_dap-1330-a1-squashfs-factory.bin
- Firmware OpenWrt Upgrade URL:
- https://downloads.openwrt.org/releases/25.12.0/targets/ath79/generic/openwrt-25.12.0-ath79-generic-dlink_dap-1330-a1-squashfs-sysupgrade.bin
- Firmware OpenWrt snapshot Install URL:
- https://downloads.openwrt.org/snapshots/targets/ath79/generic/openwrt-ath79-generic-dlink_dap-1330-a1-squashfs-factory.bin
- Firmware OpenWrt snapshot Upgrade URL:
- https://downloads.openwrt.org/snapshots/targets/ath79/generic/openwrt-ath79-generic-dlink_dap-1330-a1-squashfs-sysupgrade.bin
- Installation method(s):
- GUI OEM

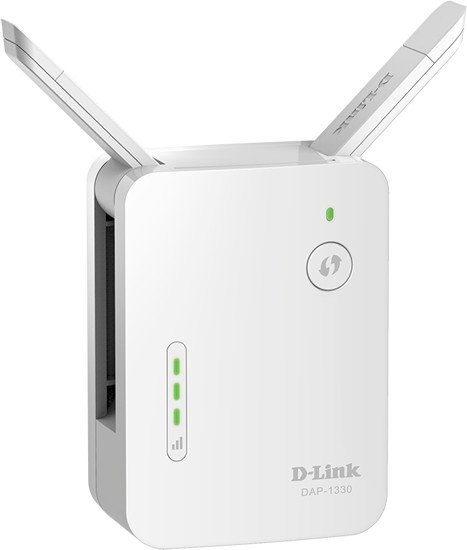

- Picture:
- Comments:
- Phased out 09/01/2018 acc. OEM website
