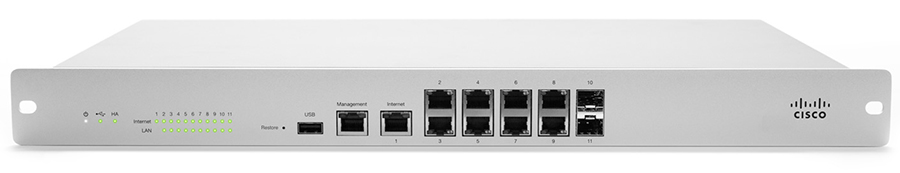

Meraki MX100

UEFI Interactive Shell v2.0. UEFI v2.31 (American Megatrends, 0x0004028E). Revision 1.02 Mapping table FS0: Alias(s):HD22b0g0b:;BLK1: PciRoot(0x0)/Pci(0x1d,0x0)/USB(0x1,0x0)/USB(0x6,0x0)/HD(1,GPT,62d3ff24-cb5c-43c3-9f83-eb824b09d1dd,0x800,0x40) BLK0: Alias(s): PciRoot(0x0)/Pci(0x1d,0x0)/USB(0x1,0x0)/USB(0x6,0x0) BLK2: Alias(s): PciRoot(0x0)/Pci(0x1d,0x0)/USB(0x1,0x0)/USB(0x6,0x0)/HD(2,GPT,82ae9054-ee54-12c4-5509-9ed4d67bed01,0x4800,0x1) BLK3: Alias(s): PciRoot(0x0)/Pci(0x1d,0x0)/USB(0x1,0x0)/USB(0x6,0x0)/HD(3,GPT,82ae9054-ee54-12c4-5509-9ed4d67bed02,0x14800,0x) BLK4: Alias(s): PciRoot(0x0)/Pci(0x1d,0x0)/USB(0x1,0x0)/USB(0x6,0x0)/HD(4,GPT,16b13616-48e6-4b76-bc94-3d9c6e28c35b,0x24800,0x) BLK5: Alias(s): PciRoot(0x0)/Pci(0x1f,0x5)/Ata(0x0) BLK6: Alias(s): PciRoot(0x0)/Pci(0x1f,0x5)/Ata(0x0)/HD(1,MBR,0x9cc01138,0x800,0x747065b0) Press ESC in 0 seconds to skip startup.nsh or any other key to continue. Shell> set -v args "console=ttyS0,115200n8 MERAKI_BOARD=tinkerbell memmap=64K$1G" Shell> set -v part1 "PciRoot(0x0)/Pci(0x1d,0x0)/USB(0x1,0x0)/USB(0x6,0x0)/HD(2,GPT,82ae9054-ee54-12c4-5509-9ed4d67bed01" Shell> set -v part2 "PciRoot(0x0)/Pci(0x1d,0x0)/USB(0x1,0x0)/USB(0x6,0x0)/HD(3,GPT,82ae9054-ee54-12c4-5509-9ed4d67bed02" Shell> ckp %part1% Device path xlated: PciRoot(0x0)/Pci(0x1d,0x0)/USB(0x1,0x0)/USB(0x6,0x0)/HD(2,GPT,82ae9054-ee54-12c4-5509-9ed4d67bed01,) Media id is 1 magic: 0x8E73ED8A, hlen: 1024, dlen: 15032320 Passing args to linux: console=ttyS0,115200n8 MERAKI_BOARD=tinkerbell memmap=64K$1G [ 0.000000] Initializing cgroup subsys cpuset [ 0.000000] Initializing cgroup subsys cpu [ 0.000000] Initializing cgroup subsys cpuacct [ 0.000000] Linux version 4.4.177-meraki (oe-user@oe-host) (gcc version 7.3.0 (GCC) ) #2 SMP Thu Mar 28 23:51:15 UTC4 [ 0.000000] Command line: console=ttyS0,115200n8 MERAKI_BOARD=tinkerbell memmap=64K$1G [ 0.000000] KERNEL supported cpus: [ 0.000000] Intel GenuineIntel [ 0.000000] AMD AuthenticAMD [ 0.000000] Centaur CentaurHauls [ 0.000000] x86/fpu: xstate_offset[2]: 576, xstate_sizes[2]: 256 [ 0.000000] x86/fpu: Supporting XSAVE feature 0x01: 'x87 floating point registers' [ 0.000000] x86/fpu: Supporting XSAVE feature 0x02: 'SSE registers' [ 0.000000] x86/fpu: Supporting XSAVE feature 0x04: 'AVX registers' [ 0.000000] x86/fpu: Enabled xstate features 0x7, context size is 832 bytes, using 'standard' format. [ 0.000000] e820: BIOS-provided physical RAM map: [ 0.000000] BIOS-e820: [mem 0x0000000000000000-0x000000000009ffff] usable [ 0.000000] BIOS-e820: [mem 0x0000000000100000-0x00000000df0bbfff] usable [ 0.000000] BIOS-e820: [mem 0x00000000df0bc000-0x00000000df0ebfff] reserved [ 0.000000] BIOS-e820: [mem 0x00000000df0ec000-0x00000000df0fbfff] ACPI data [ 0.000000] BIOS-e820: [mem 0x00000000df0fc000-0x00000000df1b6fff] ACPI NVS [ 0.000000] BIOS-e820: [mem 0x00000000df1b7000-0x00000000df3abfff] reserved [ 0.000000] BIOS-e820: [mem 0x00000000df3ac000-0x00000000df3acfff] usable [ 0.000000] BIOS-e820: [mem 0x00000000df3ad000-0x00000000df3effff] ACPI NVS [ 0.000000] BIOS-e820: [mem 0x00000000df3f0000-0x00000000df7fffff] usable [ 0.000000] BIOS-e820: [mem 0x00000000fed1c000-0x00000000fed3ffff] reserved [ 0.000000] BIOS-e820: [mem 0x00000000fed45000-0x00000000fed8ffff] reserved [ 0.000000] BIOS-e820: [mem 0x00000000ff000000-0x00000000ffffffff] reserved [ 0.000000] BIOS-e820: [mem 0x0000000100000000-0x000000011fffffff] usable [ 0.000000] NX (Execute Disable) protection: active [ 0.000000] extended physical RAM map: [ 0.000000] reserve setup_data: [mem 0x0000000000000000-0x000000000009ffff] usable [ 0.000000] reserve setup_data: [mem 0x0000000000100000-0x000000003fffffff] usable [ 0.000000] reserve setup_data: [mem 0x0000000040000000-0x000000004000ffff] reserved [ 0.000000] reserve setup_data: [mem 0x0000000040010000-0x00000000ceaa3017] usable [ 0.000000] reserve setup_data: [mem 0x00000000ceaa3018-0x00000000ceaac057] usable [ 0.000000] reserve setup_data: [mem 0x00000000ceaac058-0x00000000ceaad017] usable [ 0.000000] reserve setup_data: [mem 0x00000000ceaad018-0x00000000ceab6057] usable [ 0.000000] reserve setup_data: [mem 0x00000000ceab6058-0x00000000ceab7017] usable [ 0.000000] reserve setup_data: [mem 0x00000000ceab7018-0x00000000ceac0057] usable [ 0.000000] reserve setup_data: [mem 0x00000000ceac0058-0x00000000ceac1017] usable [ 0.000000] reserve setup_data: [mem 0x00000000ceac1018-0x00000000ceaca057] usable [ 0.000000] reserve setup_data: [mem 0x00000000ceaca058-0x00000000df0bbfff] usable [ 0.000000] reserve setup_data: [mem 0x00000000df0bc000-0x00000000df0ebfff] reserved [ 0.000000] reserve setup_data: [mem 0x00000000df0ec000-0x00000000df0fbfff] ACPI data [ 0.000000] reserve setup_data: [mem 0x00000000df0fc000-0x00000000df1b6fff] ACPI NVS [ 0.000000] reserve setup_data: [mem 0x00000000df1b7000-0x00000000df3abfff] reserved [ 0.000000] reserve setup_data: [mem 0x00000000df3ac000-0x00000000df3acfff] usable [ 0.000000] reserve setup_data: [mem 0x00000000df3ad000-0x00000000df3effff] ACPI NVS [ 0.000000] reserve setup_data: [mem 0x00000000df3f0000-0x00000000df7fffff] usable [ 0.000000] reserve setup_data: [mem 0x00000000fed1c000-0x00000000fed3ffff] reserved [ 0.000000] reserve setup_data: [mem 0x00000000fed45000-0x00000000fed8ffff] reserved [ 0.000000] reserve setup_data: [mem 0x00000000ff000000-0x00000000ffffffff] reserved [ 0.000000] reserve setup_data: [mem 0x0000000100000000-0x000000011fffffff] usable [ 0.000000] e820: user-defined physical RAM map: [ 0.000000] user: [mem 0x0000000000000000-0x000000000009ffff] usable [ 0.000000] user: [mem 0x0000000000100000-0x000000003fffffff] usable [ 0.000000] user: [mem 0x0000000040000000-0x000000004000ffff] reserved [ 0.000000] user: [mem 0x0000000040010000-0x00000000ceaa3017] usable [ 0.000000] user: [mem 0x00000000ceaa3018-0x00000000ceaac057] usable [ 0.000000] user: [mem 0x00000000ceaac058-0x00000000ceaad017] usable [ 0.000000] user: [mem 0x00000000ceaad018-0x00000000ceab6057] usable [ 0.000000] user: [mem 0x00000000ceab6058-0x00000000ceab7017] usable [ 0.000000] user: [mem 0x00000000ceab7018-0x00000000ceac0057] usable [ 0.000000] user: [mem 0x00000000ceac0058-0x00000000ceac1017] usable [ 0.000000] user: [mem 0x00000000ceac1018-0x00000000ceaca057] usable [ 0.000000] user: [mem 0x00000000ceaca058-0x00000000df0bbfff] usable [ 0.000000] user: [mem 0x00000000df0bc000-0x00000000df0ebfff] reserved [ 0.000000] user: [mem 0x00000000df0ec000-0x00000000df0fbfff] ACPI data [ 0.000000] user: [mem 0x00000000df0fc000-0x00000000df1b6fff] ACPI NVS [ 0.000000] user: [mem 0x00000000df1b7000-0x00000000df3abfff] reserved [ 0.000000] user: [mem 0x00000000df3ac000-0x00000000df3acfff] usable [ 0.000000] user: [mem 0x00000000df3ad000-0x00000000df3effff] ACPI NVS [ 0.000000] user: [mem 0x00000000df3f0000-0x00000000df7fffff] usable [ 0.000000] user: [mem 0x00000000fed1c000-0x00000000fed3ffff] reserved [ 0.000000] user: [mem 0x00000000fed45000-0x00000000fed8ffff] reserved [ 0.000000] user: [mem 0x00000000ff000000-0x00000000ffffffff] reserved [ 0.000000] user: [mem 0x0000000100000000-0x000000011fffffff] usable [ 0.000000] efi: EFI v2.31 by American Megatrends [ 0.000000] efi: ESRT=0xdf33bc98 ACPI=0xdf0f5000 ACPI 2.0=0xdf0f5000 SMBIOS=0xf04d0 MPS=0xfd4b0 [ 0.000000] esrt: Reserving ESRT space from 0x00000000df33bc98 to 0x00000000df33bcd0. [ 0.000000] SMBIOS 2.7 present. [ 0.000000] e820: last_pfn = 0x120000 max_arch_pfn = 0x400000000 [ 0.000000] x86/PAT: Configuration [0-7]: WB WT UC- UC WB WT UC- UC [ 0.000000] e820: last_pfn = 0xdf800 max_arch_pfn = 0x400000000 [ 0.000000] ACPI: Early table checksum verification disabled [ 0.000000] ACPI: RSDP 0x00000000DF0F5000 000024 (v02 ALASKA) [ 0.000000] ACPI: XSDT 0x00000000DF0F5078 000074 (v01 ALASKA A M I 01072009 AMI 00010013) [ 0.000000] ACPI: FACP 0x00000000DF0FAED0 00010C (v05 ALASKA A M I 01072009 AMI 00010013) [ 0.000000] ACPI: DSDT 0x00000000DF0F5180 005D50 (v02 ALASKA A M I 00000000 INTL 20051117) [ 0.000000] ACPI: FACS 0x00000000DF1AE080 000040 [ 0.000000] ACPI: APIC 0x00000000DF0FAFE0 000084 (v03 ALASKA A M I 01072009 AMI 00010013) [ 0.000000] ACPI: FPDT 0x00000000DF0FB068 000044 (v01 ALASKA A M I 01072009 AMI 00010013) [ 0.000000] ACPI: SSDT 0x00000000DF0FB0B0 000102 (v01 AMICPU PROC 00000001 MSFT 03000001) [ 0.000000] ACPI: MCFG 0x00000000DF0FB1B8 00003C (v01 ALASKA A M I 01072009 MSFT 00000097) [ 0.000000] ACPI: HPET 0x00000000DF0FB1F8 000038 (v01 ALASKA A M I 01072009 AMI. 00000005) [ 0.000000] ACPI: EINJ 0x00000000DF0FB230 000130 (v01 AMI AMI EINJ 00000000 00000000) [ 0.000000] ACPI: ERST 0x00000000DF0FB360 000230 (v01 AMIER AMI ERST 00000000 00000000) [ 0.000000] ACPI: HEST 0x00000000DF0FB590 0000A8 (v01 AMI AMI HEST 00000000 00000000) [ 0.000000] ACPI: BERT 0x00000000DF0FB638 000030 (v01 AMI AMI BERT 00000000 00000000) [ 0.000000] cma: Reserved 16 MiB at 0x000000011e800000 [ 0.000000] Zone ranges: [ 0.000000] DMA [mem 0x0000000000001000-0x0000000000ffffff] [ 0.000000] DMA32 [mem 0x0000000001000000-0x00000000ffffffff] [ 0.000000] Normal [mem 0x0000000100000000-0x000000011fffffff] [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000000001000-0x000000000009ffff] [ 0.000000] node 0: [mem 0x0000000000100000-0x000000003fffffff] [ 0.000000] node 0: [mem 0x0000000040010000-0x00000000df0bbfff] [ 0.000000] node 0: [mem 0x00000000df3ac000-0x00000000df3acfff] [ 0.000000] node 0: [mem 0x00000000df3f0000-0x00000000df7fffff] [ 0.000000] node 0: [mem 0x0000000100000000-0x000000011fffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000000001000-0x000000011fffffff] [ 0.000000] ACPI: PM-Timer IO Port: 0x408 [ 0.000000] ACPI: LAPIC_NMI (acpi_id[0x00] high edge lint[0x1]) [ 0.000000] ACPI: LAPIC_NMI (acpi_id[0x02] high edge lint[0x1]) [ 0.000000] ACPI: LAPIC_NMI (acpi_id[0x01] high edge lint[0x1]) [ 0.000000] ACPI: LAPIC_NMI (acpi_id[0x03] high edge lint[0x1]) [ 0.000000] IOAPIC[0]: apic_id 0, version 32, address 0xfec00000, GSI 0-23 [ 0.000000] ACPI: INT_SRC_OVR (bus 0 bus_irq 0 global_irq 2 dfl dfl) [ 0.000000] ACPI: INT_SRC_OVR (bus 0 bus_irq 9 global_irq 9 high level) [ 0.000000] Using ACPI (MADT) for SMP configuration information [ 0.000000] ACPI: HPET id: 0x8086a701 base: 0xfed00000 [ 0.000000] smpboot: Allowing 4 CPUs, 0 hotplug CPUs [ 0.000000] e820: [mem 0xdf800000-0xfed1bfff] available for PCI devices [ 0.000000] clocksource: refined-jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645519600211568 ns [ 0.000000] setup_percpu: NR_CPUS:32 nr_cpumask_bits:32 nr_cpu_ids:4 nr_node_ids:1 [ 0.000000] PERCPU: Embedded 32 pages/cpu @ffff88011e400000 s90392 r8192 d32488 u524288 [ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 1029231 [ 0.000000] Kernel command line: console=ttyS0,115200n8 MERAKI_BOARD=tinkerbell memmap=64K$1G [ 0.000000] PID hash table entries: 4096 (order: 3, 32768 bytes) [ 0.000000] Dentry cache hash table entries: 524288 (order: 10, 4194304 bytes) [ 0.000000] Inode-cache hash table entries: 262144 (order: 9, 2097152 bytes) [ 0.000000] Memory: 3817052K/4182384K available (7398K kernel code, 794K rwdata, 3856K rodata, 10424K init, 656K bss) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] Kernel/User page tables isolation: enabled [ 0.000000] Hierarchical RCU implementation. [ 0.000000] RCU restricting CPUs from NR_CPUS=32 to nr_cpu_ids=4. [ 0.000000] RCU: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=4 [ 0.000000] NR_IRQS:4352 nr_irqs:456 16 [ 0.000000] Console: colour dummy device 80x25 [ 0.000000] console [ttyS0] enabled [ 0.000000] clocksource: hpet: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 133484882848 ns [ 0.000000] tsc: Fast TSC calibration using PIT [ 0.000000] tsc: Detected 1500.029 MHz processor [ 0.000059] Calibrating delay loop (skipped), value calculated using timer frequency.. 3000.05 BogoMIPS (lpj=6000116) [ 0.010669] pid_max: default: 32768 minimum: 301 [ 0.015288] ACPI: Core revision 20150930 [ 0.023685] ACPI: 2 ACPI AML tables successfully acquired and loaded [ 0.032830] Mount-cache hash table entries: 8192 (order: 4, 65536 bytes) [ 0.039525] Mountpoint-cache hash table entries: 8192 (order: 4, 65536 bytes) [ 0.046921] Initializing cgroup subsys io [ 0.050931] Initializing cgroup subsys memory [ 0.055288] Initializing cgroup subsys devices [ 0.059729] Initializing cgroup subsys freezer [ 0.064168] Initializing cgroup subsys pids [ 0.068363] CPU: Physical Processor ID: 0 [ 0.072369] CPU: Processor Core ID: 0 [ 0.076029] ENERGY_PERF_BIAS: Set to 'normal', was 'performance' [ 0.082026] ENERGY_PERF_BIAS: View and update with x86_energy_perf_policy(8) [ 0.089065] process: using mwait in idle threads [ 0.093679] Last level iTLB entries: 4KB 512, 2MB 8, 4MB 8 [ 0.099160] Last level dTLB entries: 4KB 512, 2MB 32, 4MB 32, 1GB 0 [ 0.105418] Spectre V2 : Spectre mitigation: kernel not compiled with retpoline; no mitigation available! [ 0.114796] Speculative Store Bypass: Vulnerable [ 0.119881] debug: unmapping init [mem 0xffffffff826f6000-0xffffffff826fdfff] [ 0.136950] ..TIMER: vector=0x30 apic1=0 pin1=2 apic2=-1 pin2=-1 [ 0.182638] smpboot: CPU0: Intel(R) Pentium(R) CPU @ 1.50GHz (family: 0x6, model: 0x2a, stepping: 0x7) [ 0.192061] Performance Events: PEBS fmt1+, 16-deep LBR, SandyBridge events, full-width counters, Intel PMU driver. [ 0.202535] ... version: 3 [ 0.206531] ... bit width: 48 [ 0.210616] ... generic registers: 4 [ 0.214612] ... value mask: 0000ffffffffffff [ 0.219907] ... max period: 00007fffffffffff [ 0.225205] ... fixed-purpose events: 3 [ 0.229201] ... event mask: 000000070000000f [ 0.234877] NMI watchdog: enabled on all CPUs, permanently consumes one hw-PMU counter. [ 0.242952] x86: Booting SMP configuration: [ 0.247126] .... node #0, CPUs: #1 #2 #3 [ 0.259280] x86: Booted up 1 node, 4 CPUs [ 0.263463] smpboot: Total of 4 processors activated (12000.23 BogoMIPS) [ 0.274316] devtmpfs: initialized [ 0.277954] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns [ 0.278001] kworker/u8:0 (29) used greatest stack depth: 14152 bytes left [ 0.294455] futex hash table entries: 1024 (order: 4, 65536 bytes) [ 0.300792] xor: automatically using best checksumming function: [ 0.346799] avx : 14034.000 MB/sec [ 0.351123] NET: Registered protocol family 16 [ 0.355809] kworker/u8:0 (41) used greatest stack depth: 14136 bytes left [ 0.371587] cpuidle: using governor ladder [ 0.387691] cpuidle: using governor menu [ 0.391771] ACPI: bus type PCI registered [ 0.395838] PCI: MMCONFIG for domain 0000 [bus 00-ff] at [mem 0xe0000000-0xefffffff] (base 0xe0000000) [ 0.405127] PCI: not using MMCONFIG [ 0.408602] PCI: Using configuration type 1 for base access [ 0.414319] perf_event_intel: PMU erratum BJ122, BV98, HSD29 worked around, HT is on [ 0.506092] raid6: sse2x1 gen() 4608 MB/s [ 0.578385] raid6: sse2x1 xor() 3171 MB/s [ 0.650673] raid6: sse2x2 gen() 5398 MB/s [ 0.722957] raid6: sse2x2 xor() 3664 MB/s [ 0.795243] raid6: sse2x4 gen() 6441 MB/s [ 0.867533] raid6: sse2x4 xor() 4351 MB/s [ 0.871791] raid6: using algorithm sse2x4 gen() 6441 MB/s [ 0.877174] raid6: .... xor() 4351 MB/s, rmw enabled [ 0.882129] raid6: using ssse3x2 recovery algorithm [ 0.887061] ACPI: Added _OSI(Module Device) [ 0.891236] ACPI: Added _OSI(Processor Device) [ 0.895666] ACPI: Added _OSI(3.0 _SCP Extensions) [ 0.900359] ACPI: Added _OSI(Processor Aggregator Device) [ 0.908353] ACPI: Executed 1 blocks of module-level executable AML code [ 0.917633] ACPI: Dynamic OEM Table Load: [ 0.921652] ACPI: SSDT 0xFFFF880119093400 0003E0 (v01 AMI IST 00000001 MSFT 03000001) [ 0.930669] ACPI: Dynamic OEM Table Load: [ 0.934688] ACPI: SSDT 0xFFFF8800DEA44E00 000120 (v01 AMI CST 00000001 MSFT 03000001) [ 0.944261] ACPI: Interpreter enabled [ 0.947921] ACPI: (supports S0 S5) [ 0.951313] ACPI: Using IOAPIC for interrupt routing [ 0.956318] PCI: MMCONFIG for domain 0000 [bus 00-ff] at [mem 0xe0000000-0xefffffff] (base 0xe0000000) [ 0.965688] PCI: MMCONFIG at [mem 0xe0000000-0xefffffff] reserved in ACPI motherboard resources [ 0.974376] pmd_set_huge: Cannot satisfy [mem 0xe0000000-0xe0200000] with a huge-page mapping due to MTRR override. [ 0.985122] PCI: Using host bridge windows from ACPI; if necessary, use "pci=nocrs" and report a bug [ 1.001611] ACPI: PCI Root Bridge [PCI0] (domain 0000 [bus 00-ff]) [ 1.007785] acpi PNP0A08:00: _OSC: OS supports [ExtendedConfig ASPM ClockPM Segments MSI] [ 1.016236] acpi PNP0A08:00: _OSC: OS now controls [PME AER PCIeCapability] [ 1.023378] PCI host bridge to bus 0000:00 [ 1.027469] pci_bus 0000:00: root bus resource [io 0x0000-0x03af window] [ 1.034239] pci_bus 0000:00: root bus resource [io 0x03e0-0x0cf7 window] [ 1.041011] pci_bus 0000:00: root bus resource [io 0x03b0-0x03df window] [ 1.047784] pci_bus 0000:00: root bus resource [io 0x0d00-0xffff window] [ 1.054558] pci_bus 0000:00: root bus resource [mem 0x000a0000-0x000bffff window] [ 1.062023] pci_bus 0000:00: root bus resource [mem 0x000c0000-0x000dffff window] [ 1.069487] pci_bus 0000:00: root bus resource [mem 0xf0000000-0xfe7fffff window] [ 1.076951] pci_bus 0000:00: root bus resource [bus 00-ff] [ 1.087634] pci 0000:00:1f.2: legacy IDE quirk: reg 0x10: [io 0x01f0-0x01f7] [ 1.094755] pci 0000:00:1f.2: legacy IDE quirk: reg 0x14: [io 0x03f6] [ 1.101266] pci 0000:00:1f.2: legacy IDE quirk: reg 0x18: [io 0x0170-0x0177] [ 1.108384] pci 0000:00:1f.2: legacy IDE quirk: reg 0x1c: [io 0x0376] [ 1.116239] pci 0000:01:00.0: VF(n) BAR0 space: [mem 0x00000000-0x0000ffff 64bit] (contains BAR0 for 16 VFs) [ 1.126055] pci 0000:01:00.0: VF(n) BAR2 space: [mem 0x00000000-0x0000ffff 64bit] (contains BAR2 for 16 VFs) [ 1.143896] pci 0000:00:01.0: PCI bridge to [bus 01] [ 1.156901] pci 0000:00:01.1: PCI bridge to [bus 02] [ 1.169903] pci 0000:00:01.2: PCI bridge to [bus 03] [ 1.175472] ACPI: PCI Interrupt Link [LNKA] (IRQs 3 4 5 6 7 10 *11 12 14 15) [ 1.182673] ACPI: PCI Interrupt Link [LNKB] (IRQs 3 4 *5 6 7 10 11 12 14 15) [ 1.189871] ACPI: PCI Interrupt Link [LNKC] (IRQs 3 4 5 6 *7 10 11 12 14 15) [ 1.197063] ACPI: PCI Interrupt Link [LNKD] (IRQs 3 *4 5 6 7 10 11 12 14 15) [ 1.204258] ACPI: PCI Interrupt Link [LNKE] (IRQs 3 4 5 6 7 10 11 12 14 15) *0 [ 1.211637] ACPI: PCI Interrupt Link [LNKF] (IRQs 3 4 5 6 7 10 11 12 14 15) *0 [ 1.219012] ACPI: PCI Interrupt Link [LNKG] (IRQs 3 4 5 6 7 10 11 12 14 15) *0 [ 1.226385] ACPI: PCI Interrupt Link [LNKH] (IRQs 3 4 5 6 7 10 *11 12 14 15) [ 1.233630] ACPI: Enabled 2 GPEs in block 00 to 3F [ 1.238632] SCSI subsystem initialized [ 1.242504] ACPI: bus type USB registered [ 1.246539] usbcore: registered new interface driver usbfs [ 1.252026] usbcore: registered new interface driver hub [ 1.257344] usbcore: registered new device driver usb [ 1.262435] pps_core: LinuxPPS API ver. 1 registered [ 1.267388] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it> [ 1.276509] PTP clock support registered [ 1.280592] PCI: Using ACPI for IRQ routing [ 1.299621] amd_nb: Cannot enumerate AMD northbridges [ 1.304683] clocksource: Switched to clocksource hpet [ 1.313984] pnp: PnP ACPI init [ 1.317233] system 00:00: [mem 0xfed10000-0xfed19fff] has been reserved [ 1.323838] system 00:00: [mem 0xe0000000-0xefffffff] has been reserved [ 1.330442] system 00:00: [mem 0xfed90000-0xfed93fff] has been reserved [ 1.337044] system 00:00: [mem 0xfed20000-0xfed3ffff] has been reserved [ 1.343648] system 00:00: [mem 0xfee00000-0xfee0ffff] has been reserved [ 1.350384] system 00:01: [io 0x0a10-0x0a1f] has been reserved [ 1.357051] system 00:05: [io 0x04d0-0x04d1] has been reserved [ 1.363225] system 00:06: [io 0x0400-0x047f] has been reserved [ 1.369142] system 00:06: [io 0x1180-0x119f] has been reserved [ 1.375052] system 00:06: [io 0x0500-0x057f] has been reserved [ 1.380964] system 00:06: [mem 0xfed20000-0xfed8ffff] could not be reserved [ 1.387916] system 00:06: [mem 0xfed1c000-0xfed1ffff] has been reserved [ 1.394519] system 00:06: [mem 0xfec00000-0xfecfffff] could not be reserved [ 1.401471] system 00:06: [mem 0xfed04000-0xfed04fff] has been reserved [ 1.408074] system 00:06: [mem 0xff000000-0xffffffff] has been reserved [ 1.414942] pnp: PnP ACPI: found 7 devices [ 1.425466] clocksource: acpi_pm: mask: 0xffffff max_cycles: 0xffffff, max_idle_ns: 2085701024 ns [ 1.434375] pci 0000:01:00.0: BAR 7: assigned [mem 0xfe6b4000-0xfe6c3fff 64bit] [ 1.441679] pci 0000:01:00.0: BAR 9: assigned [mem 0xfe6c4000-0xfe6d3fff 64bit] [ 1.448979] pci 0000:00:01.0: PCI bridge to [bus 01] [ 1.453940] pci 0000:00:01.0: bridge window [io 0xe000-0xefff] [ 1.460024] pci 0000:00:01.0: bridge window [mem 0xfe600000-0xfe6fffff] [ 1.466806] pci 0000:00:01.0: bridge window [mem 0xfe500000-0xfe5fffff 64bit pref] [ 1.474539] pci 0000:00:01.1: PCI bridge to [bus 02] [ 1.479502] pci 0000:00:01.1: bridge window [mem 0xfe400000-0xfe4fffff 64bit pref] [ 1.487235] pci 0000:00:01.2: PCI bridge to [bus 03] [ 1.492195] pci 0000:00:01.2: bridge window [mem 0xfe300000-0xfe3fffff 64bit pref] [ 1.500019] NET: Registered protocol family 2 [ 1.504561] TCP established hash table entries: 32768 (order: 6, 262144 bytes) [ 1.511852] TCP bind hash table entries: 32768 (order: 7, 524288 bytes) [ 1.518583] TCP: Hash tables configured (established 32768 bind 32768) [ 1.525125] UDP hash table entries: 2048 (order: 4, 65536 bytes) [ 1.531142] UDP-Lite hash table entries: 2048 (order: 4, 65536 bytes) [ 1.537647] NET: Registered protocol family 1 [ 1.765578] PCI-DMA: Using software bounce buffering for IO (SWIOTLB) [ 1.772023] software IO TLB: mapped [mem 0xd02ab000-0xd42ab000] (64MB) [ 1.778610] RAPL PMU detected, API unit is 2^-32 Joules, 3 fixed counters 163840 ms ovfl timer [ 1.787212] hw unit of domain pp0-core 2^-16 Joules [ 1.792084] hw unit of domain package 2^-16 Joules [ 1.796870] hw unit of domain pp1-gpu 2^-16 Joules [ 1.803565] hotplug (510) used greatest stack depth: 14024 bytes left [ 1.806242] Cisco Meraki Tinkerbell Init [ 1.806955] Initialise system trusted keyring [ 1.816737] HugeTLB registered 2 MB page size, pre-allocated 0 pages [ 1.821766] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 1.821995] fuse init (API version 7.23) [ 1.834400] hotplug (543) used greatest stack depth: 13832 bytes left [ 1.842296] NET: Registered protocol family 38 [ 1.846760] Key type asymmetric registered [ 1.850866] Asymmetric key parser 'x509' registered [ 1.855881] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 250) [ 1.863286] io scheduler noop registered [ 1.867216] io scheduler deadline registered (default) [ 1.877201] Serial: 8250/16550 driver, 2 ports, IRQ sharing enabled [ 1.883739] serial 00:02: disabled [ 1.907595] 00:03: ttyS0 at I/O 0x3f8 (irq = 3, base_baud = 115200) is a 16550A [ 1.915227] Trying to register dev faulty etc [ 1.919724] Non-volatile memory driver v1.3 [ 1.927256] loop: module loaded [ 1.930928] ata_piix 0000:00:1f.5: MAP [ P0 -- P1 -- ] [ 2.091954] scsi host0: ata_piix [ 2.095351] scsi host1: ata_piix [ 2.098638] ata1: SATA max UDMA/133 cmd 0xf070 ctl 0xf060 bmdma 0xf030 irq 19 [ 2.099924] hotplug (762) used greatest stack depth: 13432 bytes left [ 2.112196] ata2: SATA max UDMA/133 cmd 0xf050 ctl 0xf040 bmdma 0xf038 irq 19 [ 2.119455] tun: Universal TUN/TAP device driver, 1.6 [ 2.124503] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com> [ 2.130916] cnic: QLogic cnicDriver v2.5.22 (July 20, 2015) [ 2.136623] bnx2x: QLogic 5771x/578xx 10/20-Gigabit Ethernet Driver bnx2x 1.712.30-0 (2014/02/10) [ 2.145790] tg3.c:v3.137 (May 11, 2014) [ 2.149646] tg3 0000:02:00.0: enabling device (0140 -> 0142) [ 2.169229] tg3 0000:02:00.0 eth0: Tigon3 [partno(BCM95719) rev 5719001] (PCI Express) MAC address 00:18:0a:4e:bb:35 [ 2.179749] tg3 0000:02:00.0 eth0: attached PHY is 5719C (10/100/1000Base-T Ethernet) (WireSpeed[1], EEE[1]) [ 2.189567] tg3 0000:02:00.0 eth0: RXcsums[1] LinkChgREG[0] MIirq[0] ASF[0] TSOcap[1] [ 2.197389] tg3 0000:02:00.0 eth0: dma_rwctrl[00000001] dma_mask[64-bit] [ 2.204142] tg3 0000:02:00.1: enabling device (0140 -> 0142) [ 2.225155] tg3 0000:02:00.1 eth1: Tigon3 [partno(BCM95719) rev 5719001] (PCI Express) MAC address 00:18:0a:4e:bb:34 [ 2.235673] tg3 0000:02:00.1 eth1: attached PHY is 5719C (10/100/1000Base-T Ethernet) (WireSpeed[1], EEE[1]) [ 2.245493] tg3 0000:02:00.1 eth1: RXcsums[1] LinkChgREG[0] MIirq[0] ASF[0] TSOcap[1] [ 2.253316] tg3 0000:02:00.1 eth1: dma_rwctrl[00000001] dma_mask[64-bit] [ 2.260068] tg3 0000:02:00.2: enabling device (0140 -> 0142) [ 2.279123] tg3 0000:02:00.2 eth2: Tigon3 [partno(BCM95719) rev 5719001] (PCI Express) MAC address 00:18:0a:4e:bb:37 [ 2.289639] tg3 0000:02:00.2 eth2: attached PHY is 5718S (1000Base-SX Ethernet) (WireSpeed[0], EEE[0]) [ 2.298934] tg3 0000:02:00.2 eth2: RXcsums[1] LinkChgREG[0] MIirq[0] ASF[0] TSOcap[1] [ 2.306753] tg3 0000:02:00.2 eth2: dma_rwctrl[00000001] dma_mask[64-bit] [ 2.313504] tg3 0000:02:00.3: enabling device (0140 -> 0142) [ 2.331204] tg3 0000:02:00.3 eth3: Tigon3 [partno(BCM95719) rev 5719001] (PCI Express) MAC address 00:18:0a:4e:bb:36 [ 2.341732] tg3 0000:02:00.3 eth3: attached PHY is 5718S (1000Base-SX Ethernet) (WireSpeed[0], EEE[0]) [ 2.351025] tg3 0000:02:00.3 eth3: RXcsums[1] LinkChgREG[0] MIirq[0] ASF[0] TSOcap[1] [ 2.358846] tg3 0000:02:00.3 eth3: dma_rwctrl[00000001] dma_mask[64-bit] [ 2.365595] tg3 0000:03:00.0: enabling device (0140 -> 0142) [ 2.389158] tg3 0000:03:00.0 eth4: Tigon3 [partno(BCM95719) rev 5719001] (PCI Express) MAC address 00:18:0a:4e:bb:2f [ 2.399675] tg3 0000:03:00.0 eth4: attached PHY is 5719C (10/100/1000Base-T Ethernet) (WireSpeed[1], EEE[1]) [ 2.409492] tg3 0000:03:00.0 eth4: RXcsums[1] LinkChgREG[0] MIirq[0] ASF[0] TSOcap[1] [ 2.417311] tg3 0000:03:00.0 eth4: dma_rwctrl[00000001] dma_mask[64-bit] [ 2.424056] tg3 0000:03:00.1: enabling device (0140 -> 0142) [ 2.453317] ata1: SATA link down (SStatus 0 SControl 300) [ 2.454966] tg3 0000:03:00.1 eth5: Tigon3 [partno(BCM95719) rev 5719001] (PCI Express) MAC address 00:18:0a:4e:bb:2e [ 2.454970] tg3 0000:03:00.1 eth5: attached PHY is 5719C (10/100/1000Base-T Ethernet) (WireSpeed[1], EEE[1]) [ 2.454973] tg3 0000:03:00.1 eth5: RXcsums[1] LinkChgREG[0] MIirq[0] ASF[0] TSOcap[1] [ 2.454976] tg3 0000:03:00.1 eth5: dma_rwctrl[00000001] dma_mask[64-bit] [ 2.455094] tg3 0000:03:00.2: enabling device (0140 -> 0142) [ 2.469403] tg3 0000:03:00.2 eth6: Tigon3 [partno(BCM95719) rev 5719001] (PCI Express) MAC address 00:18:0a:4e:bb:2d [ 2.469407] tg3 0000:03:00.2 eth6: attached PHY is 5719C (10/100/1000Base-T Ethernet) (WireSpeed[1], EEE[1]) [ 2.469410] tg3 0000:03:00.2 eth6: RXcsums[1] LinkChgREG[0] MIirq[0] ASF[0] TSOcap[1] [ 2.469413] tg3 0000:03:00.2 eth6: dma_rwctrl[00000001] dma_mask[64-bit] [ 2.469538] tg3 0000:03:00.3: enabling device (0140 -> 0142) [ 2.485309] tg3 0000:03:00.3 eth7: Tigon3 [partno(BCM95719) rev 5719001] (PCI Express) MAC address 00:18:0a:4e:bb:2c [ 2.485313] tg3 0000:03:00.3 eth7: attached PHY is 5719C (10/100/1000Base-T Ethernet) (WireSpeed[1], EEE[1]) [ 2.485317] tg3 0000:03:00.3 eth7: RXcsums[1] LinkChgREG[0] MIirq[0] ASF[0] TSOcap[1] [ 2.485320] tg3 0000:03:00.3 eth7: dma_rwctrl[00000001] dma_mask[64-bit] [ 2.485467] e1000: Intel(R) PRO/1000 Network Driver - version 7.3.21-k8-NAPI [ 2.485468] e1000: Copyright (c) 1999-2006 Intel Corporation. [ 2.485514] e1000e: Intel(R) PRO/1000 Network Driver - 3.2.6-k [ 2.485515] e1000e: Copyright(c) 1999 - 2015 Intel Corporation. [ 2.485559] igb: Intel(R) Gigabit Ethernet Network Driver - version 5.3.0-k [ 2.485560] igb: Copyright (c) 2007-2014 Intel Corporation. [ 2.764852] ata2: SATA link up 3.0 Gbps (SStatus 123 SControl 300) [ 2.777292] ata2.00: ATA-9: WDC WD10EURX-63UY4Y0, 01.01A01, max UDMA/133 [ 2.784004] ata2.00: 1953525168 sectors, multi 16: LBA48 NCQ (depth 0/32) [ 2.797301] ata2.00: configured for UDMA/133 [ 2.801592] tsc: Refined TSC clocksource calibration: 1499.999 MHz [ 2.801857] scsi 1:0:0:0: Direct-Access ATA WDC WD10EURX-63U 1A01 PQ: 0 ANSI: 5 [ 2.802085] sd 1:0:0:0: [sda] 1953525168 512-byte logical blocks: (1.00 TB/932 GiB) [ 2.802088] sd 1:0:0:0: [sda] 4096-byte physical blocks [ 2.802161] sd 1:0:0:0: [sda] Write Protect is off [ 2.802195] sd 1:0:0:0: [sda] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA [ 2.807832] sda: sda1 [ 2.816123] sd 1:0:0:0: [sda] Attached SCSI disk [ 2.837358] igb 0000:01:00.1: added PHC on eth8 [ 2.837360] igb 0000:01:00.1: Intel(R) Gigabit Ethernet Network Connection [ 2.837363] igb 0000:01:00.1: eth8: (PCIe:5.0Gb/s:Width x4) 00:18:0a:4e:bb:31 [ 2.837367] igb 0000:01:00.1: eth8: PBA No: Unknown [ 2.837370] igb 0000:01:00.1: Using MSI-X interrupts. 4 rx queue(s), 4 tx queue(s) [ 2.880494] clocksource: tsc: mask: 0xffffffffffffffff max_cycles: 0x159f21c7033, max_idle_ns: 440795280316 ns [ 3.181282] igb 0000:01:00.2: added PHC on eth9 [ 3.185813] igb 0000:01:00.2: Intel(R) Gigabit Ethernet Network Connection [ 3.192688] igb 0000:01:00.2: eth9: (PCIe:5.0Gb/s:Width x4) 00:18:0a:4e:bb:30 [ 3.199820] igb 0000:01:00.2: eth9: PBA No: Unknown [ 3.204692] igb 0000:01:00.2: Using MSI-X interrupts. 4 rx queue(s), 4 tx queue(s) [ 3.557273] igb 0000:01:00.3: added PHC on eth10 [ 3.561899] igb 0000:01:00.3: Intel(R) Gigabit Ethernet Network Connection [ 3.568773] igb 0000:01:00.3: eth10: (PCIe:5.0Gb/s:Width x4) 00:18:0a:4e:bb:33 [ 3.575984] igb 0000:01:00.3: eth10: PBA No: Unknown [ 3.580942] igb 0000:01:00.3: Using MSI-X interrupts. 4 rx queue(s), 4 tx queue(s) [ 3.888927] clocksource: Switched to clocksource tsc [ 3.933266] igb 0000:01:00.4: added PHC on eth11 [ 3.937885] igb 0000:01:00.4: Intel(R) Gigabit Ethernet Network Connection [ 3.944753] igb 0000:01:00.4: eth11: (PCIe:5.0Gb/s:Width x4) 00:18:0a:4e:bb:32 [ 3.951963] igb 0000:01:00.4: eth11: PBA No: Unknown [ 3.956916] igb 0000:01:00.4: Using MSI-X interrupts. 4 rx queue(s), 4 tx queue(s) [ 3.964510] igbvf: Intel(R) Gigabit Virtual Function Network Driver - version 2.0.2-k [ 3.972321] igbvf: Copyright (c) 2009 - 2012 Intel Corporation. [ 3.978255] ixgbe: Intel(R) 10 Gigabit PCI Express Network Driver - version 4.2.1-k [ 3.985892] ixgbe: Copyright (c) 1999-2015 Intel Corporation. [ 3.991652] ixgb: Intel(R) PRO/10GbE Network Driver - version 1.0.135-k2-NAPI [ 3.998775] ixgb: Copyright (c) 1999-2008 Intel Corporation. [ 4.004466] PPP generic driver version 2.4.2 [ 4.008789] PPP BSD Compression module registered [ 4.013490] PPP Deflate Compression module registered [ 4.018537] NET: Registered protocol family 24 [ 4.023010] usbcore: registered new interface driver ax88179_178a [ 4.029106] usbcore: registered new interface driver cdc_ether [ 4.034942] usbcore: registered new interface driver cdc_eem [ 4.040600] usbcore: registered new interface driver net1080 [ 4.046260] usbcore: registered new interface driver cdc_subset [ 4.052183] usbcore: registered new interface driver zaurus [ 4.057768] usbcore: registered new interface driver cdc_ncm [ 4.063516] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver [ 4.070045] ehci-pci: EHCI PCI platform driver [ 4.074663] ehci-pci 0000:00:1d.0: EHCI Host Controller [ 4.080007] ehci-pci 0000:00:1d.0: new USB bus registered, assigned bus number 1 [ 4.087413] ehci-pci 0000:00:1d.0: debug port 2 [ 4.096290] ehci-pci 0000:00:1d.0: irq 23, io mem 0xfe705000 [ 4.112727] ehci-pci 0000:00:1d.0: USB 2.0 started, EHCI 1.00 [ 4.119130] hub 1-0:1.0: USB hub found [ 4.122925] hub 1-0:1.0: 2 ports detected [ 4.127283] uhci_hcd: USB Universal Host Controller Interface driver [ 4.133744] usbcore: registered new interface driver cdc_acm [ 4.139393] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters [ 4.147398] usbcore: registered new interface driver cdc_wdm [ 4.153071] usbcore: registered new interface driver usb-storage [ 4.159093] usbcore: registered new interface driver usbserial [ 4.164925] usbcore: registered new interface driver usbserial_generic [ 4.171446] usbserial: USB Serial support registered for generic [ 4.177453] usbcore: registered new interface driver option [ 4.183022] usbserial: USB Serial support registered for GSM modem (1-port) [ 4.189994] usbcore: registered new interface driver qcserial [ 4.195736] usbserial: USB Serial support registered for Qualcomm USB modem [ 4.202696] usbcore: registered new interface driver sierra [ 4.208263] usbserial: USB Serial support registered for Sierra USB modem [ 4.215080] i8042: PNP: No PS/2 controller found. Probing ports directly. [ 4.224686] serio: i8042 KBD port at 0x60,0x64 irq 1 [ 4.229645] serio: i8042 AUX port at 0x60,0x64 irq 12 [ 4.234751] rtc_cmos 00:04: RTC can wake from S4 [ 4.239581] rtc_cmos 00:04: rtc core: registered rtc_cmos as rtc0 [ 4.245707] rtc_cmos 00:04: alarms up to one month, y3k, 114 bytes nvram, hpet irqs [ 4.253367] i2c /dev entries driver [ 4.256886] i801_smbus 0000:00:1f.3: Interrupt disabled by user [ 4.262800] i801_smbus 0000:00:1f.3: enabling device (0141 -> 0143) [ 4.269187] i801_smbus 0000:00:1f.3: SMBus using polling [ 4.284200] iTCO_wdt: Intel TCO WatchDog Timer Driver v1.11 [ 4.290008] dh89xxx-wdt dh89xxx-wdt.0: DH89xxxCC watchdog [ 4.295419] md: raid0 personality registered for level 0 [ 4.300726] md: raid1 personality registered for level 1 [ 4.306029] md: raid10 personality registered for level 10 [ 4.311568] md: raid6 personality registered for level 6 [ 4.316872] md: raid5 personality registered for level 5 [ 4.322169] md: raid4 personality registered for level 4 [ 4.327666] device-mapper: ioctl: 4.34.0-ioctl (2015-10-28) initialised: dm-devel@redhat.com [ 4.336355] device-mapper: multipath: version 1.10.0 loaded [ 4.341929] device-mapper: multipath round-robin: version 1.0.0 loaded [ 4.348451] device-mapper: multipath queue-length: version 0.1.0 loaded [ 4.355056] device-mapper: multipath service-time: version 0.2.0 loaded [ 4.361688] device-mapper: dm-log-userspace: version 1.3.0 loaded [ 4.367802] Intel P-state driver initializing. [ 4.373765] EFI Variables Facility v0.08 2004-May-17 [ 4.393682] usbcore: registered new interface driver usbhid [ 4.399251] usbhid: USB HID core driver [ 4.403132] oprofile: using NMI interrupt. [ 4.407422] Initializing XFRM netlink socket [ 4.412165] NET: Registered protocol family 10 [ 4.419636] sit: IPv6 over IPv4 tunneling driver [ 4.424466] NET: Registered protocol family 17 [ 4.428916] NET: Registered protocol family 15 [ 4.433365] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_net. [ 4.445957] l2tp_core: L2TP core driver, V2.0 [ 4.450308] l2tp_ppp: PPPoL2TP kernel driver, V2.0 [ 4.455095] l2tp_debugfs: L2TP debugfs support [ 4.459533] 8021q: 802.1Q VLAN Support v1.8 [ 4.463799] microcode: CPU0 sig=0x206a7, pf=0x10, revision=0x29 [ 4.469713] microcode: CPU1 sig=0x206a7, pf=0x10, revision=0x29 [ 4.475659] microcode: CPU2 sig=0x206a7, pf=0x10, revision=0x29 [ 4.480634] usb 1-1: new high-speed USB device number 2 using ehci-pci [ 4.488081] microcode: CPU3 sig=0x206a7, pf=0x10, revision=0x29 [ 4.494136] microcode: Microcode Update Driver: v2.01 <tigran@aivazian.fsnet.co.uk>, Peter Oruba [ 4.502949] AVX version of gcm_enc/dec engaged. [ 4.507469] AES CTR mode by8 optimization enabled [ 4.513837] Loading compiled-in X.509 certificates [ 4.520154] Loaded X.509 cert 'Cisco Meraki: Auto-generated kernel signing key: 356c43366779bf966c41e0b272ebe074eb8f' [ 4.531637] Key type encrypted registered [ 4.536326] rtc_cmos 00:04: setting system clock to 2025-09-19 18:19:36 UTC (1758305976) [ 4.544602] devtmpfs: mounted [ 4.547705] debug: unmapping init [mem 0xffffffff81cc8000-0xffffffff826f5fff] [ 4.555161] Write protecting the kernel read-only data: 12288k [ 4.561353] debug: unmapping init [mem 0xffff88000273b000-0xffff8800027fffff] [ 4.568547] debug: unmapping init [mem 0xffff880002bc4000-0xffff880002bfffff] [ 4.579700] random: init: uninitialized urandom read (4 bytes read, 12 bits of entropy available) am_i_capture_ker[ 4.588819] Made it into bootsh: Mar 28 2024 23:16:08 nel cmd: console[ 4.595279] bootsh build wired-18-1-202403271439-G6b7c4670-rel-chalet =ttyS0,115200n8 MERAKI_BOARD=tinkerbell memmap=64K$1G [ 4.609984] ERROR: extfs_mount: unable to link /dev/meraki-board-config for x86 [ 4.621269] hub 1-1:1.0: USB hub found [ 4.621562] random: board_data_conf: uninitialized urandom read (4 bytes read, 12 bits of entropy available) [ 4.627769] random: board_data_conf: uninitialized urandom read (4 bytes read, 12 bits of entropy available) [ 4.637829] random: board_data_conf: uninitialized urandom read (4 bytes read, 12 bits of entropy available) [ 4.647542] random: board_data_conf: uninitialized urandom read (4 bytes read, 12 bits of entropy available) [ 4.652062] extfs_mount: arch:x86_64, board:x86, hw:unknown_hardware, pid:1186, ppid:1, fd1:/extfs_mount.log, fd2:/eg [ 4.676240] hub 1-1:1.0: 6 ports detected [ 4.952710] usb 1-1.6: new high-speed USB device number 3 using ehci-pci [ 5.053151] usb-storage 1-1.6:1.0: USB Mass Storage device detected [ 5.059938] usb-storage 1-1.6:1.0: Quirks match for vid 13fe pid 3600: 4000 [ 5.067024] scsi host2: usb-storage 1-1.6:1.0 [ 6.069797] scsi 2:0:0:0: Direct-Access USB DISK 2.0 PMAP PQ: 0 ANSI: 4 [ 6.078955] sd 2:0:0:0: [sdb] 1957888 512-byte logical blocks: (1.00 GB/956 MiB) [ 6.087693] sd 2:0:0:0: [sdb] Write Protect is off [ 6.093932] sd 2:0:0:0: [sdb] No Caching mode page found [ 6.099256] sd 2:0:0:0: [sdb] Assuming drive cache: write through [ 6.119526] sdb: sdb1 sdb2 sdb3 sdb4 [ 6.127114] sd 2:0:0:0: [sdb] Attached SCSI removable disk [ 8.544686] random: nonblocking pool is initialized [ 9.220789] Mounting ext3 /dev/sdb4 on /storage [ 9.227901] EXT4-fs: Warning: mounting with data=journal disables delayed allocation and O_DIRECT support! [ 9.237552] EXT4-fs (sdb4): mounting ext3 file system using the ext4 subsystem [ 9.263514] EXT4-fs (sdb4): mounted filesystem with journalled data mode. Opts: data=journal,barrier=1 [ 9.281245] extfs_mount done, returning 0 (success) [ 9.286299] Child exited, status = 0 [ 10.290194] am_i_capture_kernel cmd: console=ttyS0,115200n8 MERAKI_BOARD=tinkerbell memmap=64K$1G [ 10.299073] [ 10.300578] error: open /dev/meraki-board-config [ 10.305209] error: open /dev/meraki-board-config In manufacturing: FALSE In rma mode: FALSE [ 10.389754] Bootsh: trying rootfs path: /storage/rootfs/rootfs-wired-18-1-202403271439-G6b7c4670-rel-chalet Attempting to setup root /storage/rootfs/rootfs-wired-18-1-202403271439-G6b7c4670-rel-chalet... [ 14.144263] copy_directory: unable to open /ro/usr/bin/iptables-xml: No such file or directory [ 14.454828] copy_directory: unable to open /ro/usr/bin/nsenter: No such file or directory [ 14.846804] copy_directory: unable to open /ro/usr/bin/unshare: No such file or directory [ 19.764401] copy_directory: unable to open /ro/usr/sbin/birdc: No such file or directory [ 19.772582] copy_directory: unable to open /ro/usr/sbin/birdc2: No such file or directory [ 19.780824] copy_directory: unable to open /ro/usr/sbin/birdcl: No such file or directory [2025-09-19 18:19:53.062] +cp -a /ro/bin /rw/bin [2025-09-19 18:19:53.152] +cp -a /ro/sbin /rw/sbin [2025-09-19 18:19:53.153] +cp /*.log /rw/ [ 21.258021] loop0 (1438) used greatest stack depth: 13032 bytes left init started: BusyBox v1.34.0 (2024-03-28 23:22:52 UTC) [ 21.278991] ERROR: early_init: unable to link /dev/meraki-board-config for x86 [ 21.339665] early_init: arch:x86_64, board:x86, hw:unknown_hardware, pid:1452, ppid:1450, fd1:/early_init.log, fd2:/g [ 21.354841] early_init done [ 21.365419] ERROR: S05diagnostic: unable to link /dev/meraki-board-config for x86 WARNING! THIS CONSOLE IS LOGGED! UNAUTHORIZED ACCESS FORBIDDEN! error: open /dev/meraki-board-config error: open /dev/meraki-board-config <Meraki> [ 21.425965] S05diagnostic: arch:x86_64, board:x86, hw:unknown_hardware, pid:1526, ppid:1524, fd1:/dev/kmsg,g [ 21.439682] S05diagnostic done [ 21.450025] ERROR: S10boot: unable to link /dev/meraki-board-config for x86 [ 21.510532] S10boot: arch:x86_64, board:x86, hw:unknown_hardware, pid:1607, ppid:1524, fd1:/dev/kmsg, fd2:/dev/kmsg [ 21.530480] board is tinkerbell [ 21.556543] cp: can't stat '/run/*': No such file or directory [ 21.753093] Quick boot reason lookup: [ 21.759830] No valid safe config available or fallback disabled, remove unsafe config [ 21.778985] ip_local_port_range: prefer different parity for start/end values. [ 21.786950] NMI watchdog: enabled on all CPUs, permanently consumes one hw-PMU counter. [ 21.798788] ICMPv6: process `sysctl' is using deprecated sysctl (syscall) net.ipv6.neigh.default.base_reachable_timed [ 21.884317] error: open /dev/meraki-board-config [ 21.889039] error: open /dev/meraki-board-config [ 21.893673] board_data_config: error, no bd found! [ 21.898966] sh: true: unknown operand [ 21.908835] tg3 0000:03:00.3 mgmt0: renamed from eth7 [ 22.043355] IPv6: ADDRCONF(NETDEV_UP): mgmt0: link is not ready [ 22.049302] device mgmt0 entered promiscuous mode [ 22.240934] Actual changes: [ 22.243750] tx-checksumming: off [ 22.243750] tx-checksum-ipv4: off [ 22.243750] tx-checksum-ipv6: off [ 22.243750] tcp-segmentation-offload: off [ 22.243750] tx-tcp-segmentation: off [requested on] [ 22.243750] tx-tcp-ecn-segmentation: off [requested on] [ 22.243750] tx-tcp6-segmentation: off [requested on] [ 22.273499] Actual changes: [ 22.276800] scatter-gather: off [ 22.276800] tx-scatter-gather: off [ 22.276800] generic-segmentation-offload: off [requested on] [ 22.290764] Cannot change rx-vlan-offload [ 22.294792] Could not change any device features [ 22.300040] Cannot change tx-vlan-offload [ 22.304063] Could not change any device features [ 22.312561] tg3 0000:03:00.2 port1: renamed from eth6 [ 22.443105] IPv6: ADDRCONF(NETDEV_UP): port1: link is not ready [ 22.449054] device port1 entered promiscuous mode [ 22.640823] Actual changes: [ 22.643650] tx-checksumming: off [ 22.643650] tx-checksum-ipv4: off [ 22.643650] tx-checksum-ipv6: off [ 22.643650] tcp-segmentation-offload: off [ 22.643650] tx-tcp-segmentation: off [requested on] [ 22.643650] tx-tcp-ecn-segmentation: off [requested on] [ 22.643650] tx-tcp6-segmentation: off [requested on] [ 22.673509] Actual changes: [ 22.676330] scatter-gather: off [ 22.676330] tx-scatter-gather: off [ 22.676330] generic-segmentation-offload: off [requested on] [ 22.690369] Cannot change rx-vlan-offload [ 22.694411] Could not change any device features [ 22.699630] Cannot change tx-vlan-offload [ 22.703666] Could not change any device features [ 22.712101] tg3 0000:03:00.1 port2: renamed from eth5 [ 22.729310] device port2 entered promiscuous mode [ 22.736000] Actual changes: [ 22.738834] tx-checksumming: off [ 22.738834] tx-checksum-ipv4: off [ 22.738834] tx-checksum-ipv6: off [ 22.738834] tcp-segmentation-offload: off [ 22.738834] tx-tcp-segmentation: off [requested on] [ 22.738834] tx-tcp-ecn-segmentation: off [requested on] [ 22.738834] tx-tcp6-segmentation: off [requested on] [ 22.768782] Actual changes: [ 22.771590] scatter-gather: off [ 22.771590] tx-scatter-gather: off [ 22.771590] generic-segmentation-offload: off [requested on] [ 22.785628] Cannot change rx-vlan-offload [ 22.789665] Could not change any device features [ 22.794821] Cannot change tx-vlan-offload [ 22.798863] Could not change any device features [ 22.804658] tg3 0000:03:00.0 port3: renamed from eth4 [ 22.821253] device port3 entered promiscuous mode [ 22.827773] Actual changes: [ 22.830596] tx-checksumming: off [ 22.830596] tx-checksum-ipv4: off [ 22.830596] tx-checksum-ipv6: off [ 22.830596] tcp-segmentation-offload: off [ 22.830596] tx-tcp-segmentation: off [requested on] [ 22.830596] tx-tcp-ecn-segmentation: off [requested on] [ 22.830596] tx-tcp6-segmentation: off [requested on] [ 22.860561] Actual changes: [ 22.863377] scatter-gather: off [ 22.863377] tx-scatter-gather: off [ 22.863377] generic-segmentation-offload: off [requested on] [ 22.877399] Cannot change rx-vlan-offload [ 22.881419] Could not change any device features [ 22.886599] Cannot change tx-vlan-offload [ 22.890654] Could not change any device features [ 22.896303] igb 0000:01:00.2 port4: renamed from eth9 [ 22.917320] device port4 entered promiscuous mode [ 22.922677] igb 0000:01:00.2: changing MTU from 1500 to 1536 [ 23.249867] Actual changes: [ 23.252694] tx-checksumming: off [ 23.252694] tx-checksum-ipv4: off [ 23.252694] tx-checksum-ipv6: off [ 23.252694] tx-checksum-sctp: off [ 23.252694] tcp-segmentation-offload: off [ 23.252694] tx-tcp-segmentation: off [requested on] [ 23.252694] tx-tcp6-segmentation: off [requested on] [ 23.280653] Actual changes: [ 23.283464] scatter-gather: off [ 23.283464] tx-scatter-gather: off [ 23.283464] generic-segmentation-offload: off [requested on] [ 23.297498] Actual changes: [ 23.300346] rx-vlan-offload: off [ 23.300346] tx-vlan-offload: off [requested on] [ 23.309194] Cannot get EEE settings: Not supported [ 23.314600] igb 0000:01:00.1 port5: renamed from eth8 [ 23.337243] device port5 entered promiscuous mode [ 23.342535] igb 0000:01:00.1: changing MTU from 1500 to 1536 [ 23.669910] Actual changes: [ 23.672761] tx-checksumming: off [ 23.672761] tx-checksum-ipv4: off [ 23.672761] tx-checksum-ipv6: off [ 23.672761] tx-checksum-sctp: off [ 23.672761] tcp-segmentation-offload: off [ 23.672761] tx-tcp-segmentation: off [requested on] [ 23.672761] tx-tcp6-segmentation: off [requested on] [ 23.700723] Actual changes: [ 23.703537] scatter-gather: off [ 23.703537] tx-scatter-gather: off [ 23.703537] generic-segmentation-offload: off [requested on] [ 23.717603] Actual changes: [ 23.720423] rx-vlan-offload: off [ 23.720423] tx-vlan-offload: off [requested on] [ 23.729352] Cannot get EEE settings: Not supported [ 23.734727] igb 0000:01:00.4 port6: renamed from eth11 [ 23.753258] device port6 entered promiscuous mode [ 23.758598] igb 0000:01:00.4: changing MTU from 1500 to 1536 [ 24.085843] Actual changes: [ 24.088682] tx-checksumming: off [ 24.088682] tx-checksum-ipv4: off [ 24.088682] tx-checksum-ipv6: off [ 24.088682] tx-checksum-sctp: off [ 24.088682] tcp-segmentation-offload: off [ 24.088682] tx-tcp-segmentation: off [requested on] [ 24.088682] tx-tcp6-segmentation: off [requested on] [ 24.116662] Actual changes: [ 24.119473] scatter-gather: off [ 24.119473] tx-scatter-gather: off [ 24.119473] generic-segmentation-offload: off [requested on] [ 24.133549] Actual changes: [ 24.136380] rx-vlan-offload: off [ 24.136380] tx-vlan-offload: off [requested on] [ 24.145304] Cannot get EEE settings: Not supported [ 24.150692] igb 0000:01:00.3 port7: renamed from eth10 [ 24.169243] device port7 entered promiscuous mode [ 24.174584] igb 0000:01:00.3: changing MTU from 1500 to 1536 [ 24.501846] Actual changes: [ 24.504676] tx-checksumming: off [ 24.504676] tx-checksum-ipv4: off [ 24.504676] tx-checksum-ipv6: off [ 24.504676] tx-checksum-sctp: off [ 24.504676] tcp-segmentation-offload: off [ 24.504676] tx-tcp-segmentation: off [requested on] [ 24.504676] tx-tcp6-segmentation: off [requested on] [ 24.532656] Actual changes: [ 24.535469] scatter-gather: off [ 24.535469] tx-scatter-gather: off [ 24.535469] generic-segmentation-offload: off [requested on] [ 24.549554] Actual changes: [ 24.552374] rx-vlan-offload: off [ 24.552374] tx-vlan-offload: off [requested on] [ 24.561280] Cannot get EEE settings: Not supported [ 24.566676] tg3 0000:02:00.1 port8: renamed from eth1 [ 24.585221] device port8 entered promiscuous mode [ 24.591834] Actual changes: [ 24.594664] tx-checksumming: off [ 24.594664] tx-checksum-ipv4: off [ 24.594664] tx-checksum-ipv6: off [ 24.594664] tcp-segmentation-offload: off [ 24.594664] tx-tcp-segmentation: off [requested on] [ 24.594664] tx-tcp-ecn-segmentation: off [requested on] [ 24.594664] tx-tcp6-segmentation: off [requested on] [ 24.624525] Actual changes: [ 24.627333] scatter-gather: off [ 24.627333] tx-scatter-gather: off [ 24.627333] generic-segmentation-offload: off [requested on] [ 24.641288] Cannot change rx-vlan-offload [ 24.645321] Could not change any device features [ 24.650439] Cannot change tx-vlan-offload [ 24.654466] Could not change any device features [ 24.660076] tg3 0000:02:00.0 port9: renamed from eth0 [ 24.677262] device port9 entered promiscuous mode [ 24.683853] Actual changes: [ 24.686686] tx-checksumming: off [ 24.686686] tx-checksum-ipv4: off [ 24.686686] tx-checksum-ipv6: off [ 24.686686] tcp-segmentation-offload: off [ 24.686686] tx-tcp-segmentation: off [requested on] [ 24.686686] tx-tcp-ecn-segmentation: off [requested on] [ 24.686686] tx-tcp6-segmentation: off [requested on] [ 24.716529] Actual changes: [ 24.719345] scatter-gather: off [ 24.719345] tx-scatter-gather: off [ 24.719345] generic-segmentation-offload: off [requested on] [ 24.733285] Cannot change rx-vlan-offload [ 24.737316] Could not change any device features [ 24.742443] Cannot change tx-vlan-offload [ 24.746459] Could not change any device features [ 24.752090] tg3 0000:02:00.2 port10: renamed from eth2 [ 24.769290] device port10 entered promiscuous mode [ 24.775942] Actual changes: [ 24.778777] tx-checksumming: off [ 24.778777] tx-checksum-ipv4: off [ 24.778777] tx-checksum-ipv6: off [ 24.778777] tcp-segmentation-offload: off [ 24.778777] tx-tcp-segmentation: off [requested on] [ 24.778777] tx-tcp-ecn-segmentation: off [requested on] [ 24.778777] tx-tcp6-segmentation: off [requested on] [ 24.808652] Actual changes: [ 24.811464] scatter-gather: off [ 24.811464] tx-scatter-gather: off [ 24.811464] generic-segmentation-offload: off [requested on] [ 24.825510] Cannot change rx-vlan-offload [ 24.829542] Could not change any device features [ 24.834735] Cannot change tx-vlan-offload [ 24.838753] Could not change any device features [ 24.843941] tg3 0000:02:00.2 port10: Board does not support EEE! [ 24.849952] Cannot get EEE settings: Not supported [ 24.855321] tg3 0000:02:00.3 port11: renamed from eth3 [ 24.877291] device port11 entered promiscuous mode [ 24.884001] Actual changes: [ 24.886839] tx-checksumming: off [ 24.886839] tx-checksum-ipv4: off [ 24.886839] tx-checksum-ipv6: off [ 24.886839] tcp-segmentation-offload: off [ 24.886839] tx-tcp-segmentation: off [requested on] [ 24.886839] tx-tcp-ecn-segmentation: off [requested on] [ 24.886839] tx-tcp6-segmentation: off [requested on] [ 24.916761] Actual changes: [ 24.919580] scatter-gather: off [ 24.919580] tx-scatter-gather: off [ 24.919580] generic-segmentation-offload: off [requested on] [ 24.933588] Cannot change rx-vlan-offload [ 24.937631] Could not change any device features [ 24.942867] Cannot change tx-vlan-offload [ 24.946903] Could not change any device features [ 24.952053] tg3 0000:02:00.3 port11: Board does not support EEE! [ 24.958072] Cannot get EEE settings: Not supported [ 24.963521] rm: can't remove '/lib/modules/wd_drv.ko': No such file or directory [ 24.971554] rm: can't remove '/lib/modules/btn_drv*.ko': No such file or directory [ 24.979729] rm: can't remove '/lib/modules/sled_drv.ko': No such file or directory [ 24.998185] error: open /dev/meraki-board-config [ 25.002810] error: open /dev/meraki-board-config [ 25.007429] board_data_config: error, no bd found! [ 25.022456] error: open /dev/meraki-board-config [ 25.027085] error: open /dev/meraki-board-config [ 25.031697] board_data_config: error, no bd found! [ 25.075364] !!!!! {meraki_watchdog} meraki_watchdog set hardware watchdog timeout to 160 [ 25.084242] vm.panic_on_oom = 1 [ 25.087547] [2025-09-19 18:19:57.051] +sysctl -w vm.panic_on_oom=1 [ 25.112967] ntdp: loading out-of-tree module taints kernel. [ 25.118543] ntdp: module license 'Copyright (c) 2014-2020 by cisco Systems, Inc.' taints kernel. [ 25.127347] Disabling lock debugging due to kernel taint [ 25.134759] NTKM - ntkm_init - Nitro KM loaded [ 25.213364] click: starting router thread pid 2114 (ffff8800dcdb8000) [ 25.347493] Single synchronous check for reset [ 25.366714] md: linear personality registered for level -1 [ 25.444081] [ 25.447241] boot 557 build wired-18-1-202403271439-G6b7c4670-rel-chalet board x86 mac 00:18:0A:4E:BB:2C [ 25.462376] Module: ntdp .text=0xffffffffa0000000 .data=0xffffffffa00bf540 .bss=0xffffffffa00c0200 [ 25.471482] Module: proclikefs .text=0xffffffffa015b000 .data= .bss=0xffffffffa015be80 [ 25.479574] Module: merakiclick .text=0xffffffffa0160000 .data=0xffffffffa02ee580 .bss=0xffffffffa02eea80 [ 25.489298] Module: elts_meraki .text=0xffffffffa04f9000 .data=0xffffffffa08d0e80 .bss=0xffffffffa08d6840 [ 25.498984] Module: linear .text=0xffffffffa0b7e000 .data=0xffffffffa0b7e880 .bss= [ 25.506661] Module: reed_solomon .text=0xffffffffa0b82000 .data=0xffffffffa0b832a0 .bss= [ 25.517052] S10boot done [ 25.526329] ERROR: S80meraki: unable to link /dev/meraki-board-config for x86 [ 25.586984] S80meraki: arch:x86_64, board:x86, hw:unknown_hardware, pid:2338, ppid:1524, fd1:/dev/kmsg, fd2:/dev/kmsg [ 25.608408] ramoops: using module parameters [ 25.612753] pstore: Registered ramoops as persistent store backend [ 25.618933] ramoops: attached 0x10000@0x40000000, ecc: 0/0 [ 25.630989] RUNIT: installed, starting runsvdir... [ 25.650731] udevd[2438]: starting version 3.2.2 [ 25.656333] udevd[2438]: specified group 'tty' unknown [ 25.667473] udevd[2438]: specified group 'dialout' unknown [ 25.673480] udevd[2438]: specified group 'kmem' unknown [ 25.679039] udevd[2438]: specified group 'input' unknown [ 25.686901] ok: run: strongswan_log_trailer: (pid 2574) 0s, normally down [ 25.688701] udevd[2438]: specified group 'video' unknown [ 25.688766] udevd[2438]: specified group 'audio' unknown [ 25.688885] udevd[2438]: specified group 'lp' unknown [ 25.688963] udevd[2438]: specified group 'disk' unknown [ 25.689011] udevd[2438]: specified group 'cdrom' unknown [ 25.689088] udevd[2438]: specified group 'tape' unknown [ 25.696579] udevd[2438]: starting eudev-3.2.2 [ 25.699803] tail: can't open '/var/log/strongswan/current': No such file or directory [ 25.714625] !!!!! {/usr/bin/list_updater} reading /tmp/brain_state failed, error 2 (No such file or directory) [ 25.743322] tail: can't open '/var/log/strongswan_meraki/current': No such file or directory [ 26.119850] ok: run: strongswan_meraki_log_trailer: (pid 2626) 1s, normally down [ 26.362400] udevd[2438]: specified group 'tty' unknown [ 26.367639] udevd[2438]: specified group 'dialout' unknown [ 26.373182] udevd[2438]: specified group 'kmem' unknown [ 26.378461] udevd[2438]: specified group 'input' unknown [ 26.383812] udevd[2438]: specified group 'video' unknown [ 26.389183] udevd[2438]: specified group 'audio' unknown [ 26.394572] udevd[2438]: specified group 'lp' unknown [ 26.399682] udevd[2438]: specified group 'disk' unknown [ 26.404958] udevd[2438]: specified group 'cdrom' unknown [ 26.410316] udevd[2438]: specified group 'tape' unknown [ 26.637907] down: /service/baykok: 1s; run: log: (pid 2710) 1s [ 26.644669] ; run: log: (pid 2496) 1s [ 26.644669] run: /service/signed_object_fetch: (pid 2553) 1s; run: log: (pid 2494) 1s [ 26.644669] run: /service/snort_event_server: (pid 2552) 1s; run: log: (pid 2491) 1s [ 26.644669] down: /service/start_cellular: 1s; run: log: (pid 2484) 1s [ 26.644669] down: /service/strongswan: 1s; run: log: (pid 2476) 1s [ 26.644669] run: /service/strongswan_log_trailer: (pid 2574) 1s, normally down [ 26.644669] down: /service/strongswan_meraki: 1s; run: log: (pid 2462) 1s [ 26.644669] run: /service/strongswan_meraki_log_trailer: (pid 2626) 1s, normally down [ 26.644669] run: /service/top: (pid 2449) 1s; run: log: (pid 2441) 1s [ 26.644669] run: /service/ubusd: (pid 2440) 1s; run: log: (pid 2432) 1s [ 26.644669] run: /service/ucd: (pid 2439) 1s; run: log: (pid 2430) 1s [ 26.644669] down: /service/uclick: 1s; run: log: (pid 2428) 1s [ 26.644669] down: /service/uclickfs: 1s; run: log: (pid 2425) 1s [ 26.699876] tail: /var/log/strongswan/current has appeared; following end of new file [ 26.740225] RUNIT: runsvdir has launched all supervisors [ 26.743399] tail: /var/log/strongswan_meraki/current has appeared; following end of new file [ 26.762821] not unlocked [ 26.768377] No hardware support for TAM on this device [ 26.774258] ln: /usr/bin/slowfcgi: File exists [ 27.902254] !!!!! {/usr/bin/wired_brain} failed writing /sys/class/poe/poe0/power_budget errno 2 (No such file or di" [ 29.029664] Loading SAL Module ... [ 30.035788] Reading config file. [ 30.039094] Starting acceleration device icp_dev0. [ 30.254890] Started AE 0 [ 30.257425] Started AE 1 [ 30.259951] Started AE 2 [ 30.262490] Started AE 3 [ 31.363586] Quick Assist icp_authenc_aes_cbc_hmac_sha1 loaded [ 31.369800] Quick Assist icp_authenc_aes_cbc_hmac_md5 loaded [ 31.375607] Quick Assist icp_authenc_aes_cbc_hmac_sha256 loaded [ 31.381661] Quick Assist icp_authenc_aes_cbc_hmac_sha512 loaded [ 31.387759] Quick Assist icp_authenc_des3_cbc_hmac_sha1 loaded [ 31.393654] Quick Assist icp_authenc_des3_cbc_hmac_md5 loaded [ 31.399443] Quick Assist icp_authenc_des3_cbc_hmac_sha256 loaded [ 31.405514] Quick Assist icp_authenc_des3_cbc_hmac_sha512 loaded [ 31.411557] Quick Assist icp_authenc_rfc3686_aes_ctr_sha1_hmac loaded [ 31.418051] Quick Assist icp_authenc_rfc3686_aes_ctr_sha256_hmac loaded [ 33.326236] sed (3079) used greatest stack depth: 11216 bytes left [ 33.326267] chatter: CheckIPHeader@2327: IP header check failed: bad IP version [ 33.326292] chatter: CheckIPHeader@2353: IP header check failed: bad IP version [ 33.326361] chatter: to_snort/CheckIPHeader@4: IP header check failed: bad IP version [ 33.401902] chatter: from_bird :: FromHost: device 'bird' went down [ 33.408174] chatter: to_bird :: ToHost: device 'bird' went down [ 33.453206] chatter: from_bird :: FromHost: device 'bird' came up [ 33.459320] chatter: to_bird :: ToHost: device 'bird' came up [ 33.562129] chatter: from_bird_autovpn0 :: FromHost: device 'bird_autovpn0' went down [ 33.569997] chatter: to_bird_autovpn0 :: ToHost: device 'bird_autovpn0' went down [ 33.625221] chatter: from_bird_autovpn0 :: FromHost: device 'bird_autovpn0' came up [ 33.632897] chatter: to_bird_autovpn0 :: ToHost: device 'bird_autovpn0' came up [ 33.754061] chatter: from_bird_autovpn1 :: FromHost: device 'bird_autovpn1' went down [ 33.761926] chatter: to_bird_autovpn1 :: ToHost: device 'bird_autovpn1' went down [ 33.801235] chatter: from_bird_autovpn1 :: FromHost: device 'bird_autovpn1' came up [ 33.808911] chatter: to_bird_autovpn1 :: ToHost: device 'bird_autovpn1' came up [ 33.914050] chatter: from_bird_misc :: FromHost: device 'bird_misc' went down [ 33.921207] chatter: to_bird_misc :: ToHost: device 'bird_misc' went down [ 33.981218] chatter: from_bird_misc :: FromHost: device 'bird_misc' came up [ 33.988236] chatter: to_bird_misc :: ToHost: device 'bird_misc' came up [ 34.083371] device uplink entered promiscuous mode [ 34.088191] device bird_misc entered promiscuous mode [ 34.123397] device client_vpn entered promiscuous mode [ 34.179000] device anyconnect_vpn entered promiscuous mode [ 34.250057] chatter: from_pimd_lan :: FromHost: device 'pimd-lan' went down [ 34.257028] chatter: to_pimd_lan :: ToHost: device 'pimd-lan' went down [ 34.305200] chatter: from_pimd_lan :: FromHost: device 'pimd-lan' came up [ 34.312021] chatter: to_pimd_lan :: ToHost: device 'pimd-lan' came up [ 34.462042] chatter: from_pimd_vpn :: FromHost: device 'pimd-vpn' went down [ 34.469048] chatter: to_pimd_vpn :: ToHost: device 'pimd-vpn' went down [ 34.501183] chatter: from_pimd_vpn :: FromHost: device 'pimd-vpn' came up [ 34.507993] chatter: to_pimd_vpn :: ToHost: device 'pimd-vpn' came up [ 34.684416] !!!!! {/usr/bin/wired_brain} Resetting ClickController! [ 34.848204] NTKM - ntkm_activate - Activating DP [ 35.848319] nitro_ft- flow intiialized with max flows 16384 and size 524288 [ 35.855410] NTKM - ntkm_check_for_state_change - DP active [ 38.674343] IPv6: ADDRCONF(NETDEV_UP): port2: link is not ready [ 38.796302] IPv6: ADDRCONF(NETDEV_UP): port3: link is not ready [ 39.150478] IPv6: ADDRCONF(NETDEV_UP): port4: link is not ready [ 39.156402] 8021q: adding VLAN 0 to HW filter on device port4 [ 39.510505] IPv6: ADDRCONF(NETDEV_UP): port5: link is not ready [ 39.516458] 8021q: adding VLAN 0 to HW filter on device port5 [ 39.870463] IPv6: ADDRCONF(NETDEV_UP): port6: link is not ready [ 39.876382] 8021q: adding VLAN 0 to HW filter on device port6 [ 40.230466] IPv6: ADDRCONF(NETDEV_UP): port7: link is not ready [ 40.236382] 8021q: adding VLAN 0 to HW filter on device port7 [ 40.358134] IPv6: ADDRCONF(NETDEV_UP): port8: link is not ready [ 40.480016] IPv6: ADDRCONF(NETDEV_UP): port9: link is not ready [ 40.561332] IPv6: ADDRCONF(NETDEV_UP): port10: link is not ready [ 40.643277] IPv6: ADDRCONF(NETDEV_UP): port11: link is not ready [ 40.653375] !!!!! {/usr/bin/wired_brain} open failed for "/click/router_hw_intf/bounce_enabled", error: No such filey [ 45.911774] chatter: nat/from_host_nat_routing :: IP4RouteTableSetReferencePaint: no route for 208.67.220.220 [ 46.328857] chatter: from_linux_test_client :: FromHost: device 'test_client' went down [ 46.336877] chatter: _to_linux_test_client :: ToHost: device 'test_client' went down [ 47.446362] device vlan0 entered promiscuous mode [ 47.451109] device bird entered promiscuous mode [ 49.005484] S80meraki done [ 49.023749] !!!!! {/usr/bin/config_updater} failsafe_mode "value='0' state='4' bootloop='1' mfg='0' rma='0' ignored=" [ 55.090323] chatter: big_acl :: BigACL: skipping undersized restore buffer (buf size: 0) [ 69.279958] IPv6: ADDRCONF(NETDEV_UP): mgmt0: link is not ready [ 69.759967] IPv6: ADDRCONF(NETDEV_UP): port1: link is not ready [ 70.241202] IPv6: ADDRCONF(NETDEV_UP): port2: link is not ready [ 70.722189] IPv6: ADDRCONF(NETDEV_UP): port3: link is not ready [ 71.202907] IPv6: ADDRCONF(NETDEV_UP): port8: link is not ready [ 71.683543] IPv6: ADDRCONF(NETDEV_UP): port9: link is not ready [ 72.085052] IPv6: ADDRCONF(NETDEV_UP): port10: link is not ready [ 72.486807] IPv6: ADDRCONF(NETDEV_UP): port11: link is not ready [ 84.819762] IPv6: ADDRCONF(NETDEV_UP): mgmt0: link is not ready [ 85.095059] error: open /dev/meraki-board-config [ 85.099682] error: open /dev/meraki-board-config [ 85.112311] meraki_watchdog: read error in read_from_fd (/sys/class/net/port1/carrier): Invalid argument [ 85.299676] IPv6: ADDRCONF(NETDEV_UP): port1: link is not ready [ 85.780723] IPv6: ADDRCONF(NETDEV_UP): port2: link is not ready [ 86.261829] IPv6: ADDRCONF(NETDEV_UP): port3: link is not ready [ 86.742479] IPv6: ADDRCONF(NETDEV_UP): port8: link is not ready [ 87.223027] IPv6: ADDRCONF(NETDEV_UP): port9: link is not ready [ 87.624337] IPv6: ADDRCONF(NETDEV_UP): port10: link is not ready [ 88.025913] IPv6: ADDRCONF(NETDEV_UP): port11: link is not ready

COPY HERE THE OPENWRT BOOTLOG
